S8FS-G

Switch Mode Power Supply (15/30/50/100/150/300/600-W Models)

S8FS-G

Superior Basic Performance That Ensures Reliability. Wide Range of Standards Certification and Greater Usability.

Specifications

Power rating 15 W
Output voltage (VDC) 5 V 12 V 15 V 24 V
Efficiency *1 100 VAC input 80% typ. 84% typ. 84% typ. 85% typ.
200 VAC input 80% typ. 84% typ. 84% typ. 86% typ.
230 VAC input 80% typ. 84% typ. 84% typ. 86% typ.
Input Voltage range *1 Single phase, 85 to 264 VAC, 80 to 370 VDC
Frequency *1 50/60 Hz (47 to 450 Hz)
Current *1 100 VAC input 0.32 A typ.
200 VAC input 0.2 A typ.
Power factor *1 ---
Leakage
current *1
100 VAC input 0.5 mA max.
200 VAC input 1 mA max.
Inrush
current *1 (for
a cold start at
25°C)
100 VAC input 14 A typ.
200 VAC input 28 A typ.
Output Rated Output Current 3 A 1.3 A 1 A 0.65 A
Voltage adjustment range *1 -10% to 15% (with V.ADJ)
Ripple & Noise
voltage *1
100 to 240
VAC input
40 mVp-p max. 40 mVp-p max. 40 mVp-p max. 60 mVp-p max.
Input variation influence *1 0.5% max.
Load variation influence *1 1.0% max.
Temperature
variation
influence
100 to 240
VAC input
0.05%/°C max.
Startup time *1 100 VAC input 1,000 ms max.
200 VAC input 1,000 ms max.
Hold time *1 100 VAC input 15 ms typ. 14 ms typ. 15 ms typ. 15 ms typ.
200 VAC input 75 ms typ. 70 ms typ. 75 ms typ. 70 ms typ.
Additional
functions
Overload protection Yes, automatic reset
Overvoltage protection *1 Yes, 120% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection No
Series operation Yes (For up to two Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control No
Output indicator Yes (LED: Green)
Insulation Withstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals)
current cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Environ-
ment
Ambient operating
temperature
-20 to 70°C (Derating is required according to the temperature.)
(with no condensation or icing)
Storage temperature -25 to 75°C (with no condensation or icing)
Ambient operating humidity 90% max. (Storage humidity: 90% max.)
Vibration resistance 10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y,
and Z directions
Shock resistance 150 m/s2, 3 times each in ±X, ±Y, ±Z directions
Reliability MTBF 135,000 hrs min.
Life expectancy *1 10 years min.
Con-
struction
Dimensions (W×H×D) Refer to Dimensions.
Weight 250 g
Cooling fan No
Degree of protection ---
Standards Harmonic current emissions Conforms to EN 61000-3-2
EMI *1 Conducted
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
Radiated
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
EMS Conforms to EN 61204-3 high severity levels
Safety Standards *2 UL 508 (Listing, excluding models with connector option)
UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2)
CSA C22.2 No.107.1 (excluding models with connector option)
CSA C22.2 No.62368-1 (excluding models with connector option)
EN 62477-1 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2)
EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
RCM (EN61000-6-4)
Marine Standards No
SEMI Conforms to F47-0706 (200 VAC input)

*1. Refer to Ratings, Characteristics, and Functions below.
*2. Refer to Standard Compliance below.

Power rating 30 W
Output voltage (VDC) 5 V 12 V 15 V 24 V
Efficiency *1 100 VAC input 81% typ. 84% typ. 86% typ. 86% typ.
200 VAC input 81% typ. 86% typ. 88% typ. 88% typ.
230 VAC input 81% typ. 86% typ. 88% typ. 89% typ.
Input Voltage range *1 Single phase, 85 to 264 VAC, 80 to 370 VDC
Frequency *1 50/60 Hz (47 to 450 Hz)
Current *1 100 VAC input 0.72 A typ.
200 VAC input 0.43 A typ.
Power factor *1 ---
Leakage
current *1
100 VAC input 0.5 mA max.
200 VAC input 1 mA max.
Inrush
current *1 (for
a cold start at
25°C)
100 VAC input 14 A typ.
200 VAC input 28 A typ.
Output Rated Output Current 6 A 3 A 2.4 A 1.5 A
Voltage adjustment range *1 -10% to 15% (with V.ADJ)
Ripple & Noise
voltage *1
100 to 240
VAC input
50 mVp-p max. 60 mVp-p max. 50 mVp-p max. 60 mVp-p max.
Input variation influence *1 0.5% max.
Load variation influence *1 1.0% max.
Temperature
variation
influence
100 to 240
VAC input
0.05%/°C max.
Startup time *1 100 VAC input 1,000 ms max.
200 VAC input 1,000 ms max.
Hold time *1 100 VAC input 11 ms typ. 10 ms typ. 11 ms typ. 10 ms typ.
200 VAC input 60 ms typ. 50 ms typ. 50 ms typ. 55 ms typ.
Additional
functions
Overload protection Yes, automatic reset
Overvoltage protection *1 Yes, 120% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection No
Series operation Yes (For up to two Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control No
Output indicator Yes (LED: Green)
Insulation Withstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals)
current cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Environ-
ment
Ambient operating
temperature
-20 to 70°C (Derating is required according to the temperature.) (with
no condensation or icing)
Storage temperature -25 to 75°C (with no condensation or icing)
Ambient operating humidity 90% max. (Storage humidity: 90% max.)
Vibration resistance 10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y,
and Z directions
Shock resistance 150 m/s2, 3 times each in ±X, ±Y, ±Z directions
Reliability MTBF 135,000 hrs min.
Life expectancy *1 10 years min.
Con-
struction
Dimensions (W×H×D) Refer to Dimensions.
Weight 250 g
Cooling fan No
Degree of protection ---
Standards Harmonic current emissions Conforms to EN 61000-3-2
EMI *1 Conducted
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
Radiated
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
EMS Conforms to EN 61204-3 high severity levels
Safety Standards *2 UL 508 (Listing, excluding models with connector option)
UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2)
CSA C22.2 No.107.1 (excluding models with connector option)
CSA C22.2 No.62368-1 (excluding models with connector option)
EN 62477-1 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2)
EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
RCM (EN61000-6-4)
Marine Standards No
SEMI Conforms to F47-0706 (200 VAC input)

*1. Refer to Ratings, Characteristics, and Functions below.
*2. Refer to Standard Compliance below.

Power rating 50 W
Output voltage (VDC) 5 V 12 V 15 V 24 V
Efficiency *1 100 VAC input 81% typ. 84% typ. 86% typ. 86% typ.
200 VAC input 82% typ. 86% typ. 88% typ. 89% typ.
230 VAC input 82% typ. 86% typ. 88% typ. 89% typ.
Input Voltage range *1 Single phase, 85 to 264 VAC, 80 to 370 VDC
Frequency *1 50/60 Hz (47 to 450 Hz)
Current *1 100 VAC input 1.1 A typ.
200 VAC input 0.62 A typ.
Power factor *1 ---
Leakage
current *1
100 VAC input 0.5 mA max.
200 VAC input 1 mA max.
Inrush
current *1 (for
a cold start at
25°C)
100 VAC input 14 A typ.
200 VAC input 28 A typ.
Output Rated Output Current 8 A 4.3 A 3.5 A 2.2A
Voltage adjustment range *1 -10% to 15% (with V.ADJ)
Ripple & Noise
voltage *1
100 to 240
VAC input
40 mVp-p max. 40 mVp-p max. 40 mVp-p max. 60 mVp-p max.
Input variation influence *1 0.5% max.
Load variation influence *1 1.0% max.
Temperature
variation
influence
100 to 240
VAC input
0.05%/°C max.
Startup time *1 100 VAC input 1,000 ms max.
200 VAC input 1,000 ms max.
Hold time *1 100 VAC input 14 ms typ. 11 ms typ. 10 ms typ. 10 ms typ.
200 VAC input 75 ms typ. 60 ms typ. 60 ms typ. 55 ms typ.
Additional
functions
Overload protection Yes, automatic reset
Overvoltage protection *1 Yes, 120% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection No
Series operation Yes (For up to two Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control No
Output indicator Yes (LED: Green)
Insulation Withstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals)
current cutoff 20 mA
500 VAC for 1 min. (between all output terminals and RC terminals)
current cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Environ-
ment
Ambient operating
temperature
-20 to 70°C (Derating is required according to the temperature.) (with
no condensation or icing)
Storage temperature -25 to 75°C (with no condensation or icing)
Ambient operating humidity 90% max. (Storage humidity: 90% max.)
Vibration resistance 10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y,
and Z directions
Shock resistance 150 m/s2, 3 times each in ±X, ±Y, ±Z directions
Reliability MTBF 135,000 hrs min.
Life expectancy *1 10 years min.
Con-
struction
Dimensions (W×H×D) Refer to Dimensions.
Weight 300 g
Cooling fan No
Degree of protection ---
Standards Harmonic current emissions Conforms to EN 61000-3-2
EMI *1 Conducted
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
Radiated
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
EMS Conforms to EN 61204-3 high severity levels
Safety Standards *2 UL 508 (Listing, excluding models with connector option)
UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2)
CSA C22.2 No.107.1 (excluding models with connector option)
CSA C22.2 No.62368-1 (excluding models with connector option)
EN 62477-1
(OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2)
EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
RCM (EN61000-6-4)
Marine Standards No
SEMI Conforms to F47-0706 (200 VAC input)

*1. Refer to Ratings, Characteristics, and Functions below.
*2. Refer to Standard Compliance below.

Power rating 100 W
Output voltage (VDC) 5 V 12 V 15 V 24 V
Efficiency *1 100 VAC input 79% typ. 84% typ. 85% typ. 87% typ.
200 VAC input 81% typ. 86% typ. 87% typ. 89% typ.
230 VAC input 81% typ. 86% typ. 87% typ. 89% typ.
Input Voltage range *1 Single phase, 85 to 264 VAC, 80 to 370 VDC
Frequency *1 50/60 Hz (47 to 450 Hz)
Current *1 100 VAC input 2.1 A typ.
200 VAC input 1.2 A typ.
Power factor *1 ---
Leakage
current *1
100 VAC input 0.5 mA max.
200 VAC input 1 mA max.
Inrush
current *1 (for
a cold start at
25°C)
100 VAC input 14 A typ.
200 VAC input 28 A typ.
Output Rated Output Current 16 A 8.5 A 7 A 4.5 A
Voltage adjustment range *1 -10% to 15% (with V.ADJ)
Ripple & Noise
voltage *1
100 to 240
VAC input
70 mVp-p max. 90 mVp-p max. 100 mVp-p max. 80 mVp-p max.
Input variation influence *1 0.5% max.
Load variation influence *1 1.0% max.
Temperature
variation
influence
100 to 240
VAC input
0.05%/°C max.
Startup time *1 100 VAC input 1,000 ms max.
200 VAC input 1,000 ms max.
Hold time *1 100 VAC input 12 ms typ. 11 ms typ. 11 ms typ. 10 ms typ.
200 VAC input 70 ms typ. 55 ms typ. 55 ms typ. 55 ms typ.
Additional
functions
Overload protection Yes, automatic reset
Overvoltage protection *1 Yes, 120% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection No
Series operation Yes (For up to two Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control Yes (Only for models with remote control option)
Output indicator Yes (LED: Green)
Insulation Withstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals)
current cutoff 20 mA
Only Remote control
500 VAC for 1 min. (between all output terminals and RC terminals)
current cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Environ-
ment
Ambient operating
temperature
-20 to 70°C (Derating is required according to the temperature. Refer
to Engineering Data) (with no condensation or icing)
Storage temperature -25 to 75°C (with no condensation or icing)
Ambient operating humidity 90% max. (Storage humidity: 90% max.)
Vibration resistance 10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y,
and Z directions
Shock resistance 150 m/s2, 3 times each in ±X, ±Y, ±Z directions
Reliability MTBF 135,000 hrs min.
Life expectancy *1 10 years min.
Con-
struction
Dimensions (W×H×D) Refer to Dimensions.
Weight 400 g
Cooling fan No
Degree of protection ---
Standards Harmonic current emissions Conforms to EN 61000-3-2
EMI *1 Conducted
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
Radiated
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
EMS Conforms to EN 61204-3 high severity levels
Safety Standards *2 UL 508 (Listing, excluding models with connector option or remote control
option)
UL 508 (Recognition, models with remote control option)
UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2)
CSA C22.2 No.107.1 (excluding models with connector option or remote
control option)
CSA C22.2 No.62368-1 (excluding models with connector option or
remote control option)
EN 62477-1 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2)
EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
RCM (EN61000-6-4)
Marine Standards No
SEMI SEMI Conforms to F47-0706 (200 VAC input)

*1. Refer to Ratings, Characteristics, and Functions below.
*2. Refer to Standard Compliance below.

Power rating 150 W
Output voltage (VDC) 5 V 12 V 15 V 24 V 48 V
Efficiency *1 100 VAC input 78% typ. 84% typ. 85% typ. 87% typ. 85% typ.
200 VAC input 81% typ. 87% typ. 88% typ. 89% typ. 88% typ.
230 VAC input 81% typ. 87% typ. 88% typ. 90% typ. 88% typ.
Input Voltage range *1 Single phase, 85 to 264 VAC, 80 to 370 VDC
Frequency *1 50 /60 Hz (47 to 450 Hz)
Current *1 100 VAC input 3 A typ.
200 VAC input 1.8 A typ.
Power factor *1 ---
Leakage
current *1
100 VAC input 0.5 mA max.
200 VAC input 1 mA max.
Inrush
current *1 (for
a cold start at
25°C)
100 VAC input 14 A typ.
200 VAC input 28 A typ.
Output Rated Output Current 21 A 13 A 10 A 6.5 A 3.3 A
Voltage adjustment range *1 -10% to 15% (with V.ADJ)
Ripple & Noise
voltage *1
100 to 240
VAC input
100 mVp-p
max.
110 mVp-p
max.
80 mVp-p
max.
110 mVp-p
max.
120 mVp-p
max.
Input variation influence *1 0.5% max.
Load variation influence *1 1.0% max.
Temperature
variation
influence
100 to 240
VAC input
0.05%/°C max.
Startup time *1 100 VAC input 1,000 ms max.
200 VAC input 1,000 ms max.
Hold time *1 100 VAC input 14 ms typ. 10 ms typ. 10 ms typ. 10 ms typ. 11 ms typ.
200 VAC input 80 ms typ. 55 ms typ. 55 ms typ. 55 ms typ. 55 ms typ.
Additional
functions
Overload protection Yes, automatic reset
Overvoltage protection *1 Yes, 120% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection No
Series operation Yes (For up to two Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control Yes (Only for models with remote control option)
Output indicator Yes (LED: Green)
Insulation Withstand voltage 3 kVAC for 1 min.(between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min.(between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min.(between all output terminals and PE terminals)
current cutoff 20 mA
Only Remote control
500 VAC for 1 min.(between all output terminals and RC terminals)
current cutoff 20 mA
Insulation resistance 100 MΩ min.(between all output terminals and all input terminals/PE
terminals) at 500 VDC
Environ-
ment
Ambient operating
temperature
-20 to 70°C (Derating is required according to the temperature. Refer
to Engineering Data) (with no condensation or icing)
Storage temperature -25 to 75°C (with no condensation or icing)
Ambient operating humidity 90% max. (Storage humidity: 90% max.)
Vibration resistance 10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y,
and Z directions
Shock resistance 150 m/s2, 3 times each in ±X, ±Y, ±Z directions
Reliability MTBF 135,000 hrs min.
Life expectancy *1 10 years min.
Con-
struction
Dimensions (W×H×D) Refer to Dimensions on page 22.
Weight 500 g
Cooling fan No
Degree of protection ---
Standards Harmonic current emissions Conforms to EN 61000-3-2 (Applicable at 80% or less of the rated load.)
EMI *1 Conducted
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
Radiated
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
EMS Conforms to EN 61204-3 high severity levels
Safety Standards *2 UL 508 (Listing, excluding models with connector option or remote control
option)
UL 508 (Recognition, models with remote control option)
UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2)
CSA C22.2 No.107.1 (excluding models with connector option or remote
control option)
CSA C22.2 No.62368-1 (excluding models with connector option or
remote control option)
EN 62477-1 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2)
EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
RCM (EN61000-6-4)
BIS (IS 13252 (Part 1)/IEC 60950-1) (Output voltage 24 V type only.
However, excluding S8FSG15024C-500 and S8FS-G15024CD-500.)
Marine Standards No
SEMI Conforms to F47-0706 (200 VAC input)

*1. Refer to Ratings, Characteristics, and Functions below.
*2. Refer to Standard Compliance below.

Power rating 300 W
Output voltage (VDC) 12 V 15 V 24 V 48 V
Efficiency *1 100 VAC input 81% typ. 81% typ. 82% typ. 82% typ.
200 VAC input 85% typ. 85% typ. 87% typ. 87% typ.
230 VAC input 85% typ. 86% typ. 87% typ. 87% typ.
Input Voltage range *1 Single phase, 85 to 264 VAC, 120 to 370 VDC
Frequency *1 50/60 Hz (47 to 63 Hz)
Current *1 100 VAC input 4.2 A typ.
200 VAC input 2.1 A typ.
Power factor *1 0.9 min.
Leakage
current *1
100 VAC input 0.5 mA max.
200 VAC input 1 mA max.
Inrush
current *1 (for
a cold start at
25°C)
100 VAC input 14 A typ.
200 VAC input 28 A typ.
Output Rated Output Current 25 A 20 A 14 A 7 A
Voltage adjustment range *1 -10% to 15% (with V.ADJ)
Ripple & Noise
voltage *1
100 to 240
VAC input
140 mVp-p max. 270 mVp-p max. 150 mVp-p max. 330 mVp-p max.
Input variation influence *1 0.5% max.
Load variation influence *1 1.0% max.
Temperature
variation
influence
100 to 240
VAC input
0.05%/°C max.
Startup time *1 100 VAC input 1,000 ms max.
200 VAC input 1,000 ms max.
Hold time *1 100 VAC input 30 ms typ. 30 ms typ. 30 ms typ.
40 ms typ.
(Extended hold
time type)
30 ms typ.
200 VAC input 30 ms typ. 25 ms typ. 30 ms typ.
40 ms typ.
(Extended hold
time type)
30 ms typ.
Additional
functions
Overload protection Yes, automatic reset
Overvoltage protection *1 Yes, 120% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection Yes, power shut off (shut off the input voltage and turn on the input
again)
Series operation Yes (For up to two Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control Yes (Only for models with remote control option)
Output indicator Yes (LED: Green)
Insulation Withstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals)
current cutoff 20 mA
Only Remote control
500 VAC for 1 min. (between all output terminals and RC terminals)
current cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Environ-
ment
Ambient operating
temperature
-20 to 70°C (Derating is required according to the temperature.) (with
no condensation or icing)
Storage temperature -25 to 75°C (with no condensation or icing)
Ambient operating humidity 90% max. (Storage humidity: 90% max.)
Vibration resistance 10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y,
and Z directions
Shock resistance 150 m/s2, 3 times each in ±X, ±Y, ±Z directions
Reliability MTBF 135,000 hrs min.
Life expectancy *1 10 years min.
Con-
struction
Dimensions (W×H×D) Refer to Dimensions.
Weight 700 g
Cooling fan Yes
Degree of protection ---
Standards Harmonic current emissions Conforms to EN 61000-3-2
EMI *1 Conducted
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
Radiated
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
EMS Conforms to EN 61204-3 high severity levels
Safety Standards *2 UL 508 (Listing, excluding models with remote control option)
UL 508 (Recognition, models with remote control option)
UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2)
CSA C22.2 No.107.1 (excluding models with remote control option)
CSA C22.2 No.62368-1 (excluding models with remote control option)
EN 62477-1 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2)
EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
RCM (EN61000-6-4)
BIS (IS 13252 (Part 1)/IEC 60950-1) (Output voltage 24 V type only.
However, excluding S8FSG30024C-500 and S8FS-G30024CD-500.)
Marine Standards No
SEMI Conforms to F47-0706 (200 VAC input)

*1. Refer to Ratings, Characteristics, and Functions below.
*2. Refer to Standard Compliance below.

Power rating 600 W
Output voltage (VDC) 12 V 15 V 24 V 48 V
Efficiency *1 100 VAC input 84% typ. 84% typ. 85% typ. 88% typ.
200 VAC input 88% typ. 88% typ. 89% typ. 92% typ.
230 VAC input 88% typ. 88% typ. 90% typ. 92% typ.
Input Voltage range *1 Single phase, 85 to 264 VAC, 120 to 350 VDC
Frequency *1 50/60 Hz (47 to 63 Hz)
Current *1 100 VAC input 7.7 A typ.
200 VAC input 3.8 A typ.
Power factor *1 0.9 min.
Leakage
current *1
100 VAC input 0.5 mA max.
200 VAC input 1 mA max.
Inrush
current *1 (for
a cold start at
25°C)
100 VAC input 14 A typ.
200 VAC input 28 A typ.
Output Rated Output Current 50 A 40 A 27 A 13 A
Voltage adjustment range *1 -10% to 15% (with V.ADJ)
Ripple & Noise
voltage *1
100 to 240
VAC input
170 mVp-p max. 170 mVp-p max. 280 mVp-p max. 340 mVp-p max.
Input variation influence *1 0.5% max.
Load variation influence *1 1.0% max.
Temperature
variation
influence
100 to 240
VAC input
0.05%/°C max.
Startup time *1 100 VAC input 1,000 ms max.
200 VAC input 1,000 ms max.
Hold time *1 100 VAC input 30 ms typ. 25 ms typ. 30 ms typ.
40 ms typ.
(Extended hold
time type)
30 ms typ.
200 VAC input 30 ms typ. 25 ms typ. 30 ms typ.
40 ms typ.
(Extended hold
time type)
30 ms typ.
Additional
functions
Overload protection Yes, automatic reset
Overvoltage protection *1 Yes, 120% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection Yes, power shut off (shut off the input voltage and turn on the input again)
Series operation Yes (For up to two Power Supplies, external diodes are required.)
Parallel operation Yes (up to five Power Supplies, S8FS-G60024 (models with parallel
operation option) only).
Remote sensing No
Remote control Yes (Only Remote control)
Output indicator Yes (LED: Green)
Insulation Withstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals)
current cutoff 20 mA
Only Remote control
500 VAC for 1 min. (between all output terminals and RC terminals)
current cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Environ-
ment
Ambient operating
temperature
-20 to 70°C (Derating is required according to the temperature.) (with
no condensation or icing)
Storage temperature -25 to 75°C (with no condensation or icing)
Ambient operating humidity 90% max. (Storage humidity: 90% max.)
Vibration resistance 10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y,
and Z directions
Shock resistance 150 m/s2, 3 times each in ±X, ±Y, ±Z directions
Reliability MTBF 135,000 hrs min.
Life expectancy *1 10 years min.
Con-
struction
Dimensions (W×H×D) Refer to Dimensions.
Weight 1,050 g
Cooling fan Yes
Degree of protection ---
Standards Harmonic current emissions Conforms to EN 61000-3-2
EMI *1 Conducted
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
Radiated
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
EMS Conforms to EN 61204-3 high severity levels
Safety Standards *2 UL 508 (Listing, excluding models with remote control option)
UL 508 (Recognition, models with remote control option)
UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2)
CSA C22.2 No.107.1 (excluding models with remote control option)
CSA C22.2 No.62368-1 (excluding models with remote control option)
EN 62477-1 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2)
EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
RCM (EN61000-6-4)
BIS (IS 13252 (Part 1)/IEC 60950-1) (Output voltage 24 V type only.
However, excluding S8FSG60024C-500 and S8FS-G60024CD-500.)
Marine Standards No
SEMI Conforms to F47-0706 (200 VAC input)

*1. Refer to Ratings, Characteristics, and Functions below.
*2. Refer to Standard Compliance below.

Ratings, Characteristics, and Functions

Efficiency The value is when both rated output voltage and rated output current are
satisfied.
Input Voltage range Do not use an inverter output for the Power Supply. Inverters with an
output frequency of 50/60 Hz are available, but the rise in the internal
temperature of the Power Supply may result in ignition or burning.
Frequency
Current The value is when both rated output voltage and rated output current are
satisfied.
Power factor The value is when both rated output voltage and rated output current are
satisfied.
Leakage current The values are determined according to the Act on Power Supply Safety of
Electrical Appliances and Materials.
Inrush current
(for a cold start at 25°C)
For a cold start at 25°C. Refer to the following figure.
Output Voltage adjustment range If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by
more than +15% of the voltage adjustment range. When adjusting the output
voltage, confirm the actual output voltage from the Power Supply and be
sure that the load is not damaged.
Ripple & Noise voltage The value is when both rated output voltage and rated output current are
satisfied.
A characteristic when the ambient operating temperature is 25°C.
Input variation influence This is the maximum variation in the output voltage when the input voltage
is gradually changed within the allowable input voltage range at the rated
output voltage and rated output current.
Load variation influence This is the value when the output current is changed from 0 A to the rated
output current while the input voltage is within the allowable input voltage.
Startup time The value is when both rated output voltage and rated output current are
satisfied.
For a cold start at 25°C. Refer to the following figure.
Hold time The value is when both rated output voltage and rated output current are
satisfied.
At 25°C. Refer to the following figure.
Additional
functions
Overvoltage protection Refer to Overvoltage Protection on Data Sheet for the time when input
voltage shuts off and input turns on again.
Reliability Life expectancy Refer to Recommended Replacement Periods and Periodic Replacement for
Preventive Maintenance on Data Sheet for details.
Standards EMI Conducted Emissions The 150-W and higher models conform to Class B when an aluminum plate
is set under the Power Supply.
Radiated Emissions

Standard Compliance

• The input voltage range for compliance with EC Directives and other safety standards (UL, EN, etc.) is 90 to 264 VAC.
• EN/IEC 61558-2-16
To comply with EN/IEC 60204-1 (Machine Safety), a transformer is required in the control circuit. If, however, a Power Supply that has a built-in transformer that complies with EN/IEC 6155-8-2-16 is used, an external transformer is not required.
• Safety standard targets during a DC input *
During a DC input, UL 62368-1, cUR (CSA C22.2 No. 62368-1), EN/IEC 62368-1, EN 62477-1, EN/IEC 61558-2-16, and EN/IEC 60204-1 are safety standard targets. (However, the input voltage range is 120 to 320 VDC. The safety standards during DC input are not acquired for the S8FS-G60048[].)
It is possible to comply with the safety standards by connecting a UL-authenticated fuse. Select a UL-authenticated fuse that satisfies the following conditions:
     S8FS-G015[][]/030[][] (320 VDC or above, 3 A)
     S8FS-G050[][] (320 VDC or above, 4 A)
     S8FS-G100[][] (320 VDC or above, 8 A)
     S8FS-G150[][] (320 VDC or above, 10 A)
     S8FS-G300[][] (320 VDC or above, 12 A)
     S8FS-G600[][] (320 VDC or above, 20 A)
• To comply with the PELV output of the EN/IEC 60204-1, ground the output negative side (-V) to PE. *
* Applicable to products produced from May 2018

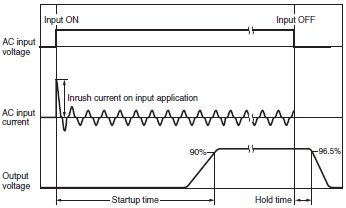

Inrush Current, Startup Time, Output Hold Time

S8FS-G Specifications 17

Note:
The total inrush current of all of the Power Supplies will flow for parallel operation or backup operation.
Sufficiently check the fusing characteristics of fuses and the operating characteristics of breakers and select fuses and breakers so that external fuses will not burn out or breakers will not operate due to inrush current.

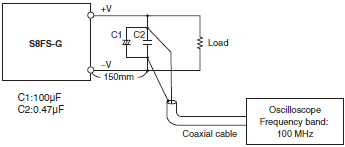

Ripple Noise Voltage

The specified standard for the ripple voltage noise was measured with a measurement circuit that is based on JEITA standard RC-9131A.

S8FS-G Specifications 18
