E52 (For Packing Machine)

Temperature Sensors for Packaging Machines

E52 (For Packing Machine)

Accurately Measure Seal Temperature. Temperature Sensors for Packaging Machines.

Temperature Sensors for Packaging Machines

Classification Description Model and
appearance
Temper-
ature
range
Element
type
Con-
ductor
type
Class Protective
tubing
material
Terminal
type
Special models
for packaging
machines
Sheathed
thermocouple
E52-CA[]A[]
D=1 S[]
3670_lu_1_1
0 to
650°C
K (CA) Grounded
type
2
(0.75)
ASTM316L Exposed
lead wires

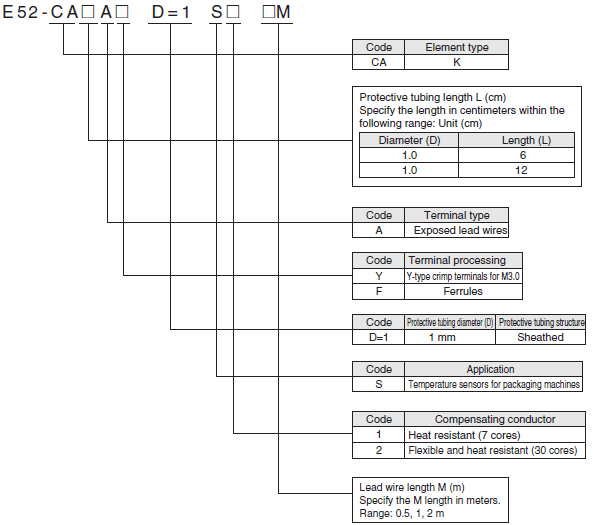

Model Number Legend

The type of protective tubing length, and lead length can be specified as shown below.

E52 (For Packing Machine) Lineup 3

Example:
Element: K, protective tubing length: 12 cm, exposed leads, Y-type crimp terminals for M3.0, protective tubing diameter: 1 mm, flexible and heat resistive, lead length: 2 m
E52-CA12AY D=1 S2 2M

List of Models

Y-type crimp terminals for M3.0

Terminal
type
Protective
tubing
diameter D
(mm)
Protective
tubing
length L
(cm)
Lead wire
type
Lead wire length M (m)
0.51
Model
Exposed-
lead
Models
1 dia.6Heat resistiveE52-CA6AY D=1 S1 0.5ME52-CA6AY D=1 S1 1M
Flexible
Heat resistive
---E52-CA6AY D=1 S2 1M
12Heat resistiveE52-CA12AY D=1 S1 0.5ME52-CA12AY D=1 S1 1M
Flexible
Heat resistive
---E52-CA12AY D=1 S2 1M

Terminal typeProtective tubing
diameter D
(mm)
Protective tubing
length L
(cm)
Lead wire typeLead wire length M (m)
2
Model
Exposed-lead
Models
1 dia.6Heat resistive---
Flexible Heat resistiveE52-CA6AY D=1 S2 2M
12Heat resistive---
Flexible Heat resistiveE52-CA12AY D=1 S2 2M

Ferrules

Terminal
type
Protective
tubing
diameter D
(mm)
Protective
tubing
length L
(cm)
Lead wire
type
Lead wire length M (m)
0.5 1
Model
Exposed-
lead
Models
1 dia. 6 Heat resistive E52-CA6AF D=1 S1 0.5M E52-CA6AF D=1 S1 1M
Flexible
Heat resistive
--- E52-CA6AF D=1 S2 1M
12 Heat resistive E52-CA12AF D=1 S1 0.5M E52-CA12AF D=1 S1 1M
Flexible
Heat resistive
--- E52-CA12AF D=1 S2 1M

Terminal type Protective tubing
diameter D
(mm)
Protective tubing
length L
(cm)
Lead wire type Lead wire length M (m)
2
Model
Exposed-lead
Models
1 dia. 6 Heat resistive ---
Flexible Heat resistive E52-CA6AF D=1 S2 2M
12 Heat resistive ---
Flexible Heat resistive E52-CA12AF D=1 S2 2M
