D5SN

Contact Displacement Sensor

D5SN

Five Types of Sensor for Use in a Wide Range of Environments

(Unit: mm)

Sensor

Note: The dimensions in the following diagrams are for when the plunger is in the released position.

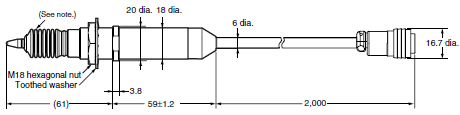

D5SN-S01

D5SN Dimensions 2

Note: Material of rubber boot: Fluorine rubber

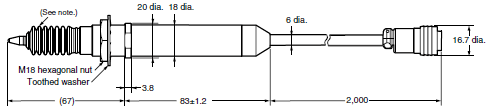

D5SN-S04
D5SN-S04-L

D5SN Dimensions 4

Note:
Material of rubber boot
D5SN-S04: Fluorine rubber
D5SN-S04-L: Silicon rubber

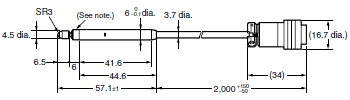

D5SN-M05

D5SN Dimensions 6

Note: Material of rubber boot: NBR

D5SN-M10

D5SN Dimensions 8

Note: Material of rubber boot: NBR

Panel Cutout Dimensions

D5SN Dimensions 10

Amplifier

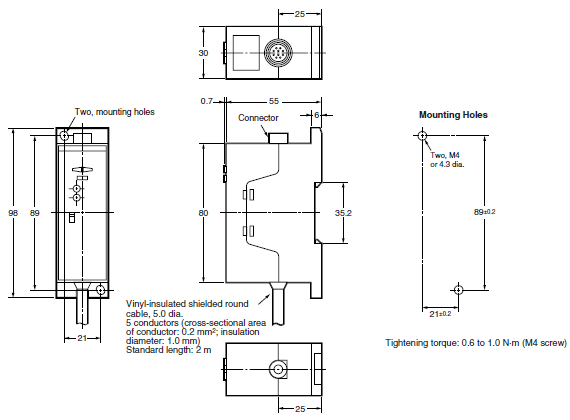

D5SN-A01

D5SN Dimensions 12
