Guard Lock Safety-door Switch

D4NL

Best-selling Guard Lock Safety-door Switch Available in Several Compact, Multi-contact Models

(Unit: mm)

Switches

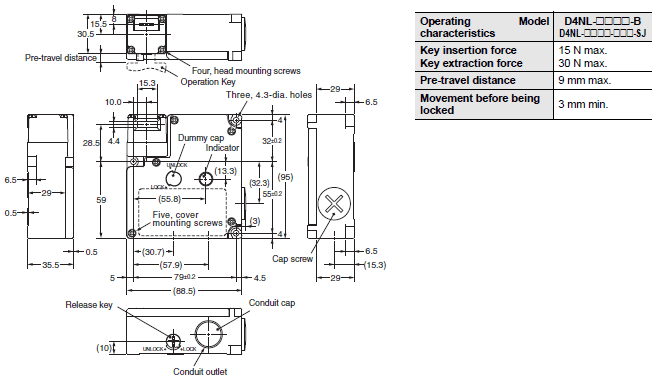

D4NL-[][][][]-B
D4NL-[][][][]-[][][]-SJ

D4NL Dimensions 2

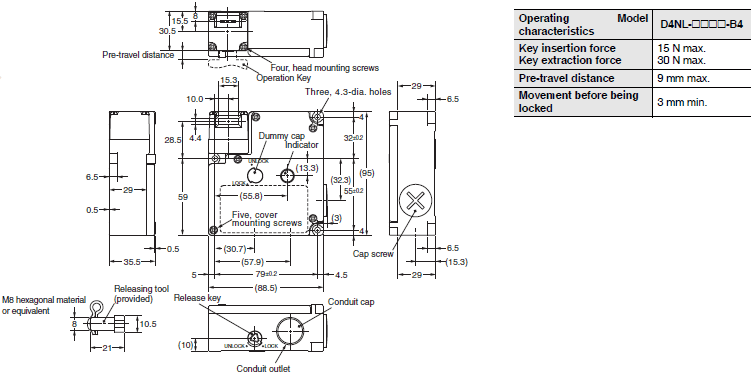

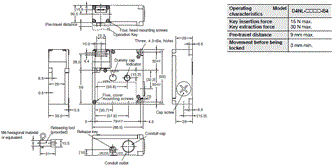

D4NL-[][][][]-B4

D4NL Dimensions 3

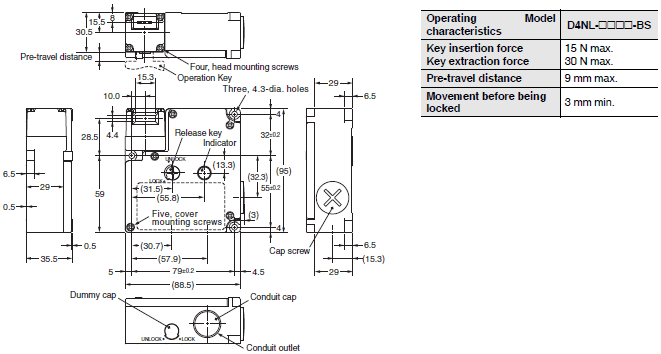

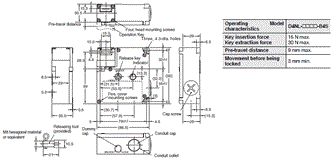

D4NL-[][][][]-BS

D4NL Dimensions 4

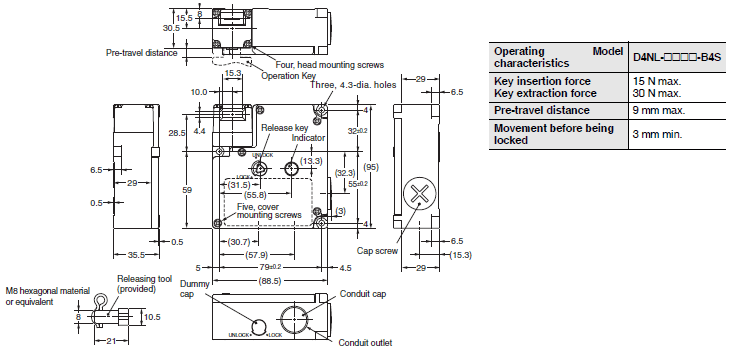

D4NL-[][][][]-B4S

D4NL Dimensions 5

Note: 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
           2. There are fluctuations in the contact ON/OFF timing for Switches with multiple poles (2NC, 2NC/1NO, or 3NC).
                Confirm performance before application.

Operation Keys

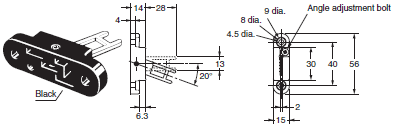

D4DS-K1

D4NL Dimensions 8

D4DS-K2

D4NL Dimensions 9

D4DS-K3

D4NL Dimensions 10

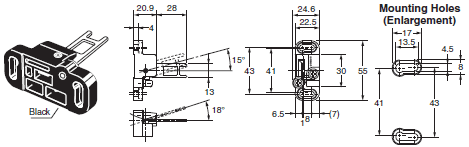

D4DS-K5

D4NL Dimensions 11

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

With Operation Key Inserted

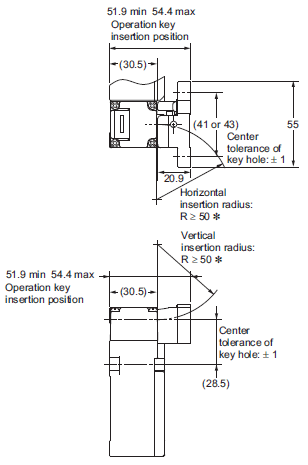

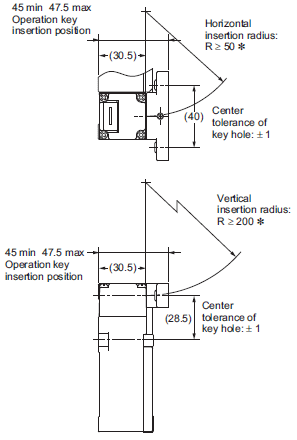

D4NL + D4DS-K1
(with Front-inserted Operation Key)

D4NL Dimensions 14

D4NL + D4DS-K1
(with Top-inserted Operation Key)

D4NL Dimensions 15

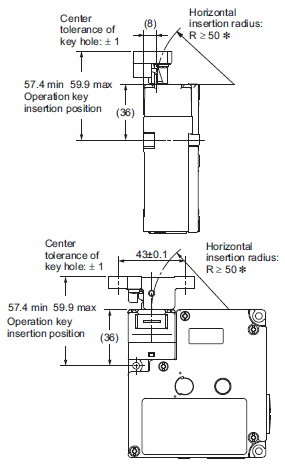

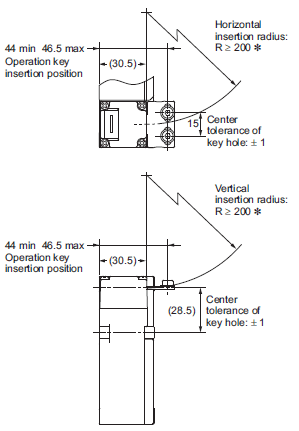

D4NL + D4DS-K2
(with Front-inserted Operation Key)

D4NL Dimensions 16

D4NL + D4DS-K2
(with Top-inserted Operation Key)

D4NL Dimensions 17

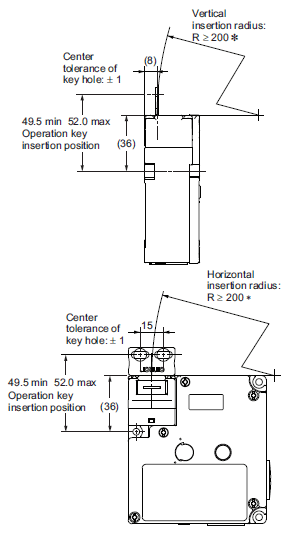

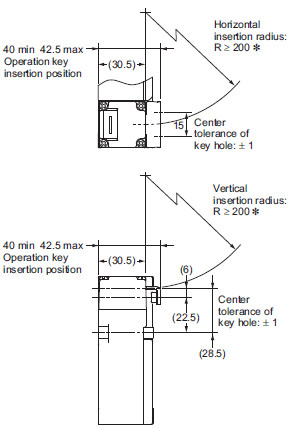

D4NL + D4DS-K3
(with Front-inserted Operation Key)

D4NL Dimensions 18

D4NL + D4DS-K3
(with Top-inserted Operation Key)

D4NL Dimensions 19

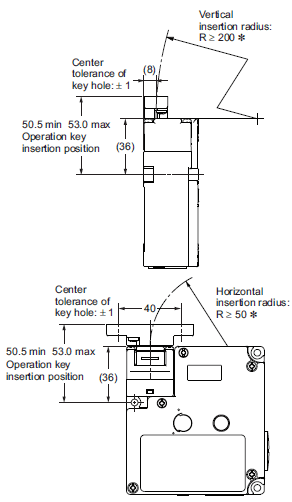

D4NL + D4DS-K5
(with Front-inserted Operation Key)

D4NL Dimensions 20

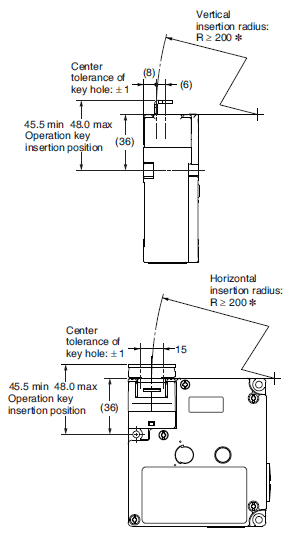

D4NL + D4DS-K5
(with Top-inserted Operation Key)

D4NL Dimensions 21

* Insertion radii apply when the rotational center of the Operation Key is in line with a line extending from the front or top Head surface.
