D4NS, D4NS-SK

Safety-door Switch

D4NS, D4NS-SK

Multi-contact, Labor-saving, Environment-friendly, Next-generation Safety-door Switch

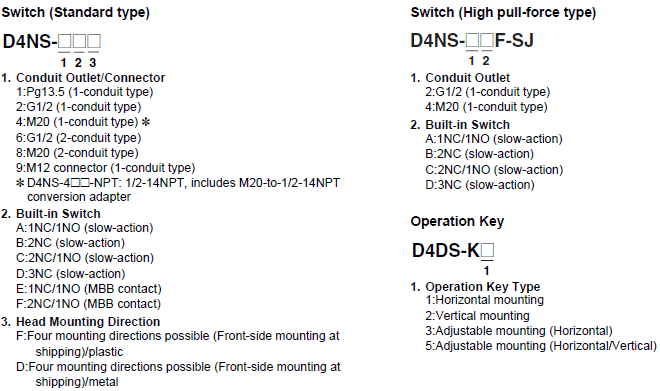

Switches (Operation Keys are sold separately.)

Models with certified direct opening contacts.
Consult with your OMRON representative when ordering any models that are not listed in this table.

Type Contact configuration Conduit outlet/
Connector
Model
1-Conduit type Slow-action 1NC/1NO Pg13.5 D4NS-1AF *
G1/2 D4NS-2AF *
M20 D4NS-4AF
2NC Pg13.5 D4NS-1BF *
G1/2 D4NS-2BF *
M20 D4NS-4BF
2NC/1NO Pg13.5 D4NS-1CF *
G1/2 D4NS-2CF *
M20 D4NS-4CF
3NC Pg13.5 D4NS-1DF *
G1/2 D4NS-2DF *
M20 D4NS-4DF
Slow-action MBB contact 1NC/1NO Pg13.5 D4NS-1EF
G1/2 D4NS-2EF
M20 D4NS-4EF
2NC/1NO Pg13.5 D4NS-1FF
G1/2 D4NS-2FF
M20 D4NS-4FF
2-Conduit type Slow-action 1NC/1NO G1/2 D4NS-6AF
M20 D4NS-8AF
2NC G1/2 D4NS-6BF
M20 D4NS-8BF
2NC/1NO G1/2 D4NS-6CF
M20 D4NS-8CF
3NC G1/2 D4NS-6DF
M20 D4NS-8DF
Slow-action MBB contact 1NC/1NO G1/2 D4NS-6EF
M20 D4NS-8EF
2NC/1NO G1/2 D4NS-6FF
M20 D4NS-8FF
1-Conduit type,
with connector
Slow-action 1NC/1NO M12 connector D4NS-9AF
2NC D4NS-9BF
Slow-action MBB contact 1NC/1NO D4NS-9EF
1-Conduit type
(High pull-force type)
Slow-action 1NC/1NO G1/2 D4NS-2AF-SJ *
M20 D4NS-4AF-SJ *
2NC G1/2 D4NS-2BF-SJ *
M20 D4NS-4BF-SJ *
2NC/1NO G1/2 D4NS-2CF-SJ *
M20 D4NS-4CF-SJ *
3NC G1/2 D4NS-2DF-SJ *
M20 D4NS-4DF-SJ *

* Models with Korean S-mark certification.

Operation Keys

Type Model
Horizontal mounting
1465_lu_2_1
D4DS-K1
Vertical mounting
1465_lu_2_2
D4DS-K2
Adjustable mounting (Horizontal)
1465_lu_2_3
D4DS-K3
Adjustable mounting (Horizontal/Vertical)
1465_lu_2_4
D4DS-K5

Slide Keys

Appearance Specifications Contents Model Applicable
Door Switch
1465_lu_3_1 Weight: 422 g
Mechanical durability:
20,000 operations min.
Slide Key
(Operation Key included.): 1
Auxiliary mounting bracket: 1
Receptacle bracket: 1
D4NS-SK01 D4NS
1-conduit type
1465_lu_3_2 Weight: 2,800 g
Mechanical durability:
20,000 operations min.
Slide Key: 1
(Disable-prevention cover
and Operation Key
D4DS-K2 are already mounted
on Slide Key)
D4NS mounting tool: 1
Inner lever: 1
Inner lever mounting screws: 2
Door Switch mounting one-way
screws: 2
Switch protective cover: 1
Switch protective cover screws: 4
D4NS-SK30 D4NS
1-conduit type
