CPM2C

Compact PLC series

CPM2C

A versatile controller for up to 192 I/O points in an ultra-compact package

Note: All dimensions are in mm.

CPU Units with Relay Outputs
(CPM2C-10C(1)DR-D, CPM2C-20C(1)DR-D)

CPM2C Dimensions 2

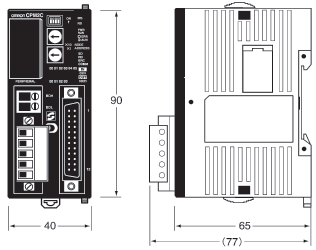

CPU Units with Transistor Outputs
(CPM2C-10C(1)DT(1)C-D, CPM2C-10C(1)DT(1)M-D,
CPM2C-20C(1)DT(1)C-D, CPM2C-20C(1)DT(1)M-D,
CPM2C-32CDT(1)C-D, CPM2C-32CDT(1)M-D)

CPM2C Dimensions 3

CPU Units with Relay Outputs
(CPM2C-S1[]0C)

CPM2C Dimensions 4

CPU Units with Transistor Outputs
(CPM2C-S1[]0C-DRT)

CPM2C Dimensions 5

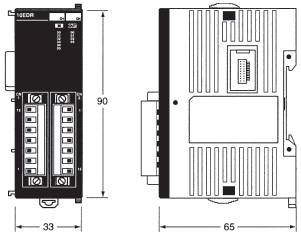

Units with Relay Outputs
(CPM2C-8ER, CPM2C-10EDR, CPM2C-20EDR)

CPM2C Dimensions 6

Units with Transistor Outputs
(CPM2C-24EDT(1)C, CPM2C-24EDT(1)M,
CPM2C-32EDT(1)C, CPM2C-32EDT(1)M)

CPM2C Dimensions 7

Units with Transistor Outputs Only and Units with Inputs Only
(CPM2C-8ED(1), CPM2C-8ET(1)C, CPM2C-8ET(1)M,
CPM2C-16ED(1), CPM2C-16ET(1)C, CPM2C-16ET(1)M)

CPM2C Dimensions 8

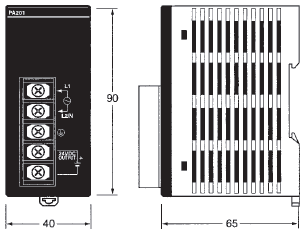

AC Power Supply Unit
(CPM2C-PA201)

CPM2C Dimensions 9

Analog I/O Unit
(CPM2C-MAD11)

CPM2C Dimensions 10

Temperature Sensor Unit
(CPM2C-TS001, CPM2C-TS101)

CPM2C Dimensions 11

CompoBus/S I/O Link Unit
(CPM2C-SRT21)

CPM2C Dimensions 12

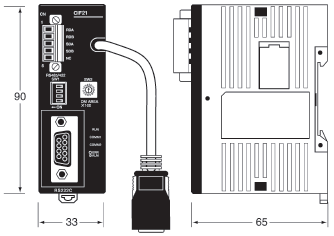

Simple Communications Unit
(CPM2C-CIF21)

CPM2C Dimensions 13

Peripheral/RS-232C Adapter Unit
(CPM2C-CIF01-V1)

CPM2C Dimensions 14

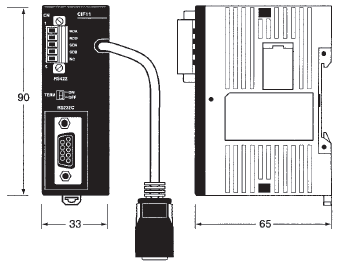

RS-422/RS-485/RS-232C Adapter Unit
(CPM2C-CIF11)

CPM2C Dimensions 15
