E5C2

Temperature Controller

E5C2

DIN-sized (48 x 48 mm) Temperature Controller with Analog Setting

Features
Lineup
Specifications
Dimensions
Catalog / Manual / CAD / Software

last update: November 6, 2012

(Unit: mm)

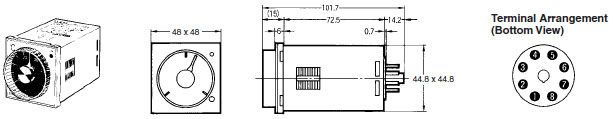

E5C2

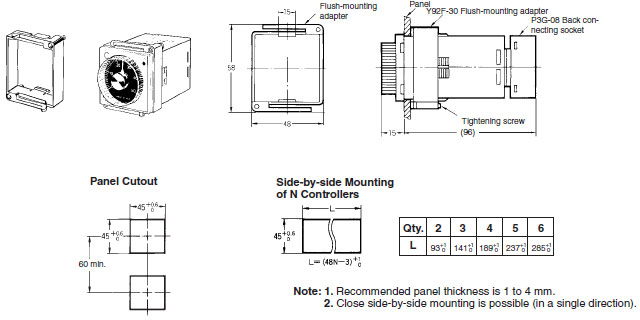

Dimensions with Flush-mounting Adapter (Accessory),
and Back Connecting Socket (Sold Separately)

Accessories (Order Separately)

Connection Sockets

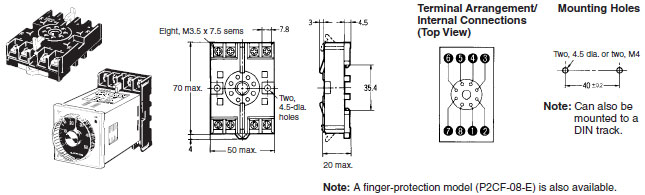

P2CF-08 Front Connecting Socket

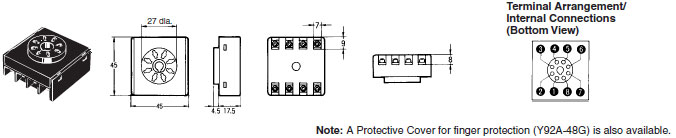

P3G-08 Back Connecting Socket (for Flush Mounting)

Hard Protective Cover

A Hard Protective Cover (Y92A-48B) is available. It can be used in the following cases.
• To protect the setting section, against dust and dirt
• To prevent accidently changing settings by touching the front of the Controller.
• To protect the Controller from water drips

Applicable Thermistor

Connect a Thermistor with a replaceable element (E52-THE5A, E52-THE6D, or E52-THE6F) to the E5C2-R20G.

last update: November 6, 2012
