G2R-[]-S (S)

General-purpose Relay

G2R-[]-S (S)

Slim and Space-saving Power Plug-in Relay

When your order, specify the rated voltage.

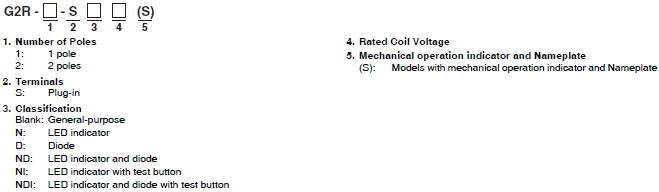

Classification Coil ratings Contact form
General-purpose AC 24, 110, 120, 230, 240
DC 6, 12, 24, 48
G2R-1-S (S) G2R-2-S (S)
LED indicator G2R-1-SN (S) G2R-2-SN (S)
LED indicator with test button G2R-1-SNI (S) G2R-2-SNI (S)
Diode DC 6, 12, 24, 48 G2R-1-SD (S) G2R-2-SD (S)
LED indicator and diode G2R-1-SND (S) G2R-2-SND (S)
LED indicator and diode with test button G2R-1-SNDI (S) G2R-2-SNDI (S)

Note: 1. The standard models are compliant with UL/CSA and VDE standards. Also, an EC compliance declaration has
              been made for combinations with the P2RF-[]-E, P2RF-[]-S and P2RF-[]-PU. The Relays bear the CE Marking.
          2. Refer to Connecting Sockets, below, for applicable Socket models.
          3. When ordering, add the rated coil voltage and "(S)" to the model number. Rated coil voltages are given in the
               coil ratings table.

G2R-[]-S (S) Lineup 3

Accessories (Order Separately)

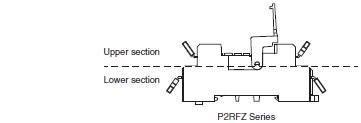

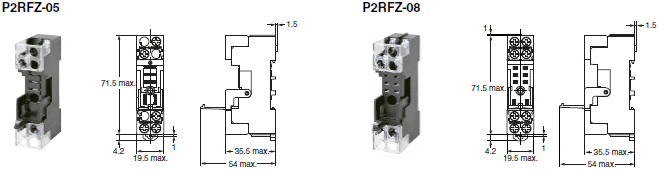

Connecting Sockets

Applicable Relay model Track/surface-mounting Socket Back-mounting Socket
Push-In Plus
Terminal Blocks
Screw terminals * PCB terminals Solder terminals
Model Models Models Model
1 pole G2R-1-S (S) P2RF-05-PU P2RF-05
2 poles G2R-2-S (S) P2RF-08-PU P2RF-08

*The structure of P2RF-[]-E models provides finger protection. Round terminals cannot be used. Use forked crimp terminals.

Accessories for Push-In Plus Terminal Block Sockets (P2RF-[]-PU)

Short Bars

Pitch No. of poles Colors Model * Minimum order (quantity)
7.75 mm 2 Red (R)
Blue (S)
Yellow (Y)
PYDN-7.75-020[] 10
3 PYDN-7.75-030[]
4 PYDN-7.75-040[]
20 PYDN-7.75-200[]
15.5 mm 8 PYDN-15.5-080[]

Note: Use the Short Bars for crossover wiring within one Socket or between Sockets.
* Replace the box ([]) in the model number with the code for the covering color.


Model Minimum order (sheet)
(quantity per sheet)
XW5Z-P4.0LB1 5
1 sheet (60 pieces)

Mounting Tracks

Applicable Socket Description Model Minimum order
Track-connecting Socket Mounting track 50 cm (l) × 7.3 mm (t): PFP-50N ---
1 m (l) × 7.3 mm (t): PFP-100N
1 m (l) × 16 mm (t): PFP-100N2
End plate *1 PFP-M 10
Spacer PFP-S
Back-connecting Socket Mounting plate *2 P2R-P 1

*1.When mounting DIN rail, please use End Plate (PFP-M).
*2.Used to mount several P2R-05A and P2R-08A Connecting Sockets side by side.
