E4C-UDA

Digital Amplifier Ultrasonic Sensor

E4C-UDA

Compact, Cylindrical Reflective Ultrasonic Sensor with Easy Setting

Production is expected to close in March 2023.

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensor Heads

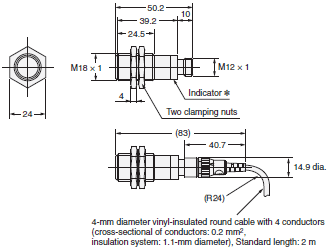

E4C-DS30
E4C-DS80

E4C-UDA Dimensions 3

* Sensor within sensing range (yellow), Power indicator (green)

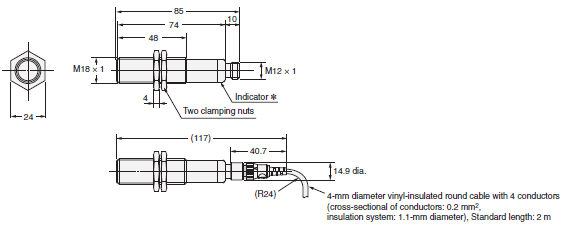

E4C-DS30L
E4C-DS80L

E4C-UDA Dimensions 4

* Sensor within sensing range (yellow), Power indicator (green)

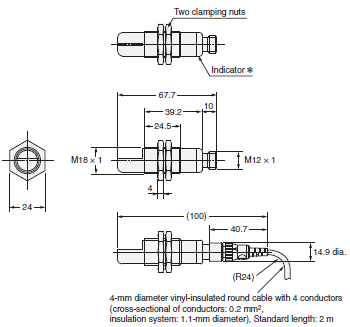

E4C-DS100

E4C-UDA Dimensions 5

* Sensor within sensing range (yellow)

Sensor-Amplifier connection cable (included with Sensor)

E4C-UDA Dimensions 6

Amplifiers

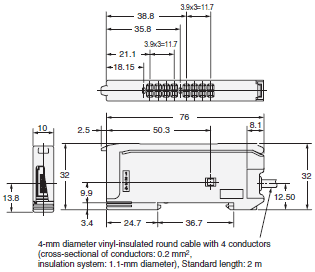

E4C-UDA11
E4C-UDA41

E4C-UDA Dimensions 8

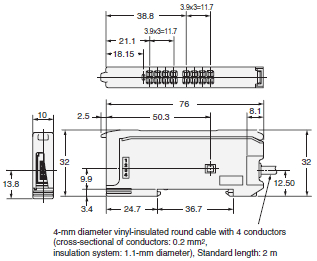

E4C-UDA11AN
E4C-UDA41AN

E4C-UDA Dimensions 9
