H3CR-G

Solid-state Timer

H3CR-G

DIN 48 × 48-mm Star-delta Timer

(Unit: mm)

Dimension of Timer main unit

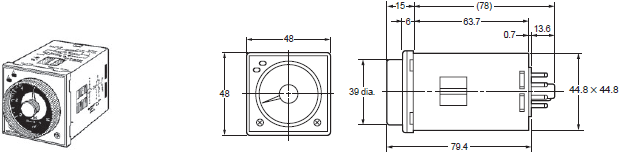

H3CR-G Dimensions 1

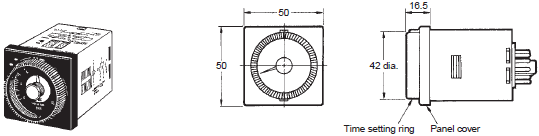

Dimensions with Set Ring and Panel Cover
Y92S-27/-28 (Order Separately)

H3CR-G Dimensions 2

Dimensions with Front Connecting Socket
P2CF-08-[]

H3CR-G Dimensions 3

Note: There are no restrictions to the mounting direction.
* These dimensions vary with the kind of DIN track (reference value).

Dimensions with Back Connecting Socket
P3G-08

H3CR-G Dimensions 4
