AC Servomotors and SMARTSTEP 2-series Servo Drives with Pulse String Inputs
last update: October 2, 2017
(Unit: mm)

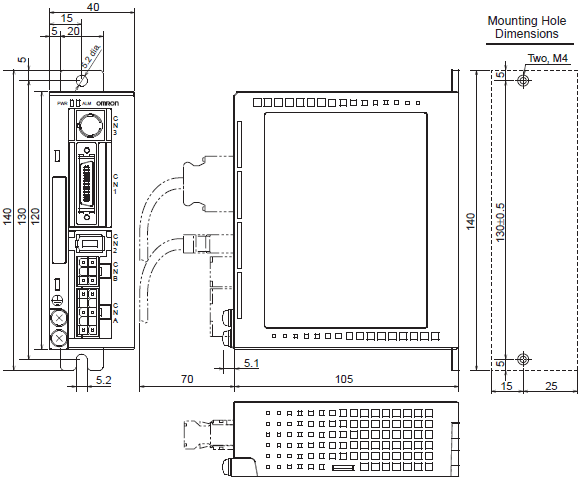

50 W/100 W/200 W
R7D-BPA5L
R7D-BP01L
R7D-BP01H
R7D-BP02H
200 W/400 W
R7D-BP02L
R7D-BP02HH
R7D-BP04H

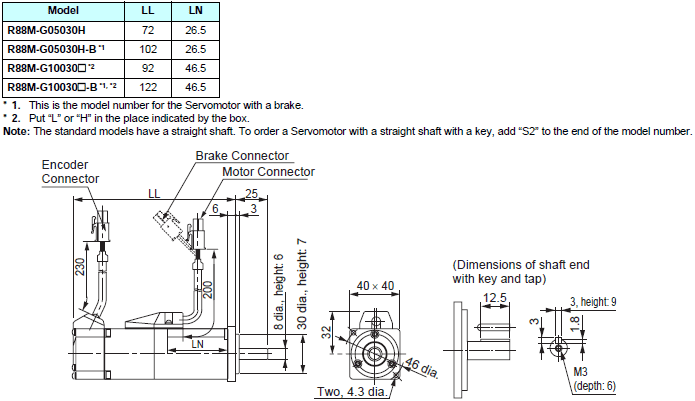

50 W/100 W
[Without brake]
R88M-G05030H (-S2), R88M-G10030L (-S2), R88M-G10030H (-S2)
[With brake]
R88M-G05030H (-S2), R88M-G10030L (-S2), R88M-G10030H (-S2)

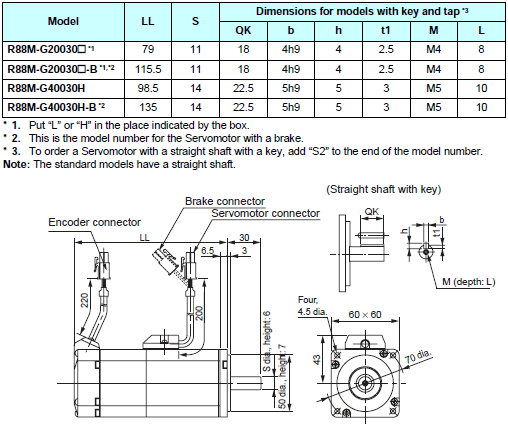

200 W/400 W
[Without brake]
R88M-G20030L (-S2), R88M-G20030H (-S2), R88M-G40030H (-S2)
[With brake]
R88M-G20030L-B (S2), R88M-G20030H-B (S2), R88M-G40030H-B (S2)

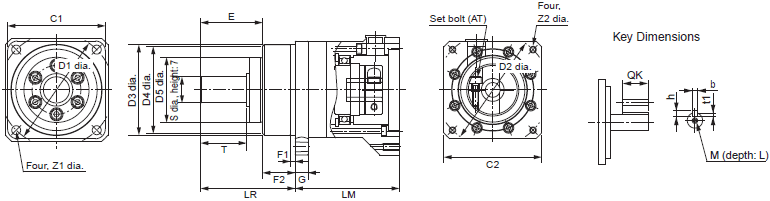

Outline Drawings
Outline Drawings

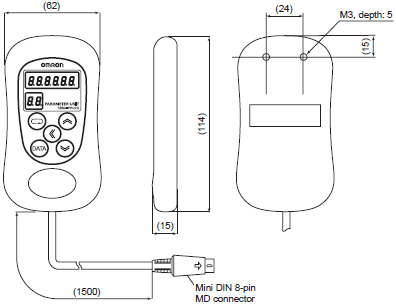

R88A-PR02G

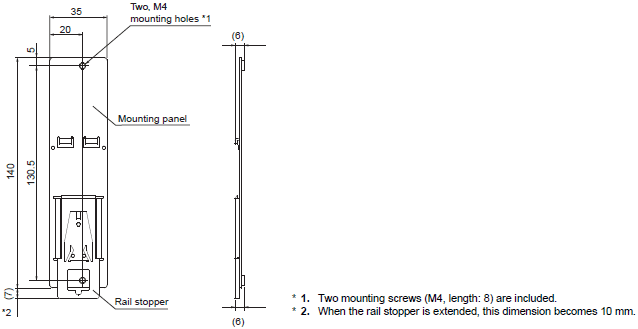

R7A-DIN01B

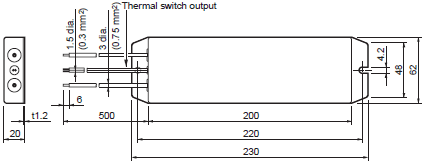

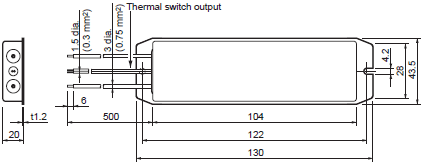

R88A-RR22047S1
R88A-RR08050S
R88A-RR080100S

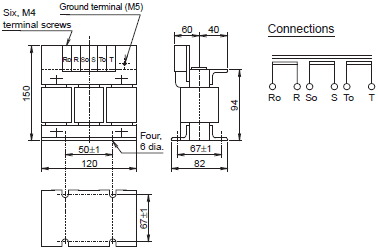

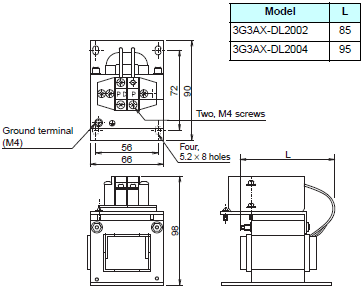

3G3AX-DL2002
3G3AX-DL2004

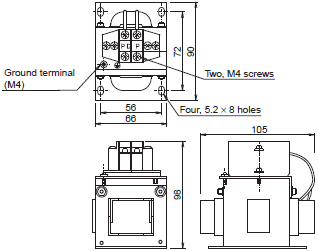

3G3AX-DL2007
3G3AX-AL2025
