G9SX-LM

Low-speed Monitoring Unit

G9SX-LM

Low-speed Monitoring Function Ensures Safety for Maintenance Work

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: November 12, 2012

(Unit: mm)

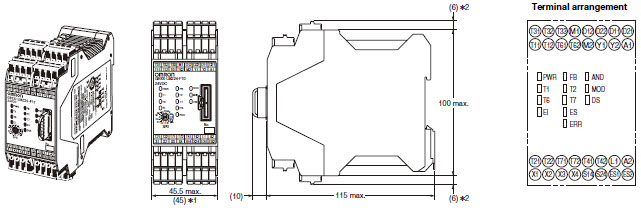

Low-speed Monitoring Unit
G9SX-LM224-F10-[]

G9SX-LM Dimensions 1

*1 Typical dimension
*2 For -RC terminal type only.
Note: Above outline drawing is for -RC terminal type.

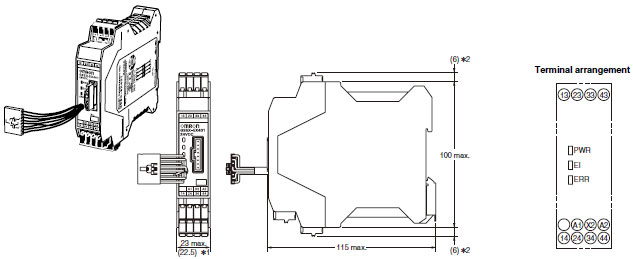

Expansion Unit
G9SX-EX401-[]

G9SX-LM Dimensions 2

*1 Typical dimension
*2 For -RC terminal type only.
Note: Above outline drawing is for -RC terminal type.
