H3CA

Solid-state Timer

H3CA

DIN-sized (48 × 48, 45 × 75 mm) Timer with Digital Setting and LCD Display

Timers

H3CA-A/-8H

H3CA Dimensions 2 H3CA-A/-8H_Dim

H3CA-FA

H3CA Dimensions 3 H3CA-FA_Dim

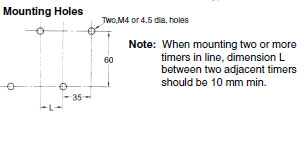

H3CA Dimensions 4 H3CA_Dim1
H3CA Dimensions 5 H3CA_Dim2

Accessories (Order Separately)

Track Mounted Front Connecting Socket

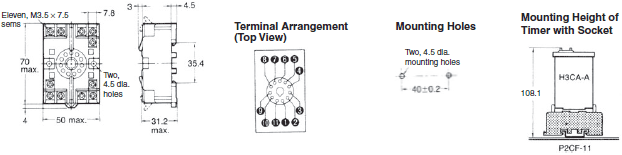

P2CF-11

H3CA Dimensions 9 P2CF-11_Dim

Note:Note:

Note:P2CF-11 can be used as a front connecting socket.

Note:There are no restrictions to the mounting direction.

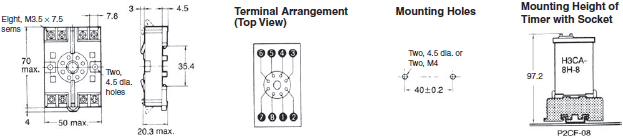

P2CF-08

H3CA Dimensions 14 P2CF-08_Dim

Note:Note:

Note:P2CF-08 can be used as a front connecting socket.

Note:There are no restrictions to the mounting direction.

Back Connecting Socket

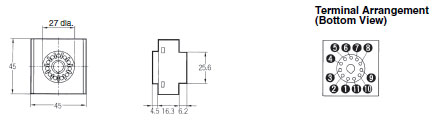

P3GA-11

H3CA Dimensions 20 P3GA-11_Dim

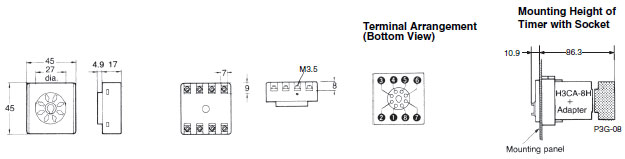

P3G-08

H3CA Dimensions 22 P3G-08_Dim

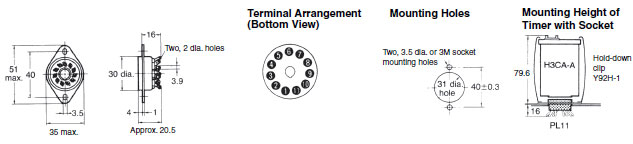

PL11

H3CA Dimensions 24 PL11_Dim

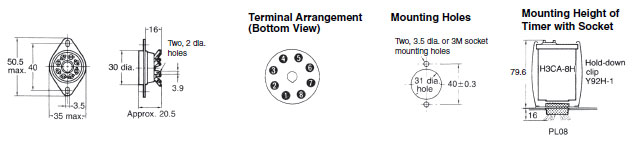

PL08

H3CA Dimensions 26 PL08_Dim

Note:There are no restrictions to the mounting direction.

Adapter for Flush Mounting

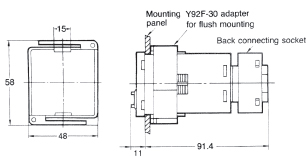

Y92F-30

H3CA Dimensions 30 Y92F-30_Dim

Note:Note: Pay attention to the orientation of the adapter when mounting two or more timers in a vertical or horizontal line.
