Discontinued On Jun. 2023

61F-GP-N[]

Floatless Level Switch (Compact, Plug-in Type)

61F-GP-N[]

Space-saving Design Ideal for Control Panel Downsizing. Easy Maintenance.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

(Unit: mm)

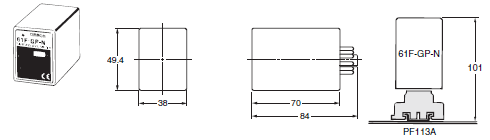

61F-GP-N, -NT, -NL, -NH, -ND, -NR, -N -TDL, -N14, -N15, -NH3

61F-GP-N[] Dimensions 1

When mounting a Display Unit to a PF113A Surface-mounting Socket, secure the PF113A with the groove facing toward the bottom and then connect the 61F-GP-N the PFC-N8 accessory.

PFC-N8

61F-GP-N[] Dimensions 2

Note: PFC-N8 Mounting Bracket (provided with the Level Controller)

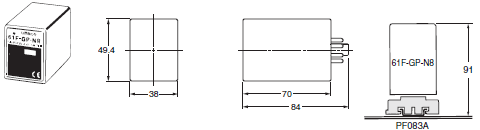

61F-GP-N8, -N8L, -N8H, -N8HY, -N8D, -N8R

61F-GP-N[] Dimensions 3

Use a PFC-N8 Mounting Bracket to mount the Level Controller to a PF083A Rail-mounted Socket.

PFC-N8

61F-GP-N[] Dimensions 4

Note: PFC-N8 Mounting Bracket (provided with the Level Controller)
