Discontinued On Mar. 2015

E2MP

Valve Sensors

E2MP

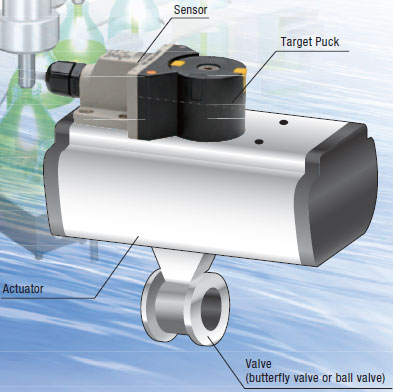

Detect Whether a Valve Is Open or Closed by Mounting Directly on an Actuator

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

E2MP Features 1

Valve Sensor Detection Mechanism

Two coils built into the Valve Sensor detect the position of metal built into the Target Puck, and separate outputs are provided for when the valve is open or closed.

E2MP Features 2

Concerned about installation work

The E2MP enables easy mounting with greatly reduced installation work.

The design of the mounting sections of the Valve Sensors and Accessories conform to the VDI/VDE3845 (NAMUR) standard. The Valve Sensors are specially designed to detect valve condition, so the previously required assembly and adjustment work is no longer necessary, greatly reducing installation work.
Note: The VDI/VDE3845 (NAMUR) is an interface standard for valve actuators.

Detection section design required every time the valve changes

Just select the Valve Sensor and the Target Puck.

In addition to Target Pucks with specifications for fully closed and Fully open (0°: closed, 90°: open), the product lineup also includes E2MP-CA[] Target Pucks applicable for intermediate opening (0°: closed, 0° to 90°: open), and E2MP-SA[] Target Pucks for mounting to a wide variety of actuator sizes up to a maximum diameter of 85 mm.

Hard to see whether the valve is open or closed at the worksite

Easy to see if the valve is open or closed.

Indicators on the Valve Sensor (LED) and the Turget Puck* instantly show the valve condition for each confirmation onsite. Two colors of LED indicators, yellow and red, are provided on the Sensors.
