EE-SX97

Slot-type Photomicrosensor

EE-SX97

Built-in connector enables downsizing and easier connection. Protective circuit for safe operation.

last update: July 10, 2023

(Unit: mm)

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

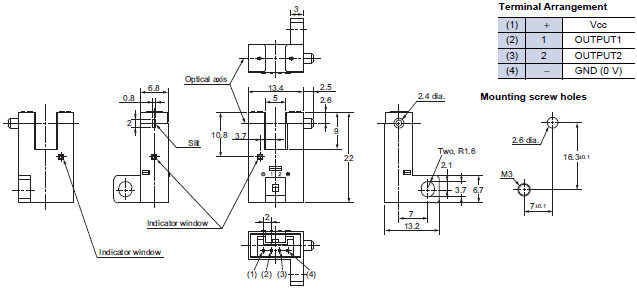

EE-SX970-C1
EE-SX970P-C1

EE-SX97 Dimensions 3

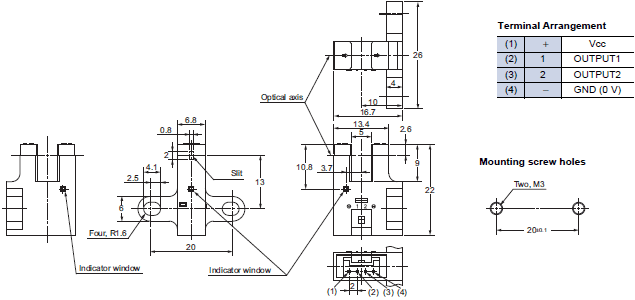

EE-SX971-C1
EE-SX971P-C1

EE-SX97 Dimensions 4

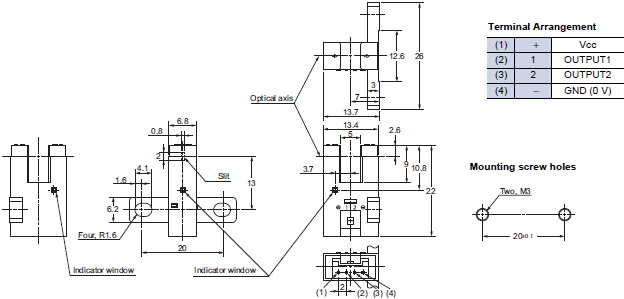

EE-SX972-C1
EE-SX972P-C1

EE-SX97 Dimensions 5

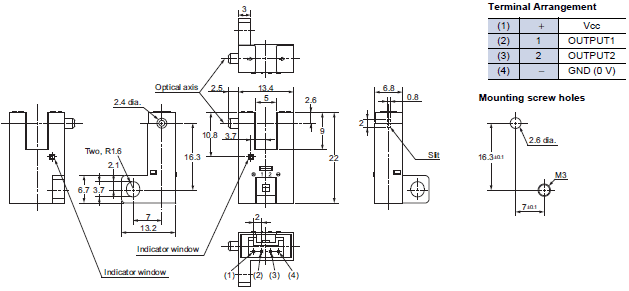

EE-SX974-C1
EE-SX974P-C1

EE-SX97 Dimensions 6

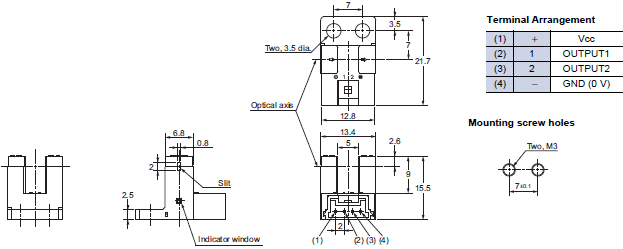

EE-SX975-C1
EE-SX975P-C1

EE-SX97 Dimensions 7

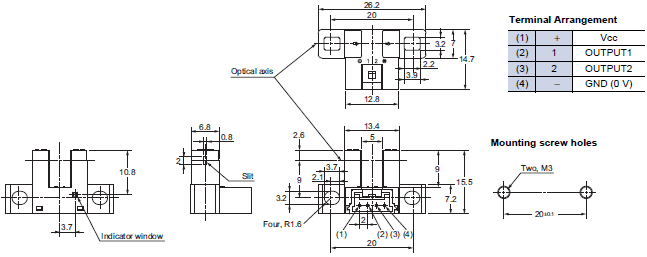

EE-SX976-C1
EE-SX976P-C1

EE-SX97 Dimensions 8

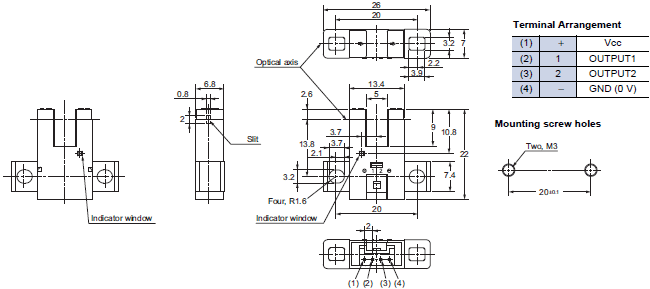

EE-SX977-C1
EE-SX977P-C1

EE-SX97 Dimensions 9

Accessories (Order Separately)

Connector

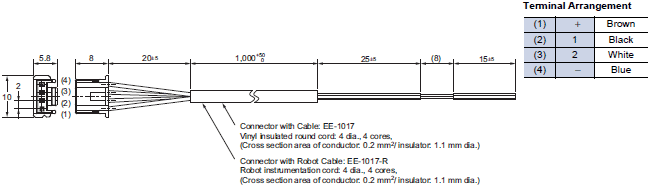

Connector with Cable
EE-1017
Connector with Robot Cable
EE-1017-R

EE-SX97 Dimensions 12

last update: July 10, 2023
