TP70

On-site Flexible Rod Switch

TP70

Easy on-site input on-the-move

(Unit: mm)

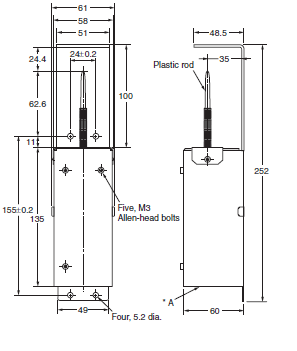

TP70-1A1

TP70 Dimensions 1

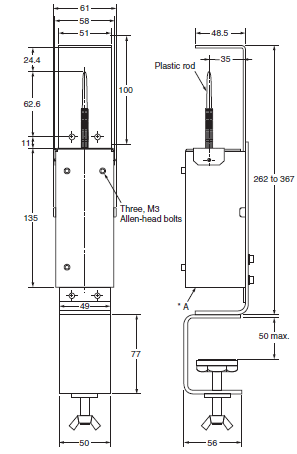

TP70-1A2

TP70 Dimensions 2

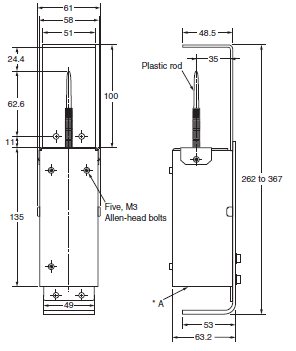

TP70-1A3

TP70 Dimensions 3

Note: Unless otherwise specified, a tolerance of ±4 mm applies to all dimensions.
* There is no base plate at A.

Operating Characteristics

TP70 Dimensions 5
