NX-OD / OC

NX-series Digital Output Units

NX-OD / OC

A Wide Range of Digital Output Units from General Purpose use to High- Speed Synchronous Control

last update: October 11, 2016

(Unit: mm)

Screwless Clamping Terminal Block Type

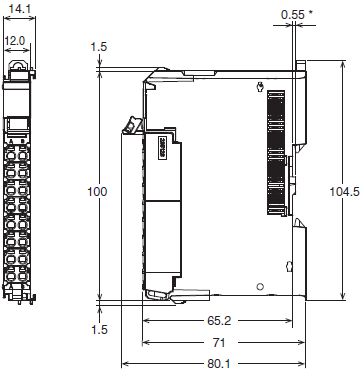

12 mm Width

NX-OD / OC Dimensions 2

* The dimension is 1.35 mm for Units with lot numbers through December 2014.

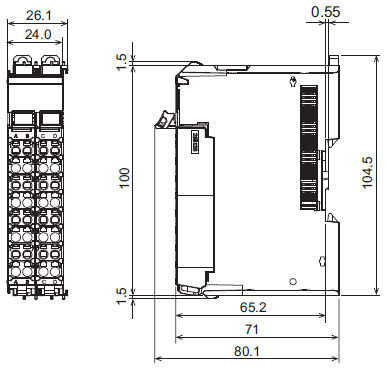

24 mm Width

NX-OD / OC Dimensions 3

M3 Screw Terminal Block Type

30 mm Width

NX-OD / OC Dimensions 5

Connector Types

30 mm Width

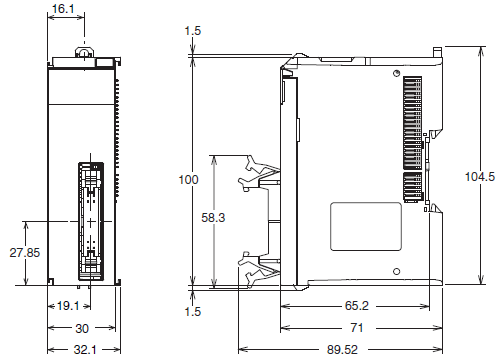

Units with MIL Connectors (1 Connector with 20 Terminals)

NX-OD / OC Dimensions 8

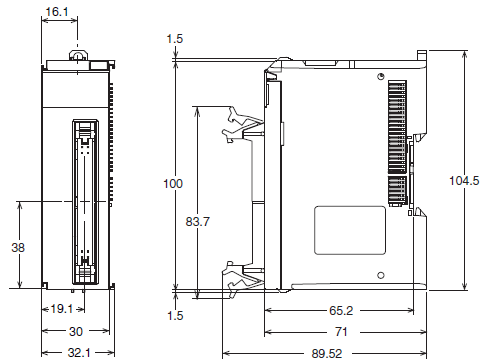

Units with MIL Connectors (1 Connector with 40 terminals)

NX-OD / OC Dimensions 9

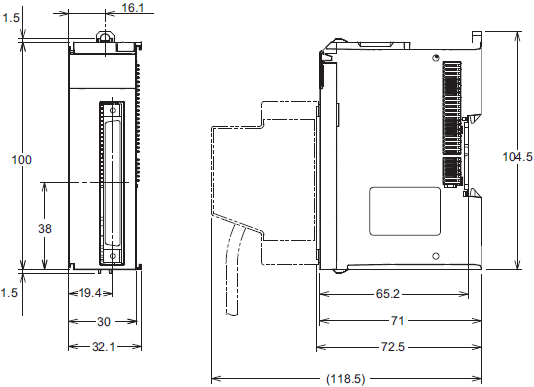

Units with Fujitsu Connectors (1 Connector with 40 Terminals)

NX-OD / OC Dimensions 10
