NX-PG0[][][]

NX-series Pulse Output Unit

NX-PG0[][][]

Positioning control with pulse outputs to command stepper motor drives and other pulse input motor drives

(Unit: mm)

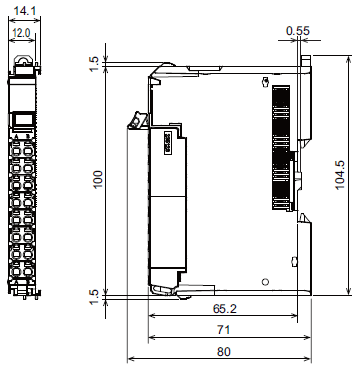

Screwless Clamping Terminal Block Type

12 mm Width

NX-PG0[][][] Dimensions 2

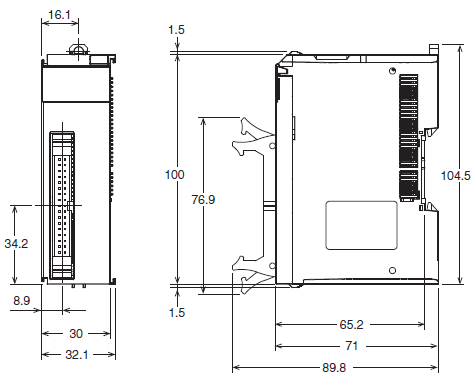

MIL Connector Type (1 Connector with 34 terminals)

30 mm Width

NX-PG0[][][] Dimensions 4

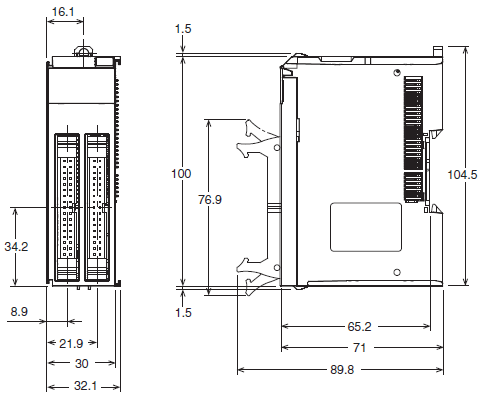

MIL Connector Type (2 Connectors with 34 terminals)

30 mm Width

NX-PG0[][][] Dimensions 6
