NJ501-1[]20 / NJ101-[][]20

NJ-series Database Connection CPU Units

NJ501-1[]20 / NJ101-[][]20

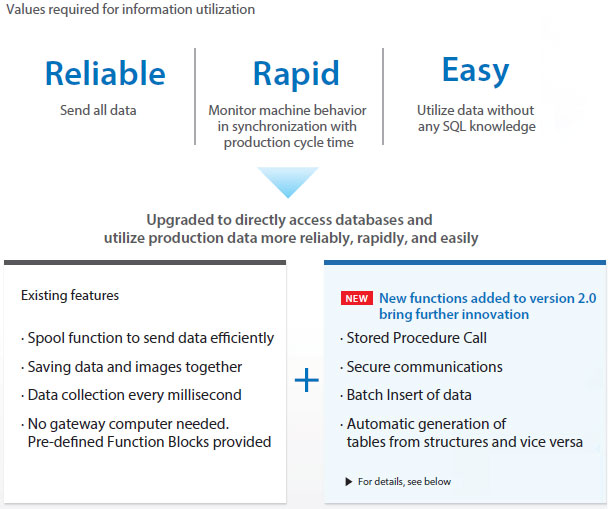

The NJ-series Machine Automation Controller supports the Database Connection function. Machine data can be quickly stored in a database by connecting the Controller directly to the database.

Easy data collection for Productivity Improvement

Visualized quality and productivity

Operating status can be displayed in real time using familiar software such as Microsoft® Excel.

No SQL knowledge required

The CPU Unit can directly access databases without a separate computer.
Function Blocks allow PLC engineers to easily use the CPU Unit.

NJ501-1[]20 / NJ101-[][]20 Features 3

New NX102 with database connection

The compact designed NX1 brings advanced motion and sequence control to compact machines.

Visualization and traceability

NJ501-1[]20 / NJ101-[][]20 Features 5

The NX102-[][]20 with OPC UA as a standard feature provides both production data visualization and traceability.
OPC UA is an industrial communication protocol with authentication and encryption, ensuring a secure connection between automation systems and IT systems. This international standard is well linked to Industrie 4.0.

Supported database

• Microsoft SQL server
• Oracle Database
• IBM DB2
• MySQL
• PostgreSQL
• Firebird

Fast data collection for Predictive Maintenance

Real-time data collection

Data is sampled every millisecond and written to the database.
Machine behavior can be monitored more accurately.

NJ501-1[]20 / NJ101-[][]20 Features 8

Reliable data for Quality Traceability

Realize quality traceability

Data, such as production conditions, production results, and inspection results, can be managed at the individual product level.

Saving data and images together

The process data is linked to inspection images and saved together with the images.
This improves the level of quality management.

Reliable data transfer

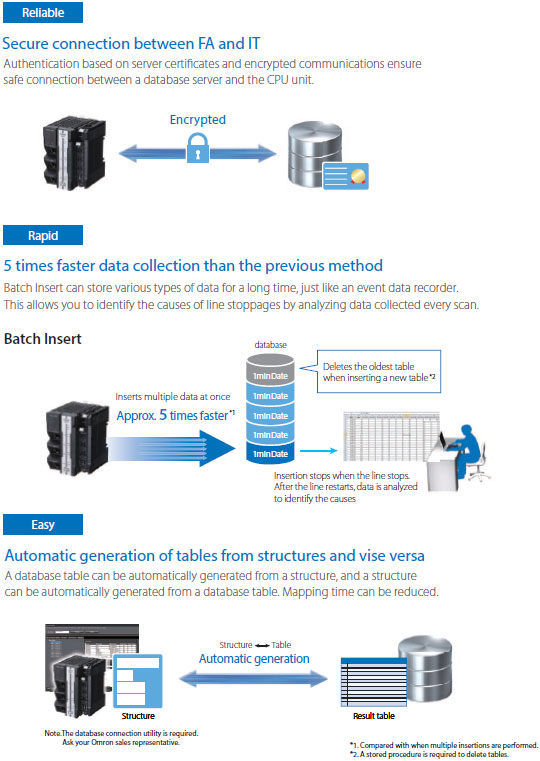

Direct access and spooling enable the CPU Unit to efficiently and reliably transfer all collected data to databases.
