E3X-ZD

Digital optical fiber sensor

E3X-ZD

The simplest E3X-ZD series Easy Operation for Anyone

Amplifier unit (main body)

Shapes Connections Model
NPN output PNP output
3211_lu_1_1
Pre-wired models E3X-ZD11 2M E3X-ZD41 2M
3211_lu_1_2
Connector models* E3X-ZD6 E3X-ZD8

* Suitable connectors: Please use the following simplified wiring connectors (each sold separately).

Simplified wiring connectors (each sold separately)

Types Shapes Cable length Quantity of conductors Model
Master connectors
3211_lu_2_1
2m 3-wire E3X-CN11
Slave-connectors
3211_lu_2_2
1-wire E3X-CN12

Up to 16 units can be connected

E3X-ZD Lineup 4

Note:It can be mixed and used with other series (e.g., E3X-DA).

Precaution for making order for connectors of different models
(the main body and the connector are sold separately).

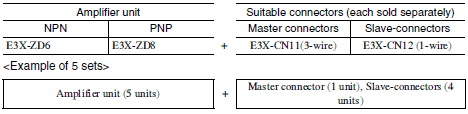

Please review the following combinations when making the order:

E3X-ZD Lineup 5

Accessories (each sold separately)

Metal fixing installation accessories

Shapes Model Quantity
3211_lu_5_1
E39-L143 1

Rear pedestal

Shapes Model Quantity
3211_lu_6_1
PFP-M 1
