E3F3

Photoelectric Sensor

E3F3

Threaded Cylindrical Photoelectric Sensor with Built-in Amplifier for Use as an Optical Proximity Sensor High Noise-immunity with Photo-IC Technology

Note: All units are in millimeters unless otherwise indicated.

Sensors

Plastic housing Metal housing
Pre-wired E3F3-D[]2
3214_dm_1_1
E3F3-D[]2M
3214_dm_1_2
M12 connector E3F3-D[]7
3214_dm_1_3
E3F3-D[]7M
3214_dm_1_4
Pre-wired E3F3-T[]1
E3F3-R[]1
E3F3-R[]2
E3F3-D[]1

3214_dm_1_5
E3F3-T[]1M
E3F3-R[]1M
E3F3-R[]2M
E3F3-D[]1M

3214_dm_1_6
M12 connector E3F3-T[]6
E3F3-R[]6
E3F3-R[]7
E3F3-D[]6

3214_dm_1_7
E3F3-T[]6M
E3F3-R[]6M
E3F3-R[]7M
E3F3-D[]6M

3214_dm_1_8

Note:Pre-wired Cord: Polyvinyl chloride-covered cord, 4-mm dia. (18/0.12),
                              Standard length: 2 m
                              Emitter: 2-conductor (brown and blue)
                              Receiver and Reflective model: 3-conductor (brown, blue, and black)
M12 connector: 3214_dm_1_91: +V, 2: NC, 3: 0 V, 4: Output

Accessories (Order Separately)

E39-R1 Retroreflector

E3F3 Dimensions 5

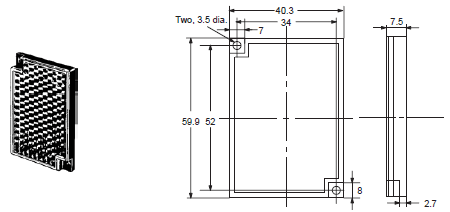

E39-R3 Retroreflector

E3F3 Dimensions 6

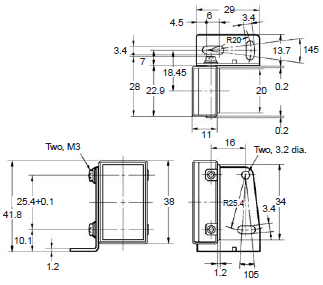

Mounting Bracket for E39-K3
(Sold Together)

E3F3 Dimensions 7

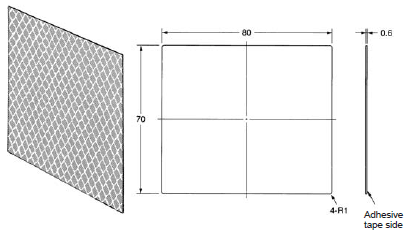

E39-RS1 Retroreflector

E3F3 Dimensions 8

Material: Acrylic resin

E39-RS2 Retroreflector

E3F3 Dimensions 10

Material: Acrylic resin

E39-RS3 Retroreflector

E3F3 Dimensions 12

Material: Acrylic resin

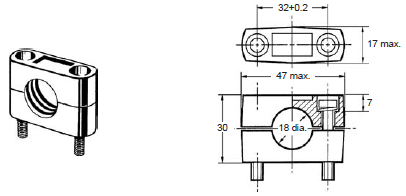

Y92E-B18 Mounting Bracket

E3F3 Dimensions 14

Note: Hexagonal bolt: M5 x 32
Material: plastic

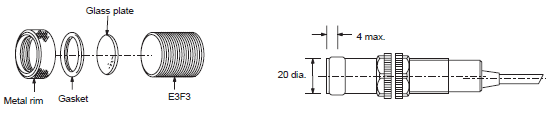

E39-F31 Lens Cap

E3F3 Dimensions 16
