Digital Temperature Controller (Simple Type) (48 × 48 mm)
last update: April 1, 2019

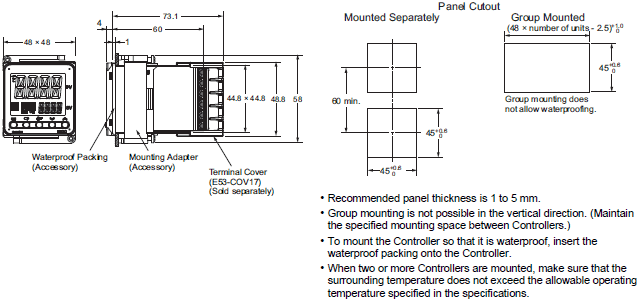

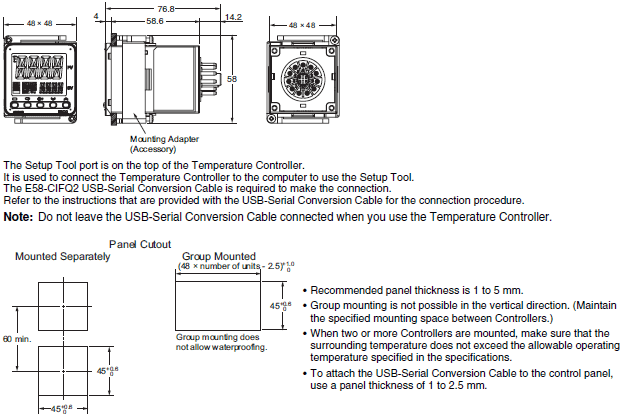

(Unit: mm)
Terminal Covers
E53-COV17

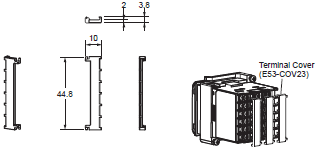

Terminal Covers
E53-COV23 (Three Covers provided.)
Terminal Cover (for the P3GA-11 Back-connecting Socket)
Y92A-48G
The waterproof packing is provided only with the E5CC-800.
It is not included with the E5CC-U-800.
Order the Waterproof Packing separately if it becomes lost or damaged.
The Waterproof Packing can be used to achieve an IP66 degree of protection.
(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site.
Consider three years a rough standard.)
The Waterproof Packing does not need to be attached if a waterproof structure is not required.
The E5CC-U cannot be waterproofed even if the Waterproof Packing is attached.

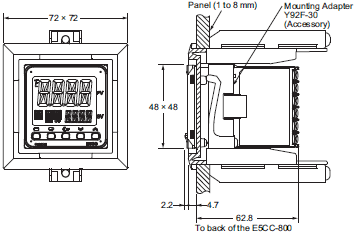

The Mounting Adapter is provided with the Temperature Controller.
Order this Adapter separately if it becomes lost or damaged.
Note: This Protective Cover cannot be used if the Waterproof Packing is installed.
This Protective Cover is soft type.
It is able to operate the controller with using this cover.

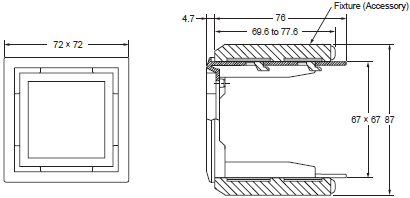

This Protective Cover is hard type.
Please use it for the mis-operation prevention etc.
Front-connecting Socket

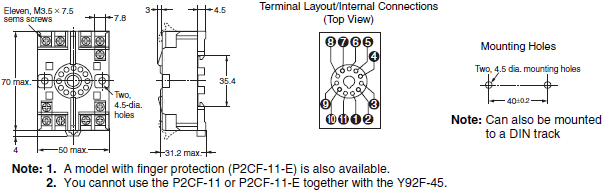

P2CF-11

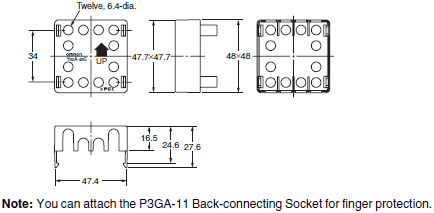

Back-connecting Socket

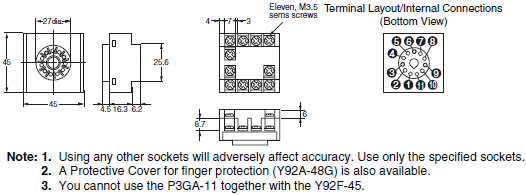

P3GA-11

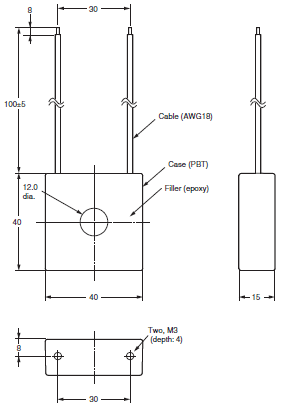

Maximum continuous heater current: 50 A (50/60 Hz)
Number of windings: 400±2
Winding resistance: 18±2 Ω

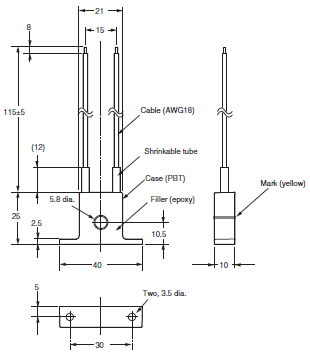

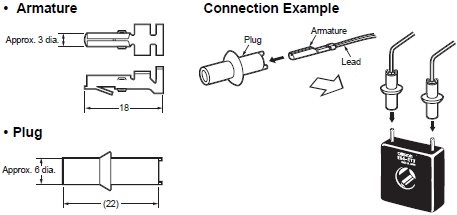

Maximum continuous heater current: 120 A (50/60 Hz)
(Maximum continuous heater current for an OMRON Digital Temperature Controller is 50 A.)
Number of windings: 400±2
Winding resistance: 8±0.8 Ω
