E3S-CL

Distance-settable Photoelectric Sensor with Metal Case

E3S-CL

Simply Set the Distance to Reliably Detect Workpieces of Various Colors

Note:Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

E3S-CL1 E3S-CL2

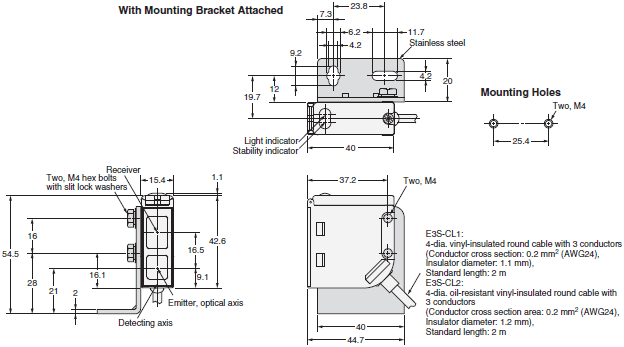

E3S-CL Dimensions 3 E3S-CL1_Dim

Note:The output selector, operation selector, and distance setting adjuster are located inside the cover.
