Discontinued On Mar. 2015

E2EV

All Metal Proximity Sensor

E2EV

Long-distance Detection of Both Ferrous of Non-ferrous Metals

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

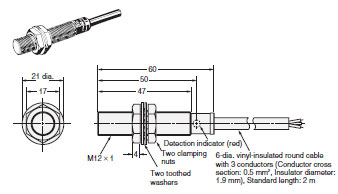

E2EV-X2C[]

E2EV Dimensions 2

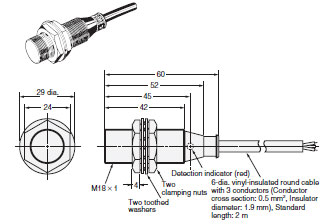

E2EV-X5C[]

E2EV Dimensions 3

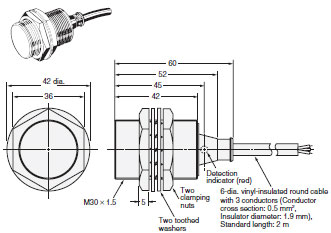

E2EV-X10C[]

E2EV Dimensions 4

Mounting Hole Dimensions

E2EV Dimensions 5
