R87F / R87T
AC Axial Fans
Optimum Cooling with a Comprehensive Lineup of Axial Fans
Related Contents
Application Solutions
last update: May 7, 2019
(Unit: mm)

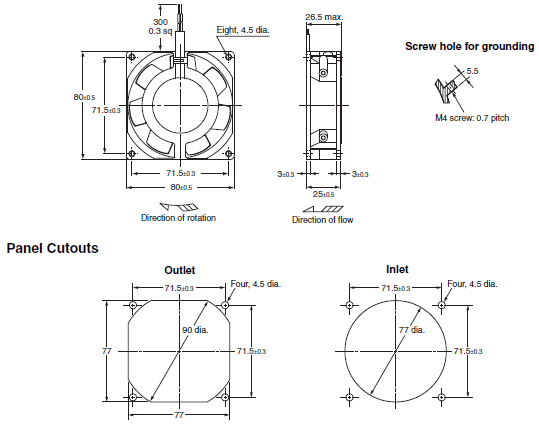

R87F-A[]A83
AC Axial Fans with Lead Wires (80 × 80 × t25 mm)

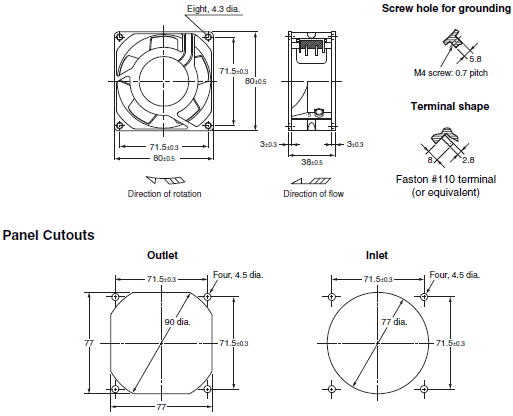

R87F-A[]A85
AC Axial Fans with Terminals (80 × 80 × t38 mm)

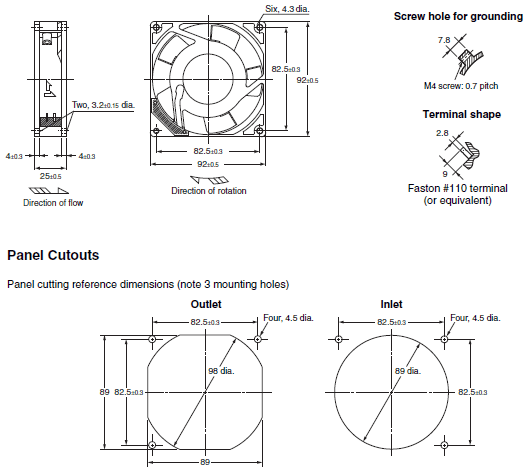

R87F-A[]A93
AC Axial Fans with Terminals (92 × 92 × t25 mm)

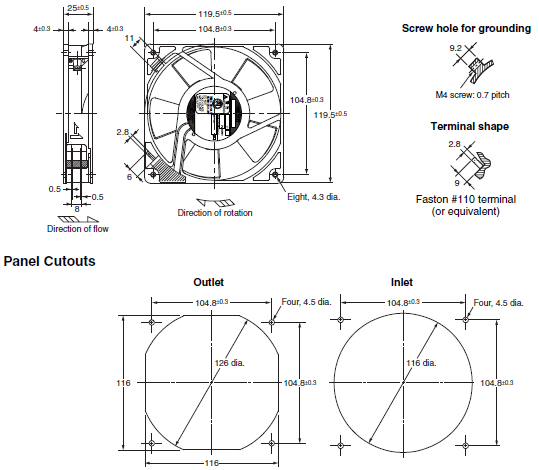

R87F-A[]A13
AC Axial Fans with Terminals (120 × 120 × t25 mm)

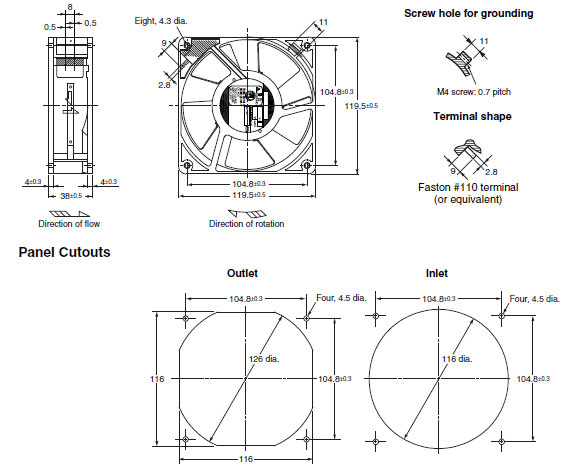

R87F-A[]A15
AC Axial Fans with Terminals (120 × 120 × t38 mm)

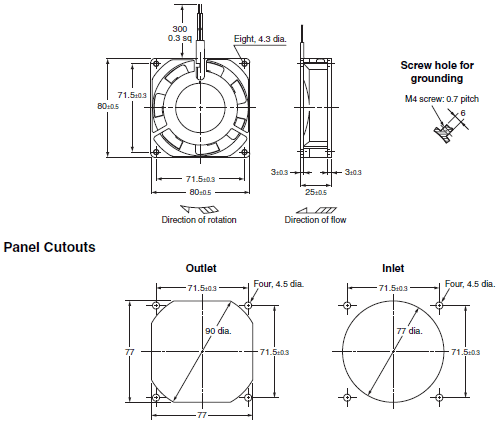

R87T-A[]A83
AC Axial Fans with Lead Wires (80 × 80 × t25 mm)

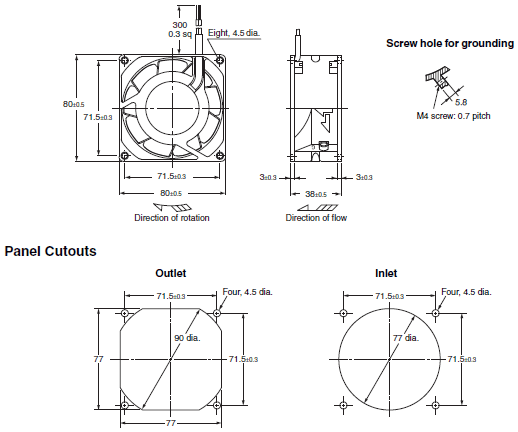

R87T-A[]A85
AC Axial Fans with Lead Wires (80 × 80 × t38 mm)

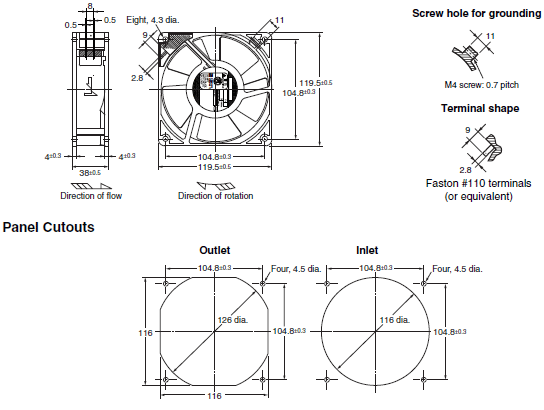

R87T-A[]A15
AC Axial Fans with Terminals (120 × 120 × t38 mm)

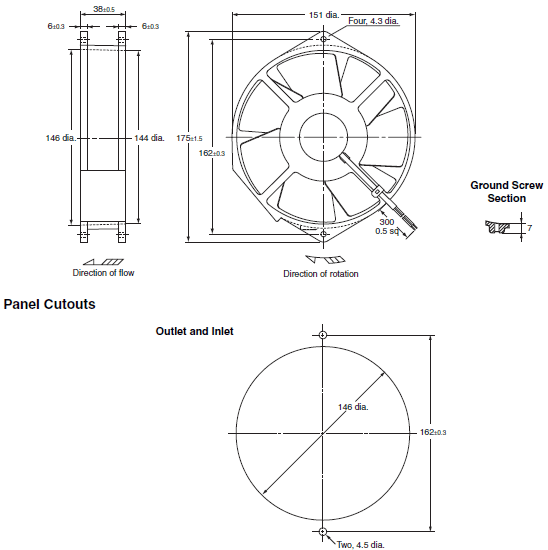

R87T-A[]A05
AC Axial Fans with Lead Wires (150-dia. × t38 mm)

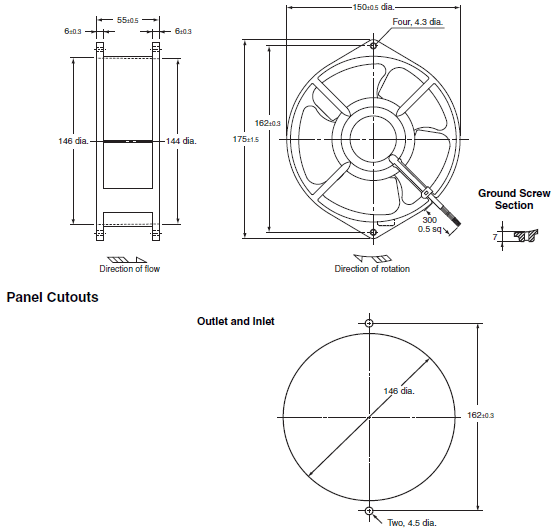

R87T-A[]A07
AC Axial Fans with Lead Wires (150-dia. × t55 mm)

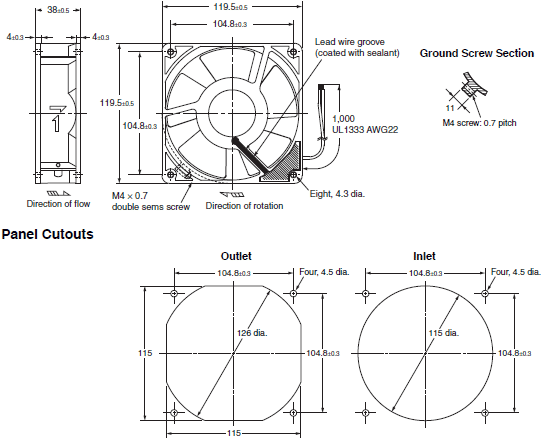

R87T-A[]A15H-WR
Water-resistant AC Axial Fans with Lead Wires (120 × 120 × t38 mm)
Accessories (Order Separately)

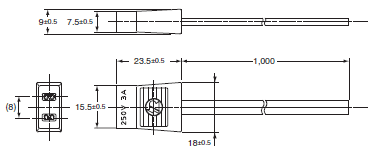

R87F-PC
Plug Cord
Connectable to Faston #110 terminals (or equivalent).
Note: This Plug Cord is used for Axial Fans with terminals.
R87F-FG
Finger Guards
R87F-FG150
R87F-FG120
R87F-FG90

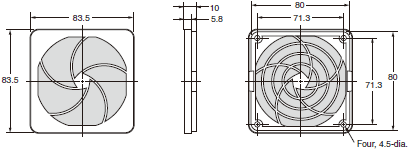

R87F-FG80
R87F-FL
Filters

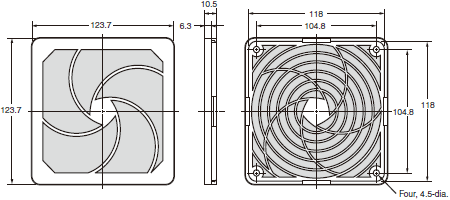

R87F-FL120

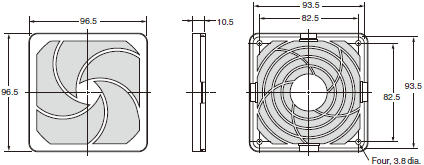

R87F-FL90
R87F-FL80
R87F-FL120S
Note: 1. The Screen Filter is made using aluminium and has an EMI/RFI shielding effect.
2. When mounting the Screen Filter, make sure that it does not come in contact with the fan blades.
3. The screen is a 30 × 30 aluminum mesh.
(30 aluminum wires per inch)
2. When mounting the Screen Filter, make sure that it does not come in contact with the fan blades.
3. The screen is a 30 × 30 aluminum mesh.
(30 aluminum wires per inch)
