A22E / A22NE-P

Emergency Stop Pushbutton Switches (22-dia. or 25-dia.)

A22E / A22NE-P

Install in 22-dia. or 25-dia. Panel Cutout (When Using a Ring)

(Unit: mm)

A22E Screw Terminal Block types

Non-lighted Models

A22E-MP
Medium Push-pull (40-dia.)

A22E / A22NE-P Dimensions 3

A22E-S
Small Turn-reset (30-dia.)

A22E / A22NE-P Dimensions 4

A22E-M
Medium Turn-reset (40-dia.)

A22E / A22NE-P Dimensions 5

Note: The dimensions are the same as for EMO/EMS indication models.

A22E-L
Large Turn-reset (60-dia.)

A22E / A22NE-P Dimensions 7

Note: Unless otherwise specified, a tolerance of ±0.8mm applies to all dimensions.

Lighted Model

A22EL-M
Medium Turn-reset (40-dia.)

A22E / A22NE-P Dimensions 10

Switch dimensions when mounted to a 2NO (2NC) one-piece switch block

A22E / A22NE-P Dimensions 11

Note: The operation unit is an example for the A22E-M.

Note: Unless otherwise specified, a tolerance of ±0.8mm applies to all dimensions.

Accessories (Order Separately)

LED Lamp

A22-6[], 12[], 24[]

A22E / A22NE-P Dimensions 14

Control Box

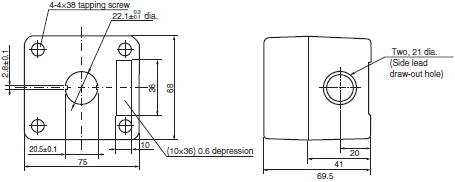

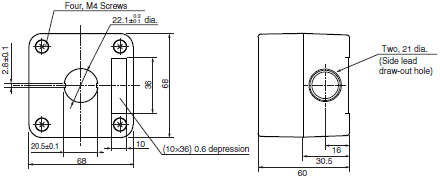

A22Z-B101Y (1-hole)

A22E / A22NE-P Dimensions 15

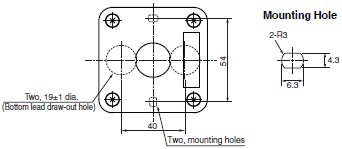

Cable Draw-out Hole (Top View)

A22E / A22NE-P Dimensions 16

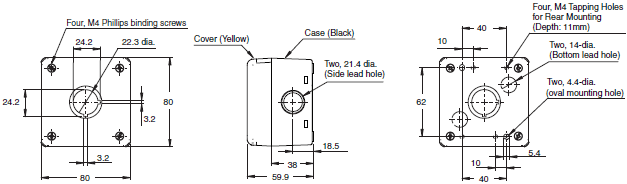

A22Z-B201Y (1-hole)

A22E / A22NE-P Dimensions 17

Cable Draw-out Hole (Top View)

A22E / A22NE-P Dimensions 18

Note: For details on the accessories common to the screw terminal block types and push-in plus terminal block types,
         refer to "Common Accessories and Tools (Order Separately)" on below.

A22NE-P Push-In Plus technology

Non-lighted Models

A22NE-MP-P[][]2-N
Pull-reset (40-dia.) Degree of Protection: IP65

A22E / A22NE-P Dimensions 22

A22NE-MP-P[][]2-N-69K
Pull-reset (40-dia.) Degree of Protection: IP69K

A22E / A22NE-P Dimensions 23

A22NE-S-P[][]2-N
Small Turn-reset (30-dia.) Degree of Protection: IP65

A22E / A22NE-P Dimensions 24

A22NE-M-P[][]2-N
Medium Turn-reset (40-dia.) Degree of Protection: IP65

A22E / A22NE-P Dimensions 25

Note: The dimensions the same even if the Operation Unit is replaced with the A22NE-MR[]-N or the A22NE-MR[]-N-RD.

A22NE-L-P[][]2-N
Large Turn-reset (60-dia.) Degree of Protection: IP65

A22E / A22NE-P Dimensions 27

Lighted Model

A22NE-M-P[][]2-[]
Medium Turn-reset (40-dia.) Degree of Protection: IP65

A22E / A22NE-P Dimensions 29

Note: Unless otherwise specified, a tolerance of ±0.8mm applies to all dimensions.

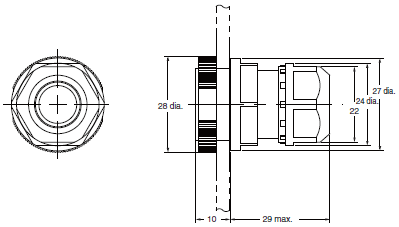

Dimensions when a two-contact Switch Block is attached

A22E / A22NE-P Dimensions 31

Accessories (Order Separately)

Switch Block with Push-In Plus technology

Switch Block (one contact)

A22NZ-S-P1[]N

A22E / A22NE-P Dimensions 34

Switch Block (two contacts)

A22NZ-S-P2[]N

A22E / A22NE-P Dimensions 35

Lighting unit

A22NZ-T-[]PN

A22E / A22NE-P Dimensions 36

Mounting Latches

A22NZ-H-02

A22E / A22NE-P Dimensions 37

LED Lamp

A22NZ-L-[][]

A22E / A22NE-P Dimensions 38

Control Box

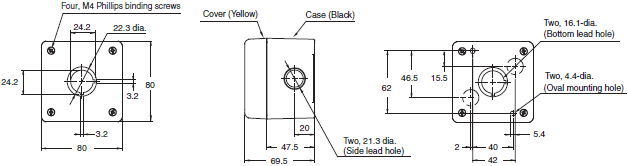

A22NZ-A-B01Y

A22E / A22NE-P Dimensions 39

Note: For details on the accessories common to the screw terminal block types and push-in plus terminal block types, refer to "Common Accessories and Tools (Order Separately)" on below.

Common Accessories and Tools (Order Separately)

Common to Screw Terminal Block types (A22E)/Push-in Plus Terminal Block types (A22NE-P)

Hole Plug

Round A22Z-3530

A22E / A22NE-P Dimensions 43

30-dia. Resin Attachment

A22Z-A30

A22E / A22NE-P Dimensions 44

Legend Plates for Emergency Stop

A22Z-3476-1 (90 dia.)

A22E / A22NE-P Dimensions 45

A22Z-3466-1 (60 dia.)

A22E / A22NE-P Dimensions 46

A22Z-3466-2 (60 dia.)

A22E / A22NE-P Dimensions 47

Lock Ring

A22Z-3360

A22E / A22NE-P Dimensions 49

Material: Nickel plated on iron

25-dia. Ring

A22Z-R25

A22E / A22NE-P Dimensions 51

Material: NBR (black)

Tightening Tool

A22Z-3905

A22E / A22NE-P Dimensions 52

Rubber Packing

A22Z-R

A22E / A22NE-P Dimensions 53

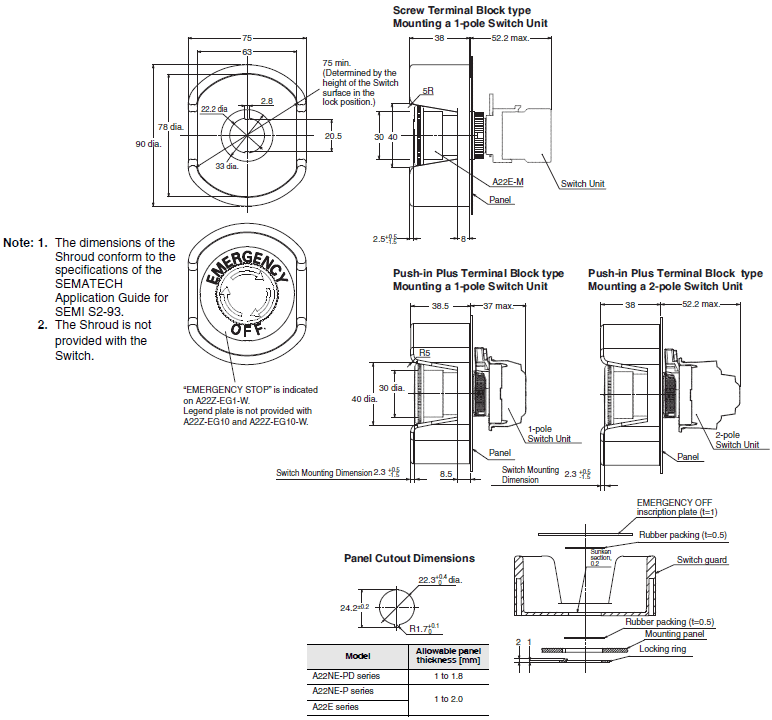

Common E-stop Shrouds

A22Z-EG1, A22Z-EG1-W, A22Z-EG10, A22Z-EG10-W

A22E / A22NE-P Dimensions 54

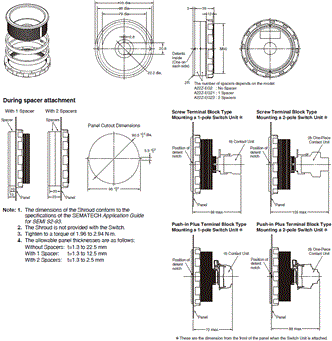

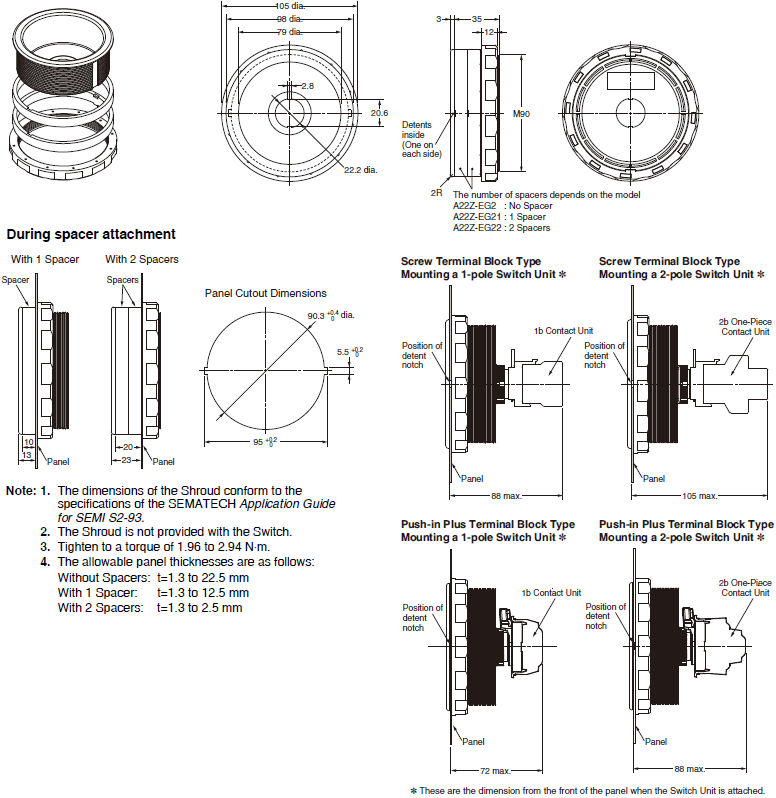

E-stop Shrouds

A22Z-EG2, A22Z-EG21, A22Z-EG22

A22E / A22NE-P Dimensions 55

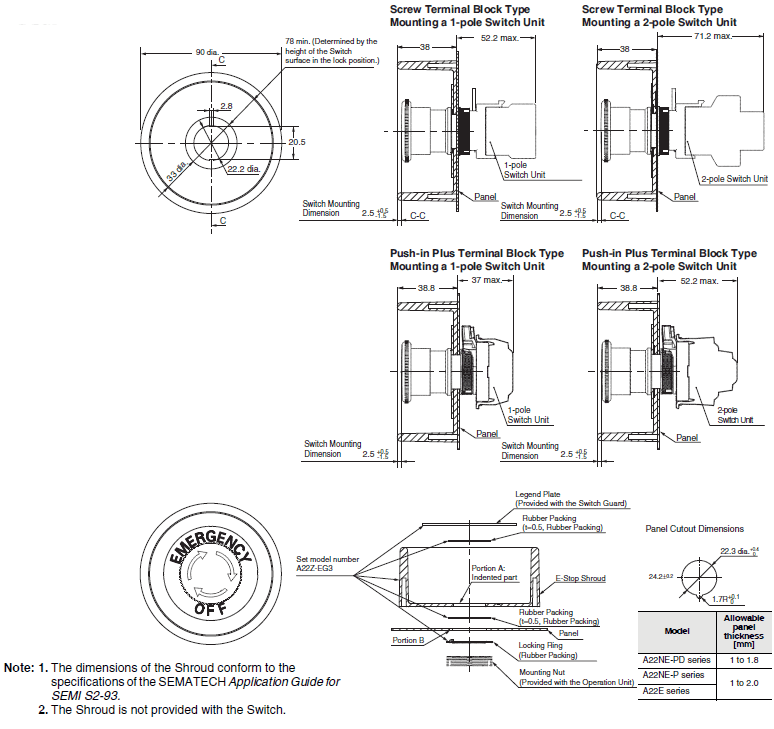

E-stop Shroud

A22Z-EG3

A22E / A22NE-P Dimensions 56
