Note: The Adapter is included with the Thermocouple.
If it is lost or damaged, you can order a replacement with the following model number.
Adapter: Y92F-S1

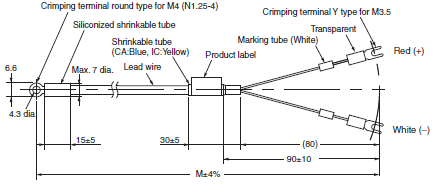

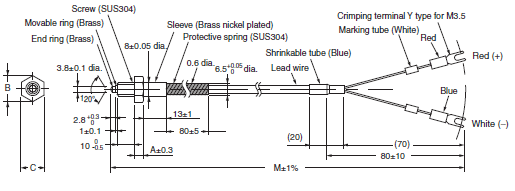

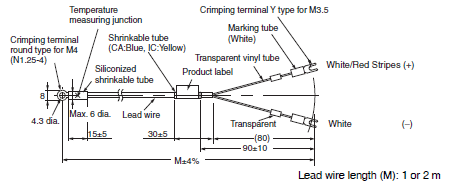

Thermocouples with Crimp Terminal
E52-CA1GTY, E52-IC1GTY
Platinum Resistance Thermometers

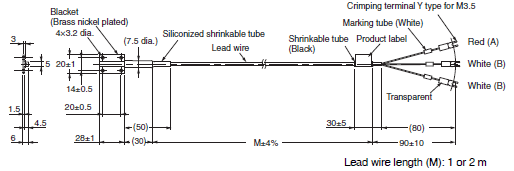

Platinum Resistance Thermometers for Surface Temperature Measurement
E52-P2GSY
Platinum Resistance Thermometers for Room Temperature Measurement
E52-P10GRY

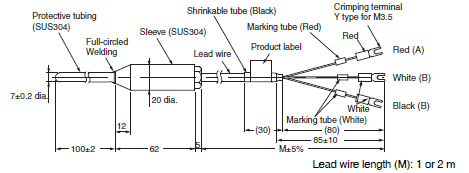

Waterproof Platinum Resistance Thermometers
E52-P10GPY
Note: The lead wires are vinyl-covered, and cannot be used underwater.
Use the E52-P5AY-40 if waterproof lead wires are required for use underwater.
Corrosion-resistant Models with Fluororesin-covered Protective Tubing

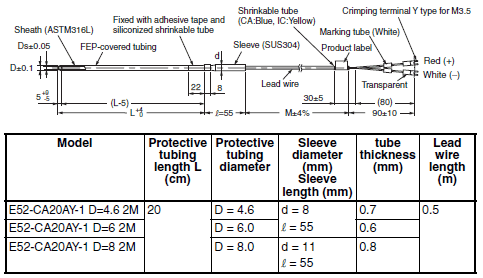

Thermocouples
Exposed-lead Models
E52-CA20AY-1

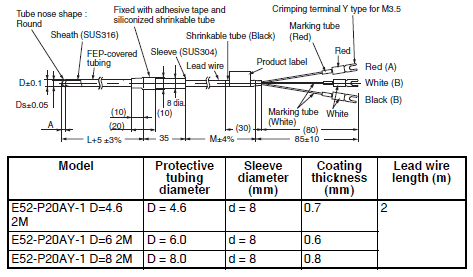

Platinum Measurement
Exposed-lead Models
E52-P20AY-1

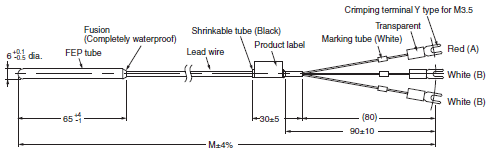

FEP-molded Models (Completely Waterproof)
E52-P5AY-40

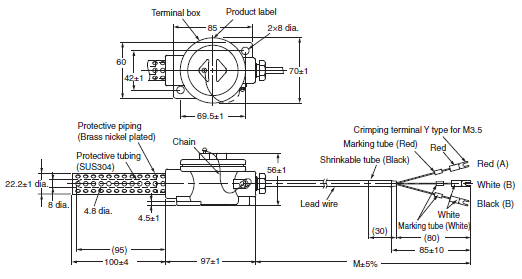

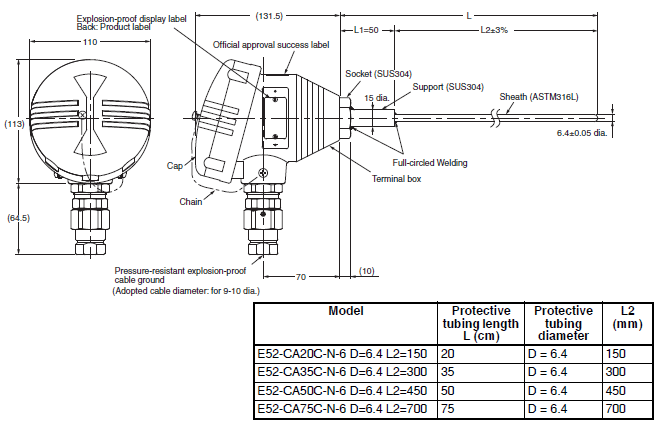

Pressure-resistant Explosion-proof (IICT6) Models
Thermocouples
Enclosed-terminal Models
E52-CA[][]C-N-6

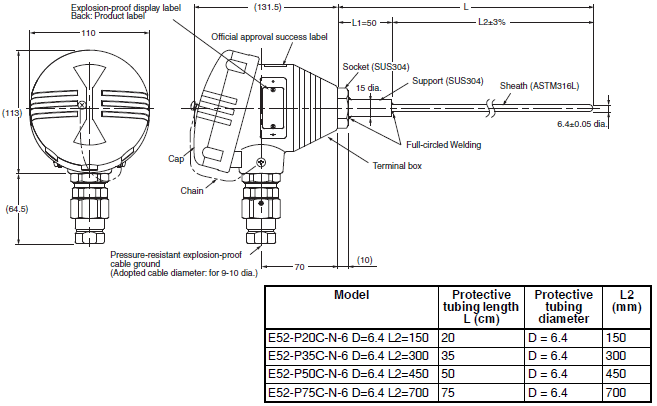

Platinum Resistance Thermometers for Surface Temperature Measurement
Enclosed-terminal Models
E52-P[][]C-N-6
Double-element Models

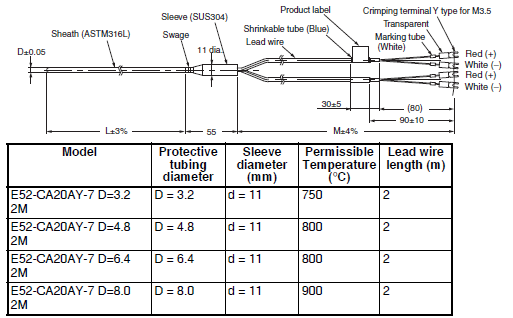

Thermocouple
Exposed-lead Models
E52-CA20AY-7

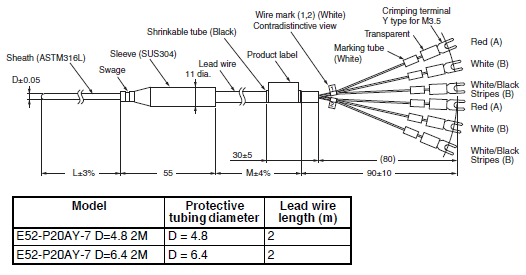

Platinum Resistance Thermometers
Exposed-lead Models
E52-P20AY-7

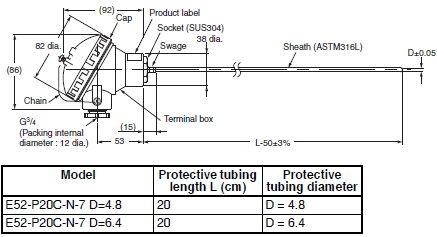

Enclosed-terminal Models
E52-P20C-N-7
Terminal for terminal connection Size: M4
Note: The length L is in centimeters, but “50” is 50 millimeters.
Therefore, for the E52-P20C-N-7: L = 20 (cm), the sheath length L - 50 = 200 - 50 = 150 mm.
