Inline PCB inspection system
last update: January 26, 2015

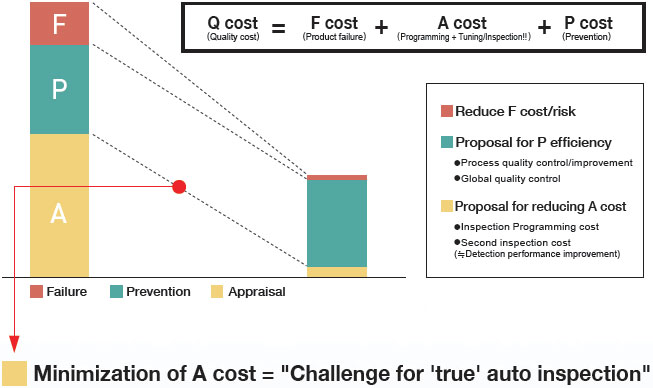

The system uses innovative technologies to greatly reduce "inspection costs," which has been a major issue in conventional AOI technologies.
Moreover, while harnessing quality improvement systems, it facilitates efficient "defect prevention" to contribute to the reduction of "the end customer failure costs."
Automatic extraction of "fillet features"

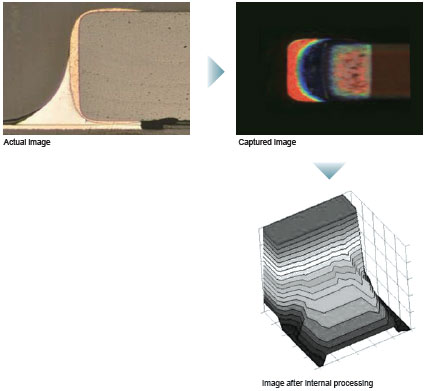

"The VT-S500 uses new image processing technology to automatically extract fillet features, which are quantified in numerical values and used for inspection."

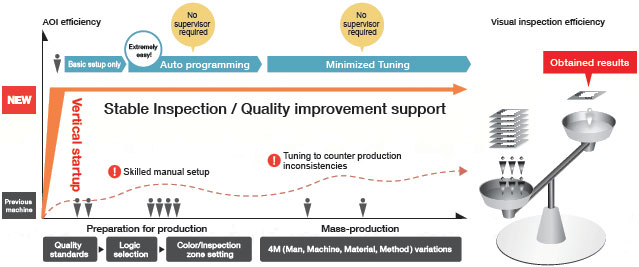

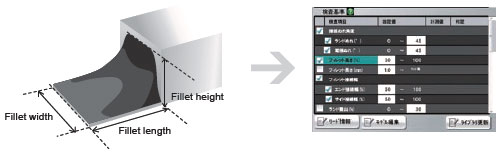

Automatic inspection programming is possible simply by setting inspection criteria for fillet features (length, height and width).
Higher-speed inspection has become possible to respond to a significant increase in productivity.
* Compared with the evaluation result of VT-RNS2 series. (Omron's PCB)
Dual lanes for reduced cycle time. Position of lanes can be selected according to the customer's production facility.
Parameters have been optimally set to pick up gradations unperceived by Human Eye and automatically separate good from bad components.

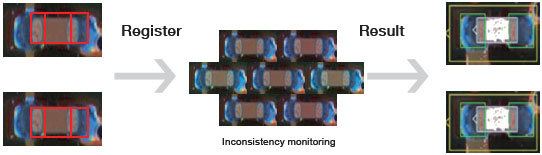

In order to cope with component inconsistencies, parameters can be automatically calculated - simply by registering required components.

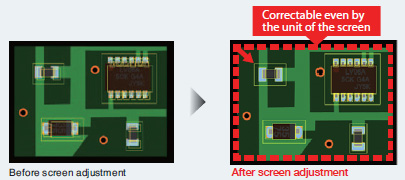

Inspection accuracy has been improved and it has become possible to inspect at the correct position using the new position adjustment method based on the entire screen instead of the conventional land-based adjustment.

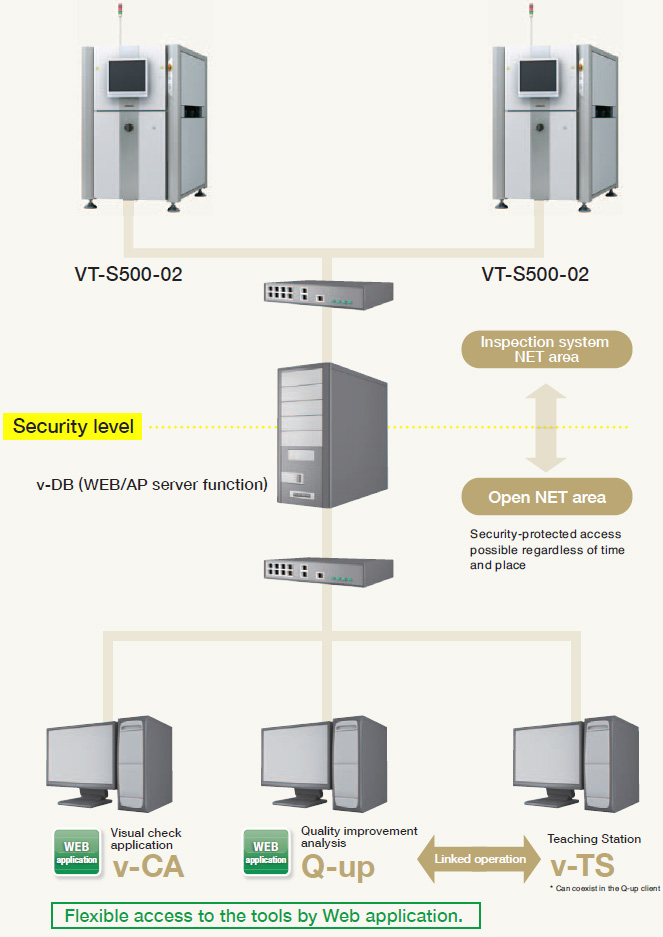

Different security levels can be assigned to the inspection system and its peripheral devices. The peripheral devices are connectable via an open network for location-free networking.
Visual check application
Inline Check

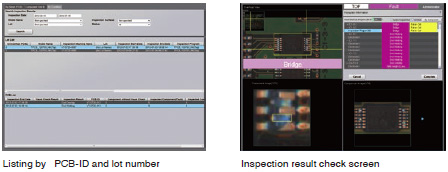

Inspection result can be obtained using production conditions such as PCB-ID and lot number as key words, facilitating visual check of defective locations.
Inspection result can be obtained using such as PCB-ID and lot number, facilitating visual check of defective locations.

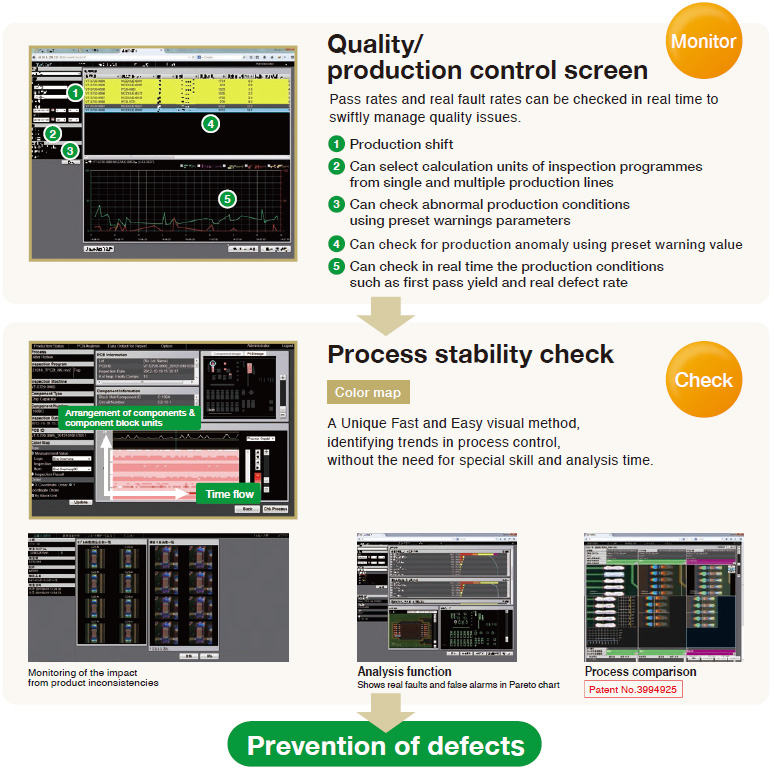

Monitoring of production status and quantification of defect causes/tendencies enable the acceleration of process improvement and process control cost reduction, while enhancing quality improvement support.
