HL-5000

General-purpose Limit Switch

HL-5000

Economical, Miniature Limit Switch Boasting Rigid Construction

Switches

(Dimensions not shown are the same as roller lever models.)

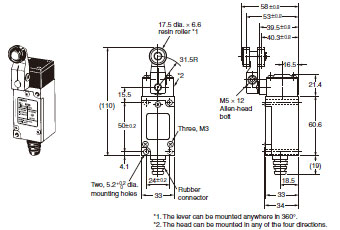

Roller Lever
HL-5000

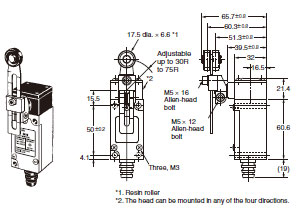

Adjustable Roller Lever
HL-5030

HL-5000 Dimensions 5 HL-5000_Dim
HL-5000 Dimensions 6 HL-5030_Dim

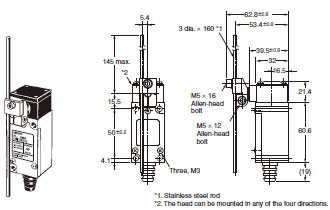

Adjustable Rod Lever
HL-5050

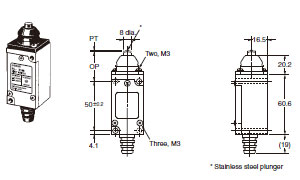

Sealed Plunger
HL-5100

HL-5000 Dimensions 10 HL-5050_Dim
HL-5000 Dimensions 11 HL-5100_Dim

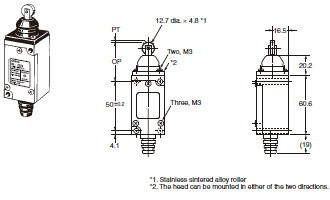

Sealed Roller Plunger
HL-5200

HL-5000 Dimensions 13 HL-5200_Dim

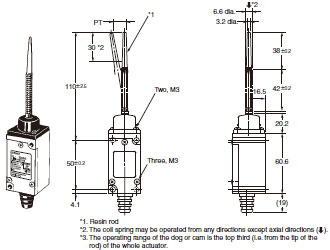

Coil Spring
HL-5300

HL-5000 Dimensions 15 HL-5300_Dim

Note:Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

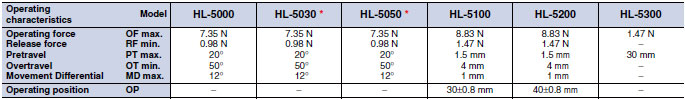

HL-5000 Dimensions 17 hl-5000_Operating characteristics1

Note:* Measured with the types of the 31.5-mm arm or rod length.

OF and RF measured at the arm length of 75 mm for HL-5030, and 145 mm for HL-5050 (reference values).

HL-5000 Dimensions 20 hl-5000_Operating characteristics2
