HL-5000

General-purpose Limit Switch

HL-5000

Economical, Miniature Limit Switch Boasting Rigid Construction

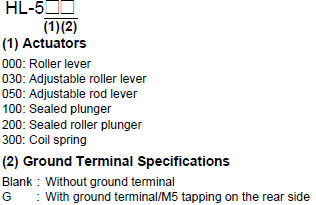

Model Number Structure

Model Number Legend

(Not all combinations are possible. Ask your OMRON representative for details.)

HL-5000 Lineup 3

Ordering Information

Actuator Model
Roller lever
HL-5000 *
Adjustable roller lever
HL-5030 *
Adjustable rod lever
HL-5050 *
Sealed plunger
HL-5100 *
Sealed roller plunger
HL-5200
Coil spring
HL-5300

* HL-5000 Limit Switches are offered with a choice of ground terminal/M5 tapping on the rear side conforming to various
  standards. When placing an order, add the code to the model number to indicate if ground terminal/M5 tapping on the
  rear side is required.
  -G: with ground terminal/M5 tapping on the rear side.
