F03-16PE / 16PT / 15 / 16PS

F03-16PE / 16PT / 15 / 16PS

Sensing Band/Liquid Leakage Point Sensor

F03-16PE / 16PT / 15 / 16PS

A New Liquid Leakage Point Sensor Has Been Added to the K7L Series. Fluoroplastic Coating on the Bottom Electrode Ensures Chemical Resistance.

last update: May 7, 2020

(Unit: mm)

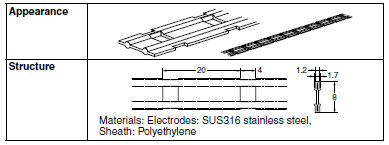

F03-16PE

Sensing Band

F03-16PE / 16PT / 15 / 16PS Dimensions 2

Sensing Band Stickers

F03-16PE / 16PT / 15 / 16PS Dimensions 3

Note: The shape of the adhesive tape shown above is for securing the F03-16PE.

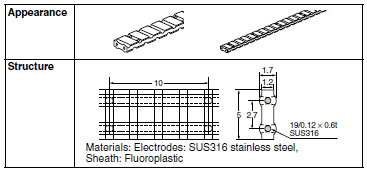

F03-16PT

Sensing Band

F03-16PE / 16PT / 15 / 16PS Dimensions 5

Sensing Band Stickers

F03-16PE / 16PT / 15 / 16PS Dimensions 6

Note: The shape of the adhesive tape shown above is for securing the F03-16PE.

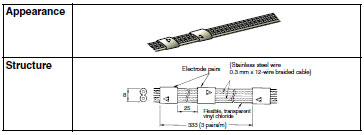

F03-15

Sensing Band

F03-16PE / 16PT / 15 / 16PS Dimensions 8

Sensing Band Stickers

F03-16PE / 16PT / 15 / 16PS Dimensions 9

last update: May 7, 2020
