Pushbutton Switch (Detachable) (Lighted/Non-Lighted) (Cylindrical 16-dia.)
last update: May 6, 2021
(Unit: mm)

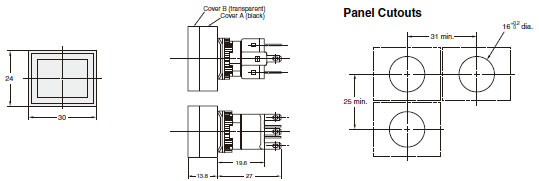

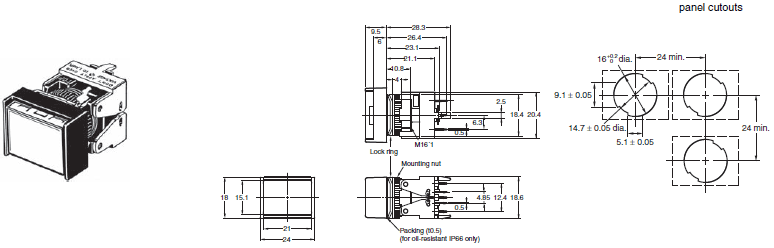

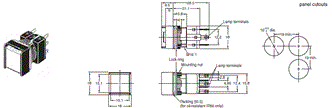

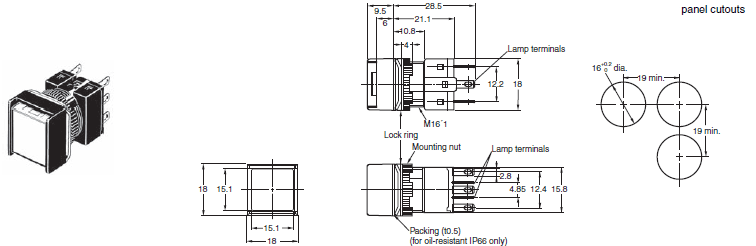

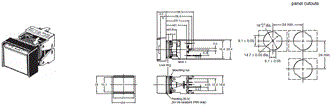

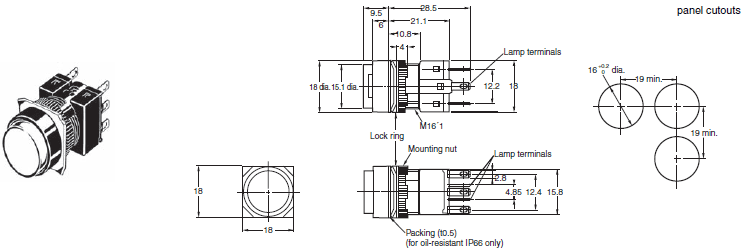

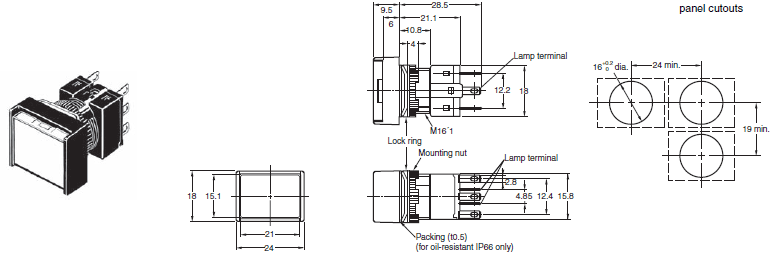

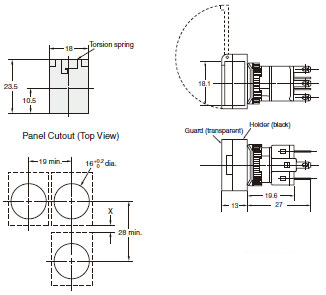

• The Dimension shows 2-switch outputs.
• The lamp terminal is also provided with non-lighted models.

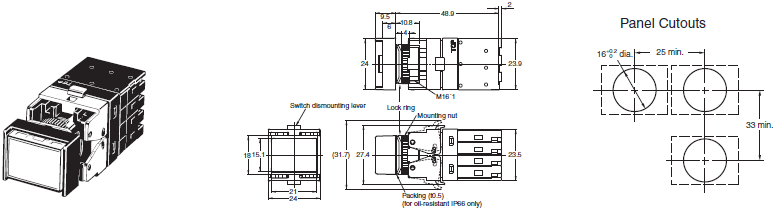

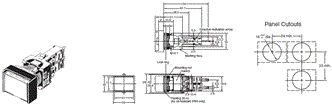

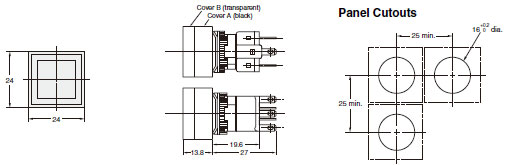

• The Dimension shows 2-switch outputs.
• The lamp terminal is also provided with non-lighted models.

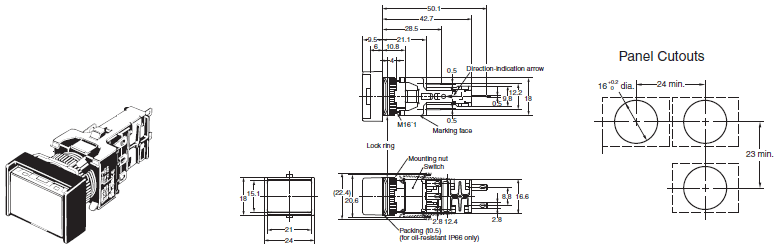

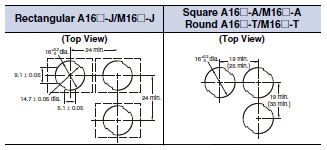

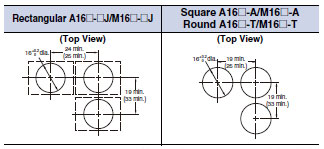

• A rectangular model is listed as an example.

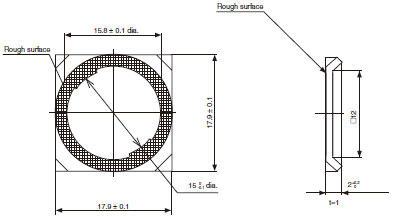

Note: The panel is 0.6 mm thick.

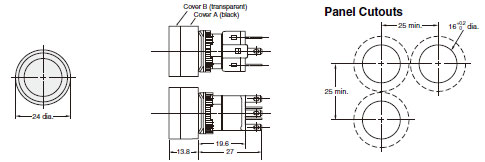

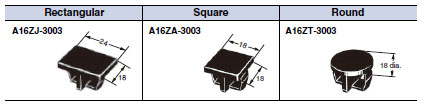

Select the Plug that fits the panel design and mount from the front of the Panel. Panel cutouts are the same as those for Switches.
Protective structure: IP40
Color: Black
