Industrial Automation
G3PW
Single-phase Power Controller
High-precision Control with Easy Setup
Related Contents
Application Solutions
last update: June 1, 2020

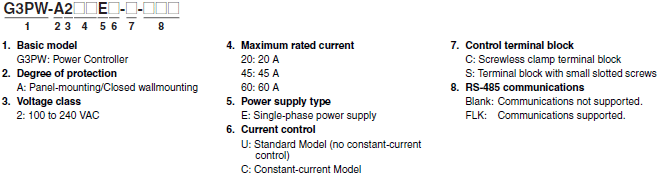

Model Number Structure
Model Number Legend
Ordering Information
List of Models
| Number of
phases |
Control
terminal block |
Type | Capacity | Heater
burnout detection |
Commu-
nications |
Model number | |
|---|---|---|---|---|---|---|---|
| Single-phase | Screwless clamp
terminal block |
Standard | 20 A | 100 to
240 VAC |
No | No | G3PW-A220EU-C |
| 45 A | G3PW-A245EU-C | ||||||
| 60 A | G3PW-A260EU-C | ||||||
| Constant
current |
20 A | Yes | Yes | G3PW-A220EC-C-FLK | |||
| 45 A | G3PW-A245EC-C-FLK | ||||||
| 60 A | G3PW-A260EC-C-FLK | ||||||
| Terminal block
with small slotted screws |
Standard | 20 A | No | No | G3PW-A220EU-S | ||
| 45 A | G3PW-A245EU-S | ||||||
| 60 A | G3PW-A260EU-S | ||||||
| Constant
current |
20 A | Yes | Yes | G3PW-A220EC-S-FLK | |||
| 45 A | G3PW-A245EC-S-FLK | ||||||
| 60 A | G3PW-A260EC-S-FLK | ||||||
Accessories (Order Separately)
| Name | Resistive value | Display | Model |
|---|---|---|---|
| External Variable Resistor | 2 kΩ | 202 | G32X-V2K |
last update: June 1, 2020
