H5CX
Digital Timer
DIN 48 × 48-mm Multifunction Digital Timer/2-stage Digital Timer
Related Contents
Application Solutions
last update: May 22, 2023

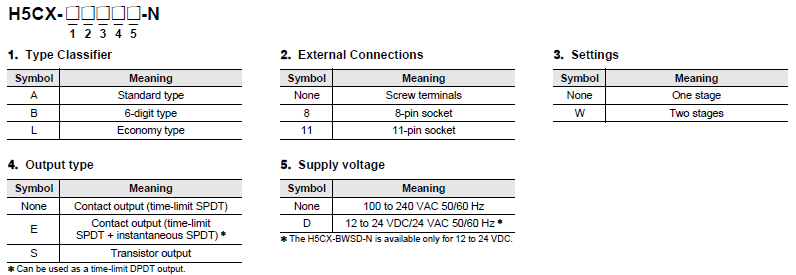

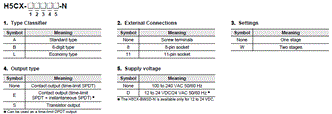

Model Number Legend (Not all possible combinations of functions are available.)
Note: Estimates can be provided for coatings and other specifications that are not given in the datasheet. Ask your OMRON representative for details.
Ordering Information
| Type | Time specifications | Operating modes |
External connec- tions |
Inputs | Outputs | Supply voltage | Models |
|---|---|---|---|---|---|---|---|
| H5CX-A | 0.001 to 9.999 s 0.01 to 99.99 s 0.1 to 999.9 s 1 to 9999 s 1 s to 99 min 59 s 0.1 to 999.9 min 1 to 9999 min 1 min to 99 h 59 min 0.1 to 999.9 h 1 to 9999 h |
Timer Mode A: Signal ON Delay I A-1: Signal ON Delay II A-2: Power ON Delay I A-3: Power ON Delay II b: Repeat cycle 1 b-1: Repeat cycle 2 d: Signal OFF Delay E: Interval F: Cumulative Z: ON/OFF-duty- adjustable flicker S: Stopwatch Twin Timer Mode toff: Flicker OFF Start 1 ton: Flicker ON Start 1 toff-1: Flicker OFF Start 2 ton-1: Flicker ON Start 2 |
Screw terminals |
Signal, Reset, Gate (NPN/ PNP inputs) |
Contact output (time-limit SPDT) |
100 to 240 VAC | H5CX-A-N |
| 12 to 24 VDC/ 24 VAC |
H5CX-AD-N | ||||||
| Transistor output (SPST) |
100 to 240 VAC | H5CX-AS-N | |||||
| 12 to 24 VDC/ 24 VAC |
H5CX-ASD-N | ||||||
| 11-pin socket |
Contact output (time-limit SPDT) |
100 to 240 VAC | H5CX-A11-N | ||||
| 12 to 24 VDC/ 24 VAC |
H5CX-A11D-N | ||||||
| Transistor output (SPST) |
100 to 240 VAC | H5CX-A11S-N | |||||
| 12 to 24 VDC/ 24 VAC |
H5CX-A11SD-N | ||||||
| H5CX-L | 8-pin socket |
Signal, Reset (NPN inputs) |
Contact output (time-limit SPDT) |
100 to 240 VAC | H5CX-L8-N | ||
| 12 to 24 VDC/ 24 VAC |
H5CX-L8D-N | ||||||
| Transistor output (SPST) |
100 to 240 VAC | H5CX-L8S-N | |||||
| 12 to 24 VDC/ 24 VAC |
H5CX-L8SD-N | ||||||
| Timer Mode A-2: Power ON Delay I b: Repeat cycle 1 E: Interval Z: ON/OFF-duty- adjustable flicker Twin Timer Mode toff: Flicker OFF Start 1 ton: Flicker ON Start 1 |
None | Contact output (time-limit SPDT + instantaneous SPDT) Models with instantaneous contact outputs |
100 to 240 VAC | H5CX-L8E-N | |||
| 12 to 24 VDC/ 24 VAC |
H5CX-L8ED-N | ||||||
| H5CX-B | 0.01 to 9999.99 s 1 s to 99 h 59 min 59 s 0.1 to 99999.9 min 0.1 to 99999.9 h |
A: Signal ON Delay I F-1: Cumulative |
Screw terminals |
Signal, Reset, Gate (NPN/ PNP inputs) |
Transistor output (DPST) |
12 to 24 VDC | H5CX-BWSD-N |
Note: 1. The functions that are provided depend on the model. Check detailed specifications before ordering.
2. Refer to Data Sheet and later for information on H5CX-B Timers (6-digit display).
2. Refer to Data Sheet and later for information on H5CX-B Timers (6-digit display).
Accessories (Order Separately)
Front Panels (Replacement Parts)
| Models | Color | Applicable Timers |
|---|---|---|
| Y92P-CXT4G | Light gray (5Y7/1) | Four-digit models |
| Y92P-CXT4S | White (5Y9.2 / 0.5) | |
| Y92P-CXT4B | Black (N1.5) |
Note: 1. You can change the color of the front panel when mounting the Timer. The Timer is shipped with a black (N1.5)
Front Panel.
2. "TIMER" is printed on the front of Replacement Front Panels.
Front Panel.
2. "TIMER" is printed on the front of Replacement Front Panels.
Soft Cover
| Models | Remarks |
|---|---|
| Y92A-48F1 | --- |
Hard Cover
| Models | Remarks |
|---|---|
| Y92A-48 | --- |
Flush Mounting Adapter
| Models | Remarks |
|---|---|
| Y92F-30 | Included with models with terminal blocks. |
| Y92F-45 | Use this Adapter to install the Timer in a cutout previously made for a DIN 72 x 72 mm device
(panel cutout: 68 x 68 mm). |
| Y92F-38 | Use for replacement of the 81-dia. hole device (H3AM). |
Waterproof Packing
| Models | Remarks |
|---|---|
| Y92S-29 | Included with models with terminal blocks. |
Connection Sockets
| Models | Type | Connectable Timers | Remarks |
|---|---|---|---|
| P2CF-08 | Front Connecting Socket | H5CX-L8[] | |
| P2CF-08-E | Front Connecting Socket
(Finger-safe Type) |
Round crimp terminals cannot be used on Finger-
safe Sockets. Use forked crimp terminals. |
|
| P2CF-11 | Front Connecting Socket | H5CX-A11[] | |
| P2CF-11-E | Front Connecting Socket
(Finger-safe Type) |
Round crimp terminals cannot be used on Finger-
safe Sockets. Use forked crimp terminals. |
|
| P3G-08 | Back Connecting Socket | H5CX-L8[] | A Y92A-48G Terminal Cover can be used with the
Socket to create a finger-safe construction. |
| P3GA-11 | H5CX-A11[] |
Terminal Covers for P3G-08 and P3GA-11 Back-connecting Sockets
| Models | Remarks |
|---|---|
| Y92A-48G | --- |
