ZE / ZV / ZV2 / XE / XV / XV2

Enclosed Switches

ZE / ZV / ZV2 / XE / XV / XV2

Long Service Life and Large Breaking Power

(Unit: mm)

Side Mounting Models

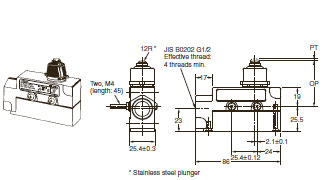

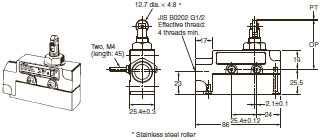

Plunger
ZE-Q-2
XE-Q-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 2

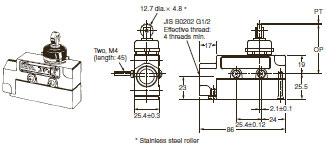

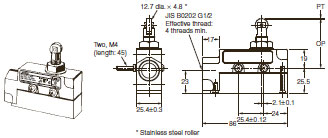

Roller Plunger
ZE-Q22-2
XE-Q22-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 3

Crossroller Plunger
ZE-Q21-2
XE-Q21-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 4

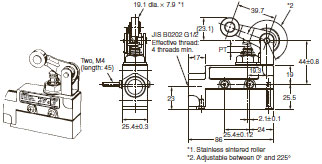

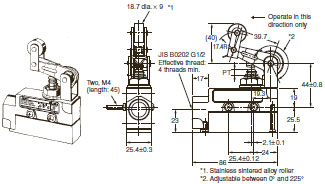

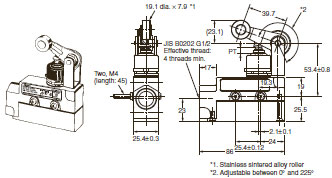

Roller Arm Lever
ZE-QA2-2
XE-QA2-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 5

Note: 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
           2. The diagrams shown the Switches with two, M4 screws (length: 45) attached. (The screws are provided.)

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 7

One-way Action Roller Arm Lever
ZE-QA277-2
XE-QA277-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 8

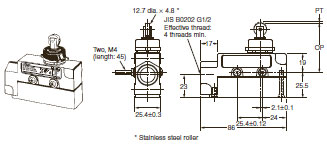

Sealed Plunger
ZE-N-2
XE-N-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 9

Sealed Roller Plunger
ZE-N22-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 10

Sealed Crossroller Plunger
ZE-N21-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 11

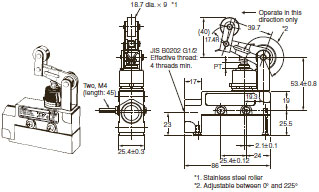

Sealed Roller Arm Lever
ZE-NA2-2
XE-NA2-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 12

One-way Action Sealed Roller Arm Lever
ZE-NA277-2
XE-NA277-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 13

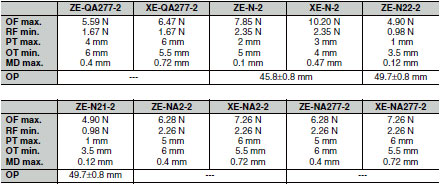

Note: 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
           2. The diagrams shown the Switches with two, M4 screws (length: 45) attached. (The screws are provided.)

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 15

Base Mounting/Diagonal Side Mounting Models

The diagrams show the base-mounted model (ZV-[] or XV-[]) on top and the diagonal side-mounted model (ZV2-[] or XV2-[]) on bottom.
The flange on base-mounted models is shown with dotted lines.

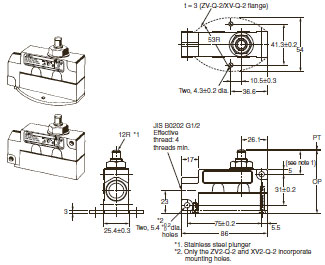

Plunger
ZV(2)-Q-2
XV(2)-Q-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 17

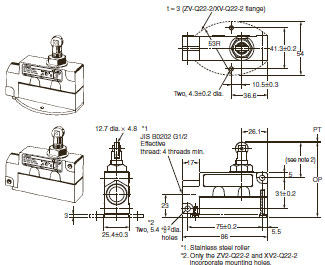

Roller Plunger
ZV(2)-Q22-2
XV(2)-Q22-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 18

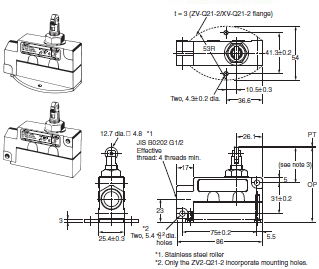

Crossroller Plunger
ZV(2)-Q21-2
XV-Q21-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 19

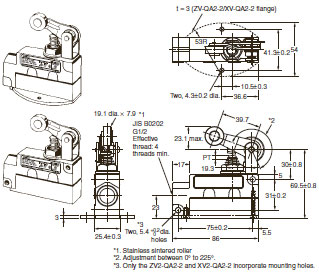

Roller Arm Lever
ZV(2)-QA2-2
XV(2)-QA2-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 20

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 22

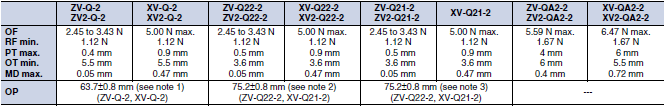

Note: 1. OP for ZV2-Q-2 and XV2-Q-2 is 24.2 ±0.8 mm.
           2. OP for ZV2-Q22-2 and XV2-Q22-2 is 35.7 ±1 mm.
           3. OP for ZV2-Q21-2 is 35.7 ±0.8 mm.

One-way Action Roller Arm Lever
ZV2-QA277-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 23

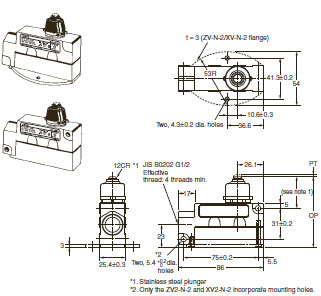

Sealed Plunger
ZV(2)-N-2
XV(2)-N-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 24

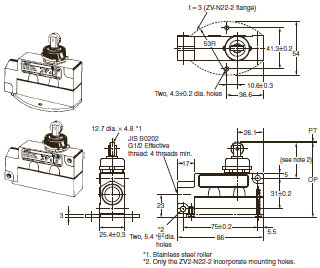

Sealed Roller Plunger
ZV(2)-N22-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 25

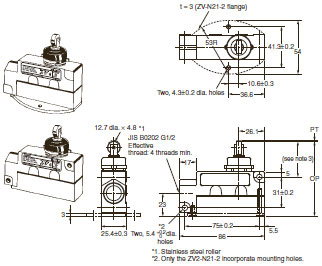

Sealed Crossroller Plunger
ZV(2)-N21-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 26

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 28

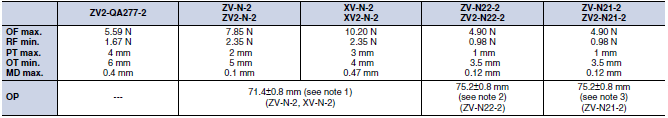

Note: 1. OP for ZV2-N-2 and XV2-N-2 is 31.9 ±0.8 mm.
           2. OP for ZV2-N22-2 is 35.7 ±0.8 mm.
           3. OP for ZV2-N21-2 is 35.7 ±0.8 mm.

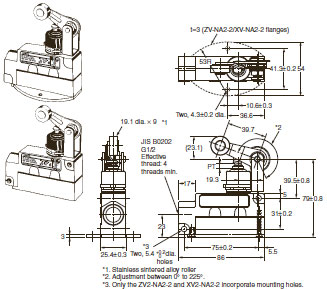

Sealed Roller Arm Lever
ZV(2)-NA2-2
XV(2)-NA2-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 29

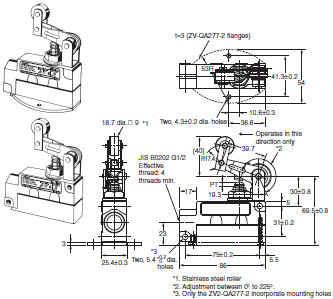

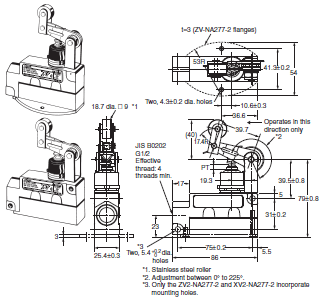

One-way Action Sealed Roller Arm Lever
ZV(2)-NA277-2
XV2-NA277-2

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 30

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

ZE / ZV / ZV2 / XE / XV / XV2 Dimensions 32
