MY-GS
Miniature Power Relays
Mechanical Indicators Added as a Standard Feature to Our Best-selling MY General-purpose Relays
Related Contents
Application Solutions
last update: October 1, 2024
Model Number Structure

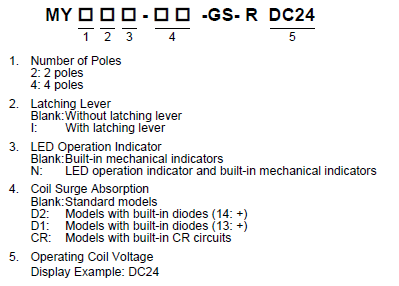

Model Number Legend
List of Models
Miniature Power Relays (MY-GS-R)
| Category | Number
of poles |
Contact
structure |
Plug-in (octal pins) terminals
 |
|||
|---|---|---|---|---|---|---|
| With operation indicator | ||||||
| With latching lever | ||||||
| Standard models | 2 | Single | MY2-GS-R | MY2N-GS-R | MY2IN-GS-R | |
| 4 | MY4-GS-R | MY4N-GS-R | MY4IN-GS-R | |||
| Models with built-in diodes
for coil surge absorption |
 |
2 | --- | MY2N-D2-GS-R | MY2IN-D2-GS-R | |
| 4 | --- | MY4N-D2-GS-R | MY4IN-D2-GS-R | |||
 |
2 | --- | MY2N-D1-GS-R | MY2IN-D1-GS-R | ||
| 4 | --- | MY4N-D1-GS-R | MY4IN-D1-GS-R | |||
| Models with built-in CR circuits
for coil surge absorption |
2 | --- | MY2N-CR-GS-R | MY2IN-CR-GS-R | ||
| 4 | --- | MY4N-CR-GS-R | MY4IN-CR-GS-R | |||
Ordering Information
Main unit
Standard model without operation indicator
| Number of poles | Model | Rated voltage (V) |
|---|---|---|
| 2 | MY2-GS-R | 12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC
6, 12, 24, 48, 100/110 VDC |
| 4 | MY4-GS-R | 12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC
6, 12, 24, 48, 100/110 VDC |
Standard model with operation indicator
| Number of poles | Model | Rated voltage (V) |
|---|---|---|
| 2 | MY2N-GS-R | 12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC
6, 12, 24, 48, 100/110, 220 VDC |
| 4 | MY4N-GS-R | 12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC
6, 12, 24, 48, 100/110, 220 VDC |
Standard model with operation indicator and latching lever
| Number of poles | Model | Rated voltage (V) |
|---|---|---|
| 2 | MY2IN-GS-R | 12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC
6, 12, 24, 48, 100/110, 220 VDC |
| 4 | MY4IN-GS-R | 12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC
6, 12, 24, 48, 100/110, 220 VDC |
Models with built-in diodes for coil surge absorption with operation indicator (14: +)
| Number of poles | Model | Rated voltage (V) |
|---|---|---|
| 2 | MY2N-D2-GS-R | 12, 24, 48, 100/110, 220 VDC |
| 4 | MY4N-D2-GS-R | 12, 24, 48, 100/110, 220 VDC |
Models with built-in diodes for coil surge absorption with operation indicator (13: +)
| Number of poles | Model | Rated voltage (V) |
|---|---|---|
| 2 | MY2N-D1-GS-R | 12, 24, 48, 100/110 VDC |
| 4 | MY4N-D1-GS-R | 12, 24, 48, 100/110 VDC |
Models with built-in diodes for coil surge absorption with operation indicator and latching lever (14: +)
| Number of poles | Model | Rated voltage (V) |
|---|---|---|
| 2 | MY2IN-D2-GS-R | 12, 24, 48, 100/110, 220 VDC |
| 4 | MY4IN-D2-GS-R | 12, 24, 48, 100/110, 220 VDC |
Models with built-in diodes for coil surge absorption with operation indicator and latching lever (13: +)
| Number of poles | Model | Rated voltage (V) |
|---|---|---|
| 2 | MY2IN-D1-GS-R | 12, 24, 48, 100/110 VDC |
| 4 | MY4IN-D1-GS-R | 12, 24, 48, 100/110 VDC |
Models with built-in CR circuits for coil surge absorption with operation indicator
| Number of poles | Model | Rated voltage (V) |
|---|---|---|
| 2 | MY2N-CR-GS-R | 100/110, 110/120, 200/220, 220/240 VAC |
| 4 | MY4N-CR-GS-R | 100/110, 110/120, 200/220, 220/240 VAC |
Models with built-in CR circuits for coil surge absorption with operation indicator and latching lever
| Number of poles | Model | Rated voltage (V) |
|---|---|---|
| 2 | MY2IN-CR-GS-R | 100/110, 110/120, 200/220, 220/240 VAC |
| 4 | MY4IN-CR-GS-R | 100/110, 110/120, 200/220, 220/240 VAC |
Common Options (Order Separately)
Ordering Information
Front-mounting Sockets
| Number
of Pins |
Applicable
Relay Model |
Terminal Type | Mounting Method | Appearance | Model | Hold-down
Clips |
|---|---|---|---|---|---|---|
| 8 | MY2[]-GS-R | Screw terminal
Finger protection structure *1 (Screw size M3) |
DIN Track or screw
mounting |
 |
PYFZ-08-E | PYC-A1 *3 |
| Screw terminal
Finger protection structure *1 (Screw size M3) |
DIN Track or screw
mounting |
 |
PYF08A-N | PYC-A1 *3 | ||
| Push-In Plus Terminal
(Integrated Socket with release lever) |
DIN Track or screw
mounting *2 |
 |
PYF-08-PU | --- | ||
| 14 | MY4[]-GS-R | Screw terminal
Finger protection structure *1 (Screw size M3) |
DIN Track or screw
mounting |
 |
PYFZ-14-E | PYC-A1 *3 |
| Screw terminal
Finger protection structure *1 (Screw size M3) |
DIN Track or screw
mounting |
 |
PYF14A-N | PYC-A1 *3 | ||
| Push-In Plus Terminal
(Integrated Socket with release lever) |
DIN Track or screw
mounting *2 |
 |
PYF-14-PU | --- |
*1. In the finger protection type (PYFZ-[]-E, and PYF[]A-N), the terminal cover is integrated into the Socket.
Round terminals cannot be used.
Use forked terminals or ferrules instead.
*2. There are screw mounting holes in the DIN hooks on the PYF-[][]-PU. Pull out the DIN hook tabs to mount the Sockets
with screws.
*3. Model number of the applicable Mounting Bracket. Sold in sets of two.
Round terminals cannot be used.
Use forked terminals or ferrules instead.
*2. There are screw mounting holes in the DIN hooks on the PYF-[][]-PU. Pull out the DIN hook tabs to mount the Sockets
with screws.
*3. Model number of the applicable Mounting Bracket. Sold in sets of two.
Back-mounting Sockets
| Number of Pins | Applicable Relay Model | Terminal Type | Appearance | Model | Hold-down Clips |
|---|---|---|---|---|---|
| 8 | MY2[]-GS-R | PCB terminals |  |
PY08-02 | PYC-P *1 |
| 14 | MY4[]-GS-R | PCB terminals |  |
PY14-02 |
*1. If an MY[]IN Relay with a Latching Lever is used in combination with a PY@-02 Socket for Relays with PCB Terminals and a PYC-P Mounting Bracket, the lever will not operate.
Socket accessories
Mounting Bracket
| Appearance *1 | Model | Weight *2 | Application |
|---|---|---|---|
 |
PYC-A1 | Approx. 0.54 g | For joining the Socket and Relay |
 |
PYC-P | Approx. 1.4 g | For joining the Socket and Relay |
*1. Describes the appearance when the Relay, Socket, and Mounting Bracket have been combined together.
*2. The PYC-A1 includes two Mounting Brackets in one set. The weight specified above is the weight of one Mounting
Bracket.
*2. The PYC-A1 includes two Mounting Brackets in one set. The weight specified above is the weight of one Mounting
Bracket.
