Industrial Automation
A22NN / A22NL
Pushbutton Switches
22-mm dia. Pushbutton Switches. Control panel miniaturization through a more compact design and modified wiring direction. Addition of Push-In Plus terminal blocks for easy wiring.
Related Contents
Application Solutions
last update: April 3, 2023
(Unit: mm)
Lighted and Non-lighted Pushbutton Switches
Flat Switches with Plastic Bezels
A22NN-BN[]-N[]A-G[]-NN
A22NN-BN[]-N[]A-P[]-NN
A22NL-BN[]-T[]A-G[]-[][]
A22NL-BN[]-T[]A-P[]-[][]
Projected Switches with Plastic Bezels
A22N[]-BP[]-[]A-G[]-[][]
A22N[]-BP[]-[]A-P[]-[][]
Full-guard Switches with Plastic Bezels
A22N[]-BG[]-[]A-G[]-[][]
A22N[]-BG[]-[]A-P[]-[][]
Mushroom Switches with Plastic Bezels
A22N[]-BM[]-[]A-G[]-[][]
A22N[]-BM[]-[]A-P[]-[][]
Flat Switches with Brushed Metal Bezels
A22NN-MN[]-N[]A-G[]-NN
A22NN-MN[]-N[]A-P[]-NN
A22NL-MN[]-T[]A-G[]-[][]
A22NL-MN[]-T[]A-P[]-[][]
Projected Switches with Brushed Metal Bezels
A22N[]-MP[]-[]A-G[]-[][]
A22N[]-MP[]-[]A-P[]-[][]
Full-guard Switches with Brushed Metal Bezels
A22N[]-MG[]-[]A-G[]-[][]
A22N[]-MG[]-[]A-P[]-[][]
Mushroom Switches with Brushed Metal Bezels
A22N[]-MM[]-[]A-G[]-[][]
A22N[]-MM[]-[]A-P[]-[][]
Depth with Linked Units
(Screw terminal block type)
Depth when a double-contact unit is mounted
(Push-In Plus terminal block type)
Subassemblies (Common)
LED Lamps
A22NZ-L-[][]
Mounting Collar
A22NZ-H-01
Screw terminal block
Contact Blocks
A22NZ-S-G1[]
Lighting Units
A22NZ-T-[]
Push-In Plus Terminal Blocks
Contact Blocks (Single Contact)
A22NZ-S-P1[]
Contact Blocks (Double Contact)
A22NZ-S-P2[]
Lighting Units
A22NZ-T-[]P
Accessories and Tools
Protective Cover
A22NZ-A303
Plastic Hole Plug
A22NZ-A-401
Metal Hole Plug
A22NZ-A-402
Lock Ring
A22NZ-A-403
Lock Ring
A22NZ-A-50501
Reinforcement Plate
A22NZ-A-C01

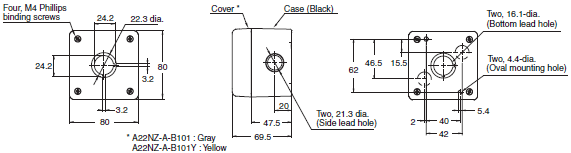

Control Box
A22NZ-A-B101
A22NZ-A-B101Y

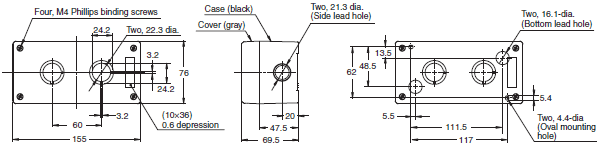

Control Box (2 holes)
A22NZ-A-B102

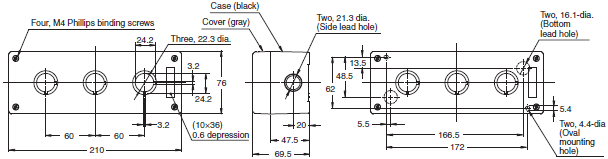

Control Box (3 holes)
A22NZ-A-B103

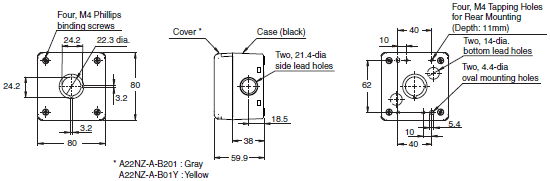

Control Box
A22NZ-A-B201
A22NZ-A-B01Y

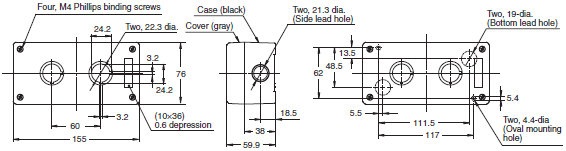

Control Box (2 holes)
A22NZ-A-B202

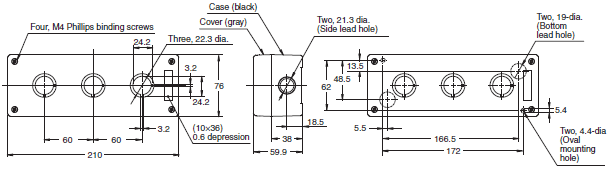

Control Box (3 holes)
A22NZ-A-B203
Sealing cap
For Flat Models A22Z-3600F
For projection models A22Z-3600T
For full-guard models A22Z-3600G
Resin Attachment for 30 dia.
A22Z-A30
Legend Plate Frames
General A22NZ-A-50103
Large A22NZ-A-51103
Legend Plates
General A22Z-3443[]-[]
Large A22Z-3453[]
Tightening Wrench
A22NZ-A-301
LED Lamp Extractor
A22NZ-A-302
Cap Tightening Wrench
A22Z-3908
last update: April 3, 2023
