E52 with Ferrule (Low-cost Models)

Temperature Sensor with Ferrule (Low-cost Models)

E52 with Ferrule (Low-cost Models)

Low-cost platinum resistance thermometers, Low-cost thermocouples

last update: February 8, 2018

(Unit: mm)

Low-cost Platinum Resistance Thermometers

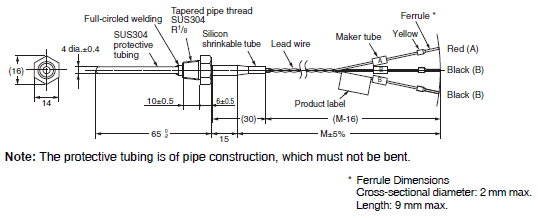

Exposed-lead Models with Screws

E52-P6DF

E52 with Ferrule (Low-cost Models) Dimensions 3

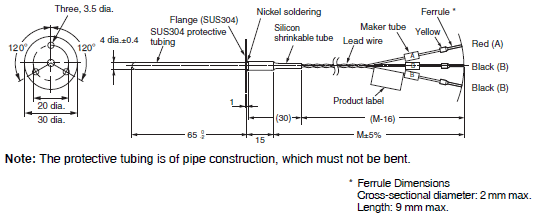

Exposed-lead Models with Flange

E52-P6FF

E52 with Ferrule (Low-cost Models) Dimensions 5

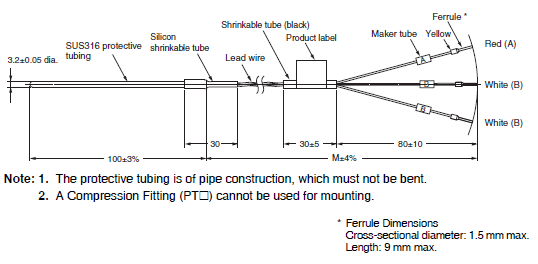

Exposed-lead Models

E52-P10AEF

E52 with Ferrule (Low-cost Models) Dimensions 7

Low-cost Thermocouples

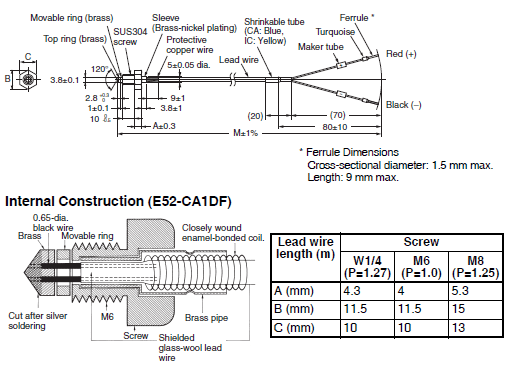

Exposed-lead Models with Screw

E52-CA1DF

E52 with Ferrule (Low-cost Models) Dimensions 10

last update: February 8, 2018
