NY5[][]-1

Industrial PC Platform NY-series IPC Machine Controller

NY5[][]-1

The future will be IT driven, we make you part of it

(Unit: mm)

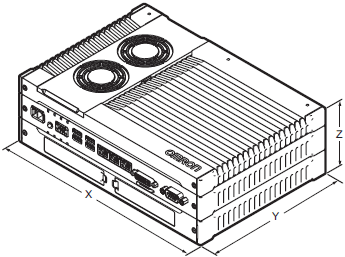

Industrial Box PC type

NY5[][]-1 Dimensions 1
NY5[][]-1 Dimensions 2

Bracket Specifications

The metal mounting brackets mount your Industrial Box PC and they are the connection for the functional ground.
Use metal screws with a diameter of 4 mm or 5 mm to mount the brackets.

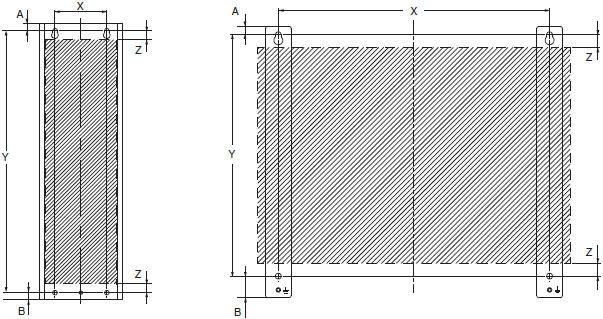

Mounting screw locations for book mount and wall mount orientation:

NY5[][]-1 Dimensions 3
NY5[][]-1 Dimensions 4

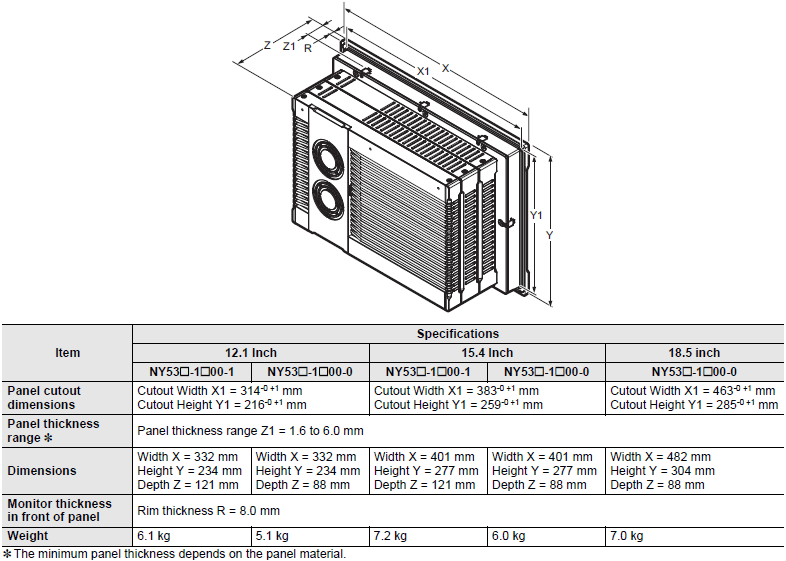

Industrial Panel PC type

NY5[][]-1 Dimensions 5

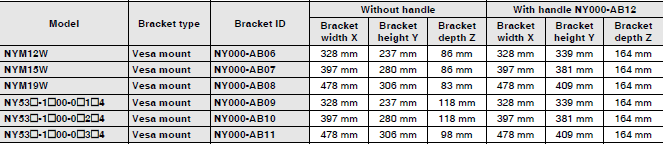

Bracket Specifications

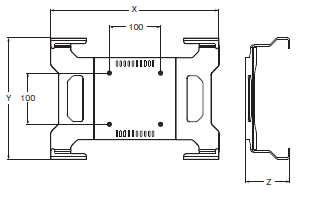

Without handle

NY5[][]-1 Dimensions 7

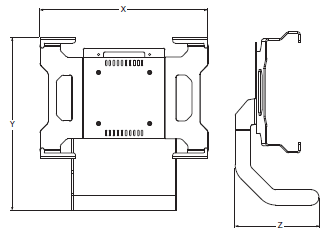

With handle NY000-AB12

NY5[][]-1 Dimensions 8
NY5[][]-1 Dimensions 9
