CK3M-CPU1[]1
Programmable Multi-Axis Controller CK3M-series CPU Unit
![CK3M-CPU1[]1](/Images/l_3725-22-285099-198x198.jpg)
Multi-axis control with a fastest servo cycle time of 50 μs/5 axes enables precision machining
Related Contents
Application Solutions
last update: May 24, 2021
(Unit: mm)

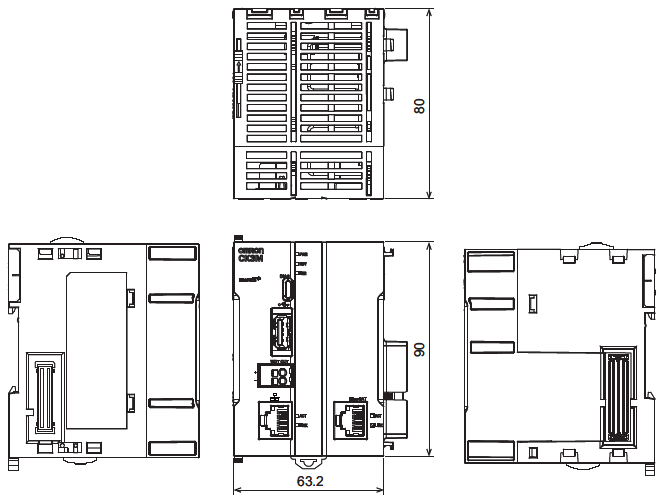

CPU Unit
![CK3M-CPU1[]1 Dimensions 1](/Images/3725_dm_122-285497.gif)

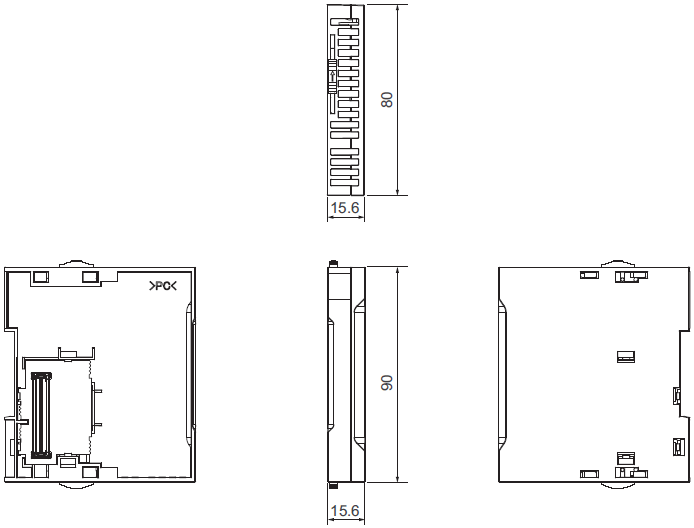

End Cover
![CK3M-CPU1[]1 Dimensions 2](/Images/3725_dm_622-293549.gif)
Power Supply Unit
![CK3M-CPU1[]1 Dimensions 3](/Images/3725_dm_722-293552.gif)

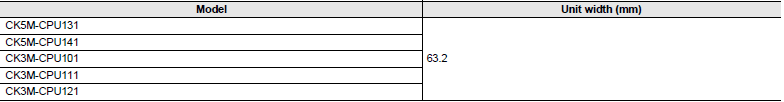

CPU Unit
![CK3M-CPU1[]1 Dimensions 4](/Images/3725_dm_222-285498.gif)
End Cover
![CK3M-CPU1[]1 Dimensions 5](/Images/3725_dm_322-285499.gif)

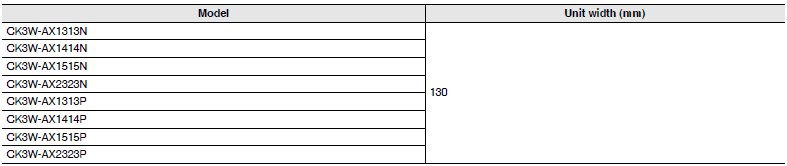

Axis Interface Unit
![CK3M-CPU1[]1 Dimensions 6](/Images/3725_dm_822-293551.gif)
Digital I/O Unit, Analog Input Unit, Expansion Master Unit, and Expansion Slave Unit
![CK3M-CPU1[]1 Dimensions 7](/Images/3725_dm_922-293550.gif)
Encoder Input Unit / Laser Interface Unit
![CK3M-CPU1[]1 Dimensions 8](/Images/3725_dm_1022-305442.gif)
Design Example for Width W

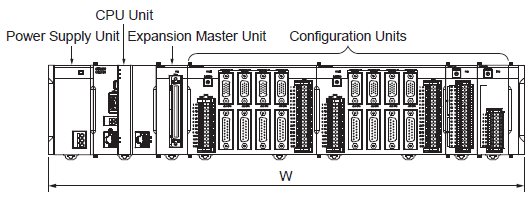

![CK3M-CPU1[]1 Dimensions 9](/Images/3725_dm_422-285500.gif)

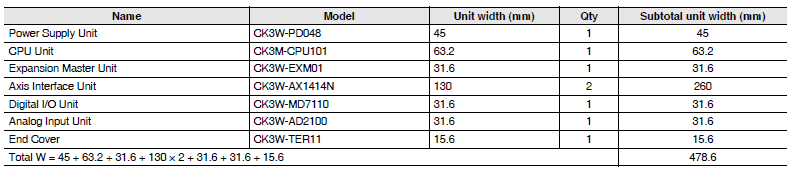

![CK3M-CPU1[]1 Dimensions 10](/Images/3725_dm_522-285501.gif)
