R89F-M

AC Free Input Axial Fans

R89F-M

Reducing required design work through unified power supply voltage

(Unit: mm)

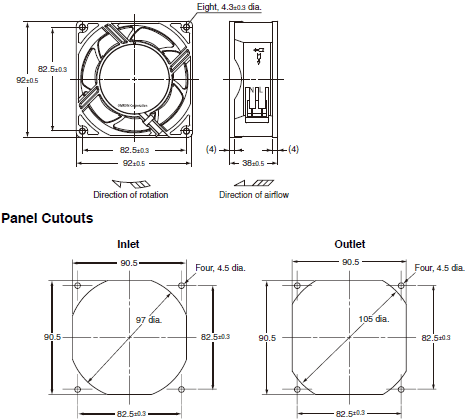

R89F-MS0938[] AC Free Input Axial Fans (92 × 92 × t38 mm)

R89F-M Dimensions 1

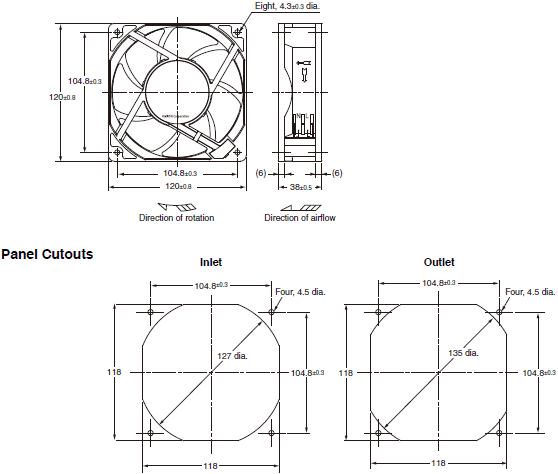

R89F-MS1238[] AC Free Input Axial Fans (120 × 120 × t38 mm)

R89F-M Dimensions 2

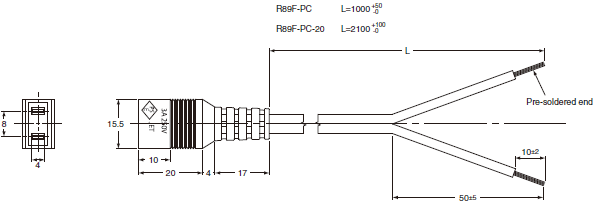

R89F-PC Plug Cord

R89F-PC

R89F-M Dimensions 4

Note: This Plug Cord is used for Axial Fans with terminals.

R87F-FG Finger Guards

Material: steel, Joints: spot welded, Surface: nickel-chrome plated

R87F-FG150

R89F-M Dimensions 6

R87F-FG120

R89F-M Dimensions 7

R87F-FG90

R89F-M Dimensions 8

R87F-FG80

R89F-M Dimensions 9

R87F-FL Filters

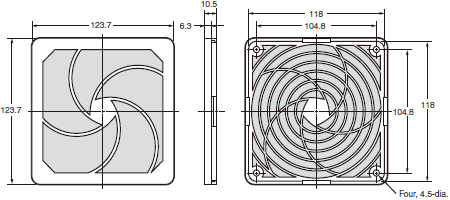

R87F-FL120

R89F-M Dimensions 11

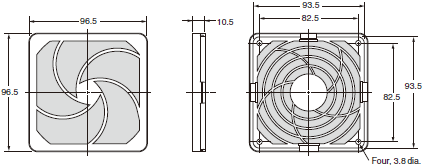

R87F-FL90

R89F-M Dimensions 12

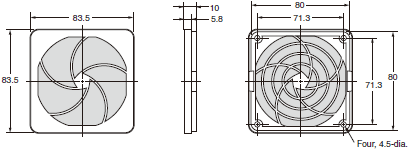

R87F-FL80

R89F-M Dimensions 13

R87F-FL120S

R89F-M Dimensions 14

Note: 1. The Screen Filter is made using aluminium and has an EMI/RFI shielding effect.
         2. When mounting the Screen Filter, make sure that it does not come in contact with the fan blades.
         3. The screen is a 30 × 30 aluminum mesh.
             (30 aluminum wires per inch)
