R89F-D
DC Axial Fans
Reducing required design work through unified power supply voltage
Related Contents
Application Solutions
last update: September 2, 2019
(Unit: mm)

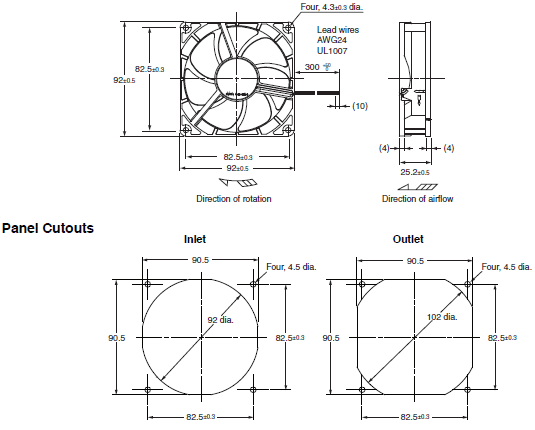

R89F-DS0925[] DC Axial Fans (92 × 92 × t25 mm)

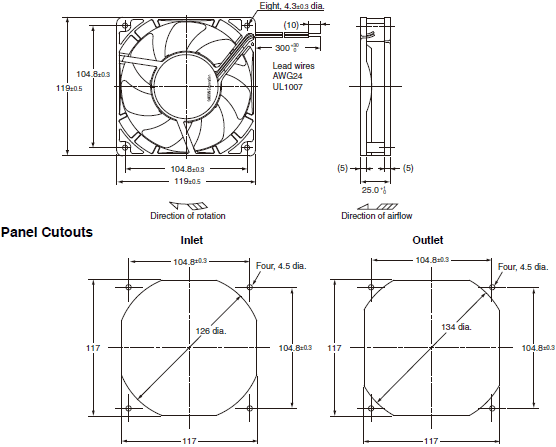

R89F-DS1225[] DC Axial Fans (120 × 120 × t25 mm)

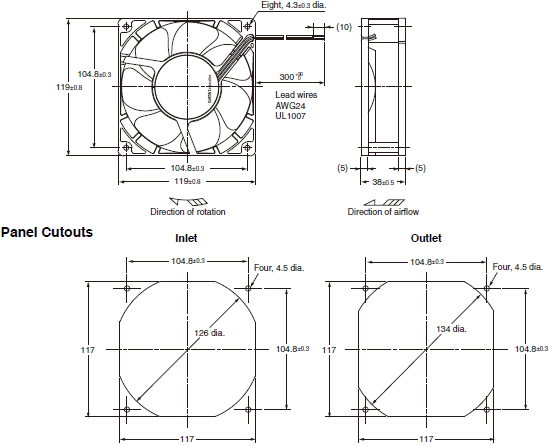

R89F-DS1238[] DC Axial Fans (120 × 120 × t38 mm)
R87F-FG Finger Guards
Material: steel, Joints: spot welded, Surface: nickel-chrome plated
R87F-FG150
R87F-FG120
R87F-FG90
R87F-FG80
R87F-FL Filters

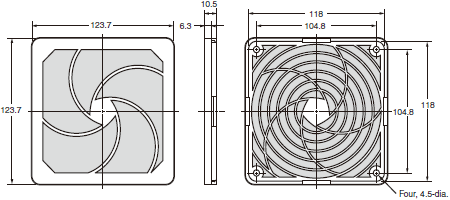

R87F-FL120

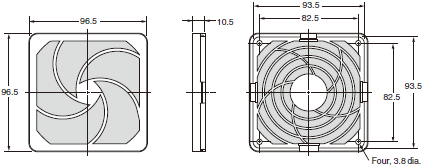

R87F-FL90

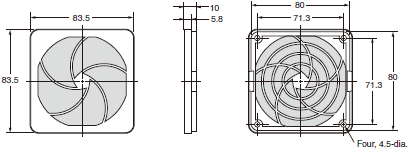

R87F-FL80
R87F-FL120S
Note: 1. The Screen Filter is made using aluminium and has an EMI/RFI shielding effect.
2. When mounting the Screen Filter, make sure that it does not come in contact with the fan blades.
3. The screen is a 30 × 30 aluminum mesh.
(30 aluminum wires per inch)
2. When mounting the Screen Filter, make sure that it does not come in contact with the fan blades.
3. The screen is a 30 × 30 aluminum mesh.
(30 aluminum wires per inch)
