S8V-CP

DC Electronic Circuit Protector (24 VDC 4 Outputs/8 Outputs Type)

S8V-CP

Simplified safety design of DC circuits Reliable DC circuit protection in the event of short circuits or overcurrent Saves space even with multi-channels Sequential start-up of outputs to avoid start-up trouble

Features
Lineup
Specifications
Dimensions
Catalog / Manual / CAD / Software

last update: October 1, 2019

(Unit: mm)

Unit

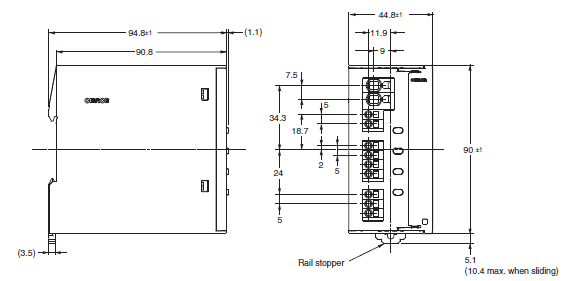

S8V-CP0424

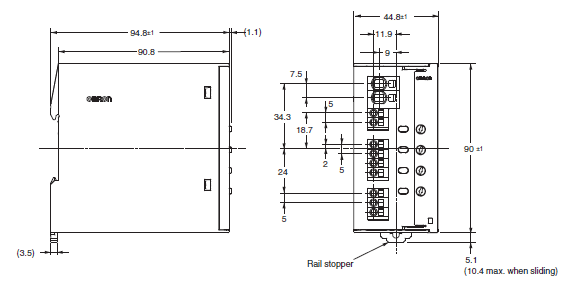

S8V-CP0424S

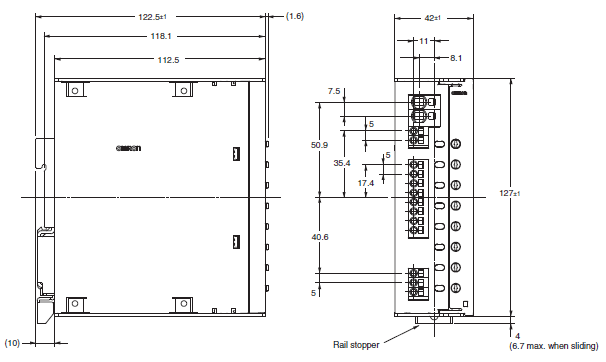

S8V-CP0824

DIN Rail Mounting (Order Separately)

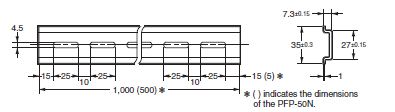

Mounting Rail (Material: Aluminum)

PFP-100N
PFP-50N

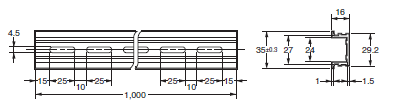

Mounting Rail (Material: Aluminum)

PFP-100N2

End Plate

PFP-M

Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic filings may result from aluminum abrasion.

last update: October 1, 2019
