K7TM

Heater Condition Monitoring Device

K7TM

Predictive maintenance by monitoring heater condition

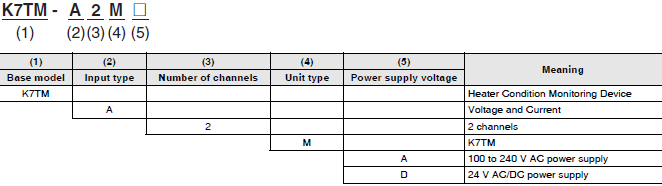

Model Number Structure

Model Number Legend

K7TM Lineup 2

Ordering Information

K7TM

Power supply voltage Model
100 to 240 V AC K7TM-A2MA
24 V AC/DC K7TM-A2MD

CT (Order Separately)

Rated primary-side current Model Model compliant with UL certification
5 A K6CM-CICB005 K6CM-CICB005-C
25 A K6CM-CICB025 K6CM-CICB025-C
100 A K6CM-CICB100 K6CM-CICB100-C
200 A K6CM-CICB200 K6CM-CICB200-C
400 A K6CM-CICB400 K6CM-CICB400-C
600 A K6CM-CICB600 ---

Note: 1. A cable for connection is provided with the CT.
         2. K7TM devices are UL-certified when used as a set with a CT model with “-C” at the end. Select a CT with “-C” at
             the end of the model name if UL certification is required for equipment.
         3. The CT input terminals of the K7TM can be connected in either direction of the special CT regardless of polarity.

Accessories (Order Separately)

DIN Tracks Model
3855_lu_4_1 PFP-100N
PFP-50N

End Plate Model
3855_lu_5_1 PFP-M
