E3C

Compact Head Amplifier-separated Photoelectric Sensor

E3C

Thin, Compact Head Saves Space and Mounts Closely. Built-in Interference Protection Provided.

last update: June 10, 2024

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

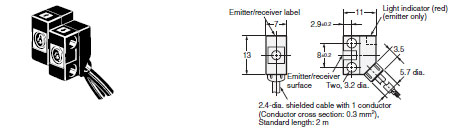

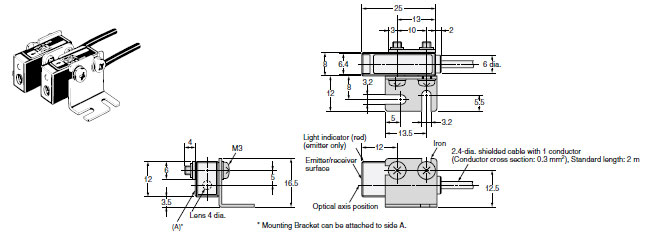

Emitter: E3C-S10
Receiver: E3C-S10D

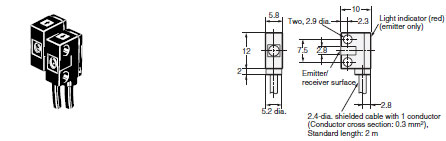

Emitter: E3C-S50L
Receiver: E3C-S50D

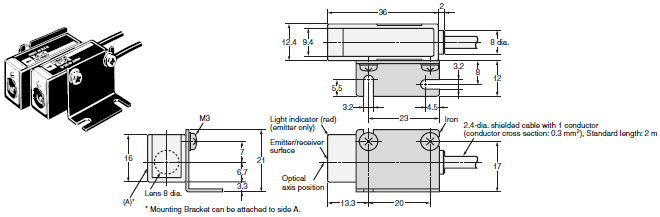

Emitter: E3C-1L
Receiver: E3C-1D

Emitter: E3C-2L
Receiver: E3C-2D

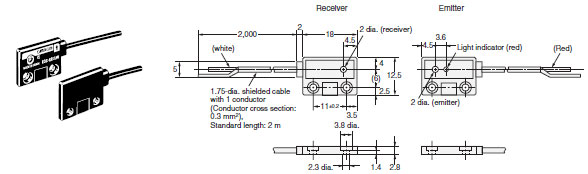

Emitter: E3C-S20LW
Receiver: E3C-S20DW

Emitter: E3C-S30LW
Receiver: E3C-S30DW

Emitter: E3C-S30LT
Receiver: E3C-S30DT
