Limit Touch Switch
Object Actuates Switch and Turns Built-in Monitor Indicator ON
* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.
Related Contents
last update: November 6, 2012
(Unit: mm)
Built-in Antenna Models

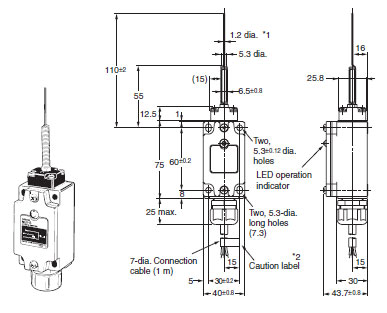

Coil Spring
NL1-C
NL2-C
NL3-C
*1. The coil spring antenna is movable in any direction. Make sure that the angle of the antenna is within 30° to the FP
(free position) after the antenna comes into contact with the object.
*2. Use after removing the caution label.
Note: 1. The force that pushes the actuator must not exceed 1.96 N.
2. The antenna is replaceable. Contact your OMRON representative for details.
(free position) after the antenna comes into contact with the object.
*2. Use after removing the caution label.
Note: 1. The force that pushes the actuator must not exceed 1.96 N.
2. The antenna is replaceable. Contact your OMRON representative for details.

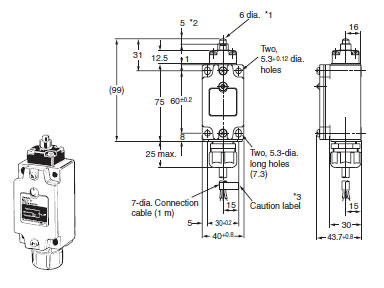

Plunger
NL1-P
NL2-P
NL3-P
*1. The stainless-steel plunger antenna allows a maximum OT (overtravel) of 5 mm.
*2. This position is the FP (free position) of the plunger.
*3. Use after removing the caution label.
Note: Do not apply a force greater than 9.8 N to the plunger.
Separated Antenna Models
The dimensions provided for the NL1-SP, NL2-SP, NL1-SC, and NL2-SC are the external dimensions for the antennas. The casing dimensions of these models are all the same as those for the coil spring or plunger models.

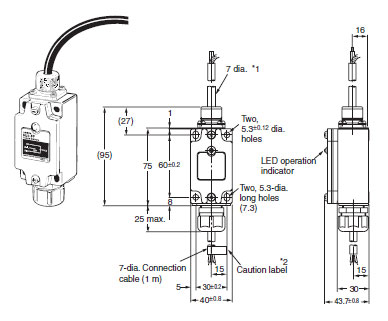

No Antenna
NL1-S
NL2-S
*1. A standard 3-m high-frequency coaxial cable is provided.
*2. Use after removing the caution label.
Note: 1. Make sure that the shape of the antenna is suitable to the application.
Use the plunger antenna or coil spring antenna as shown right for the NL1-S or NL2-S.
2. Do not cut or extend the connecting cable.
*2. Use after removing the caution label.
Note: 1. Make sure that the shape of the antenna is suitable to the application.
Use the plunger antenna or coil spring antenna as shown right for the NL1-S or NL2-S.
2. Do not cut or extend the connecting cable.

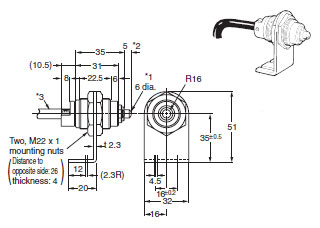

Plunger Antenna
NL1-SP
NL2-SP
*1. The stainless-steel plunger antenna allows a maximum OT (overtravel) of 5 mm.
*2. This position is the FP (free position) of the plunger.
*3. A standard 3-m high-frequency coaxial cable is provided.
Note: 1. Do not apply a force greater than 9.8 N to the plunger.
2. Do not cut or extend the connecting cable.
*2. This position is the FP (free position) of the plunger.
*3. A standard 3-m high-frequency coaxial cable is provided.
Note: 1. Do not apply a force greater than 9.8 N to the plunger.
2. Do not cut or extend the connecting cable.

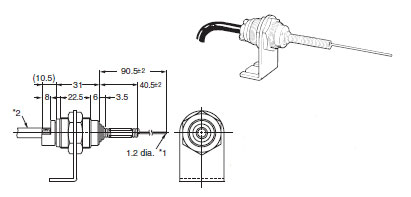

Coil Spring Antenna
NL1-SC
NL2-SC
*1. The coil spring antenna is movable in any direction. Make sure that the angle of the antenna is within 30° to the FP
(free position) after the antenna comes into contact with the object.
*2. A standard 3-m high-frequency coaxial cable is provided.
Note: 1. Do not cut or extend the connecting cable.
2. The antenna is replaceable. Contact your OMRON representative for details.
(free position) after the antenna comes into contact with the object.
*2. A standard 3-m high-frequency coaxial cable is provided.
Note: 1. Do not cut or extend the connecting cable.
2. The antenna is replaceable. Contact your OMRON representative for details.
Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
last update: November 6, 2012
