E2MP

Valve Sensors

E2MP

Detect Whether a Valve Is Open or Closed by Mounting Directly on an Actuator

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

(Unit: mm)

E2MP-C Series
(for shafts with a 30-mm diameter)

E2MP Dimensions 1

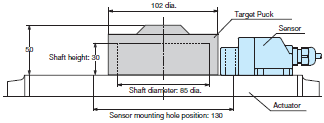

E2MP-S Series
(for shafts with 35 to 85 mm diameter)

E2MP Dimensions 2

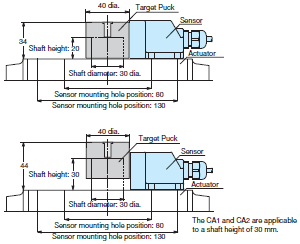

E2MP-C Series

E2MP-CA1, CA3

E2MP Dimensions 4

E2MP-CA2

E2MP Dimensions 5

E2MP-S Series

E2MP-SA1

E2MP Dimensions 7

E2MP-SA2

E2MP Dimensions 8

E2MP-SA3

E2MP Dimensions 9

Sensor mounting: M5 screws, Target Puck: M6 screws
