E3Z-[]-IL[]

IO-Link Photoelectric Sensor

E3Z-[]-IL[]

IO-Link Makes Sensor Level Information Visible and Solves the Three Major Issues at Manufacturing Sites! Standard Photoelectric Sensor.

(Unit: mm)

Sensors

Through-beam Models *

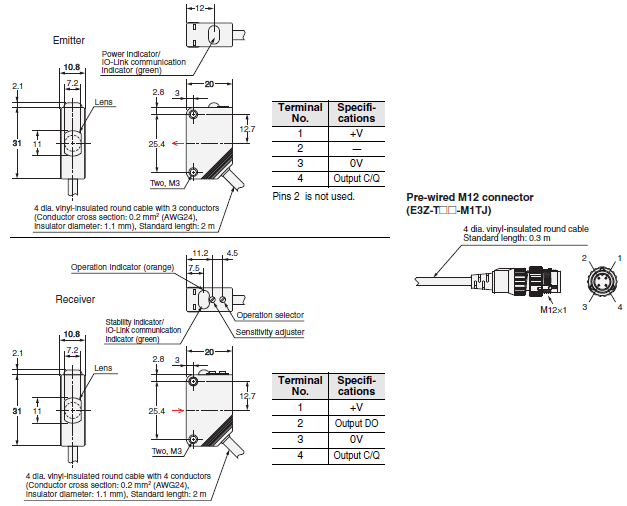

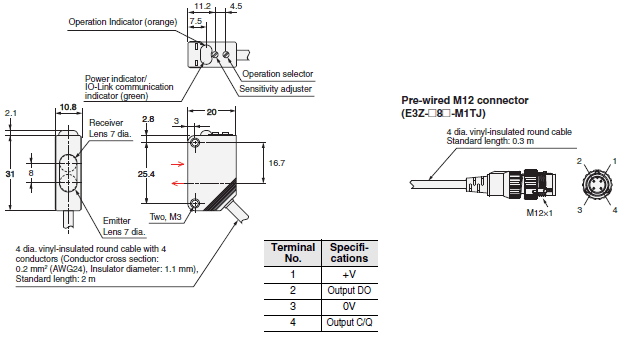

Pre-wired Models

E3Z-T81-IL[]

E3Z-[]-IL[] Dimensions 3

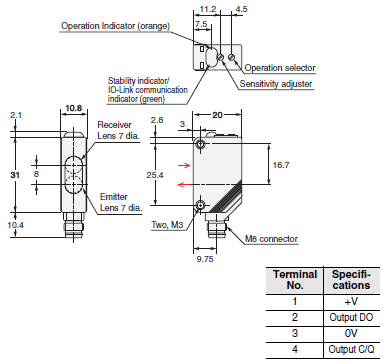

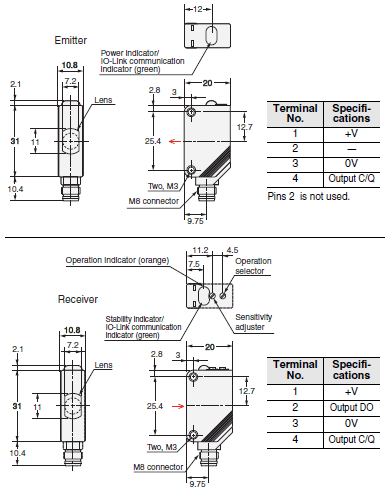

Connector Models

E3Z-T86-IL[]

E3Z-[]-IL[] Dimensions 4

* Models numbers for Through-beam Sensors (E3Z-T[][]) are for sets that include both the Emitter and Receiver.
   The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3Z-T81-IL[]-L 2M),
   the model number of the Receiver, by adding "-D" (example: E3Z-T81-IL[]-D 2M.) Refer to Ordering Information to
   confirm model numbers for Emitter and Receivers.

Retro-reflective Models

Pre-wired Models

E3Z-R81-IL[]
E3Z-D82-IL[]
E3Z-L81-IL[]

E3Z-[]-IL[] Dimensions 7

Connector Models

E3Z-R86-IL[]
E3Z-D87-IL[]
E3Z-L86-IL[]

E3Z-[]-IL[] Dimensions 8

Note: The lens for the E3Z-D[]2/D[]7 is black.

Accessories (Order Separately)

Slits

E39-S65A
E39-S65B
E39-S65C

E3Z-[]-IL[] Dimensions 12

E39-S65D
E39-S65E
E39-S65F

E3Z-[]-IL[] Dimensions 13

Mounting Bracket

E39-L44

E3Z-[]-IL[] Dimensions 15

E39-L104

E3Z-[]-IL[] Dimensions 16

Reflectors

Refer to E39-R on your OMRON website for details.

Sensor I/O Connectors

Refer to XS3 or XS5 on your OMRON website for details.
