E3NX-MA

Smart Fiber Amplifier Units

E3NX-MA

2-channel Amplifier reduces installation space by half. Downsized Equipment and Control Panels

last update: November 18, 2024

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

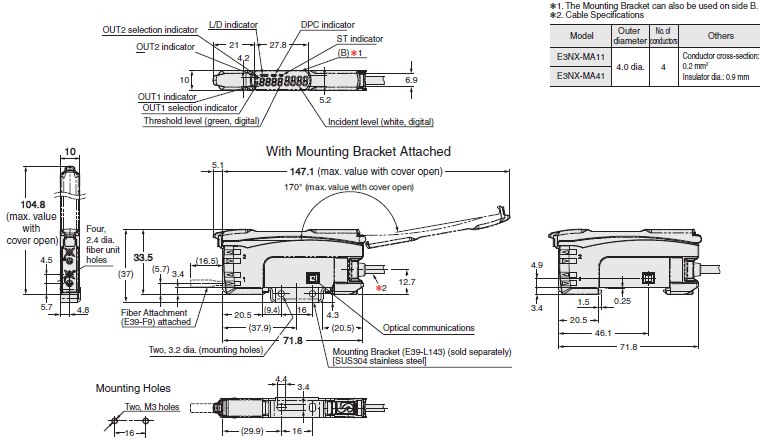

Pre-wired Amplifier Units
E3NX-MA11
E3NX-MA41

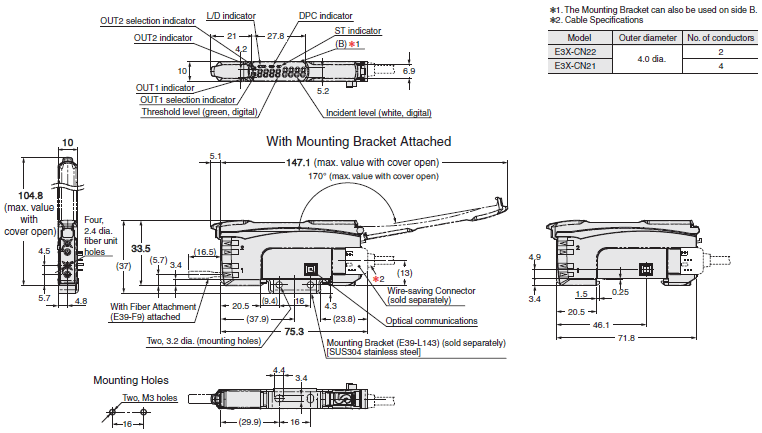

Amplifier Units with Wire-saving Connectors
E3NX-MA6
E3NX-MA8

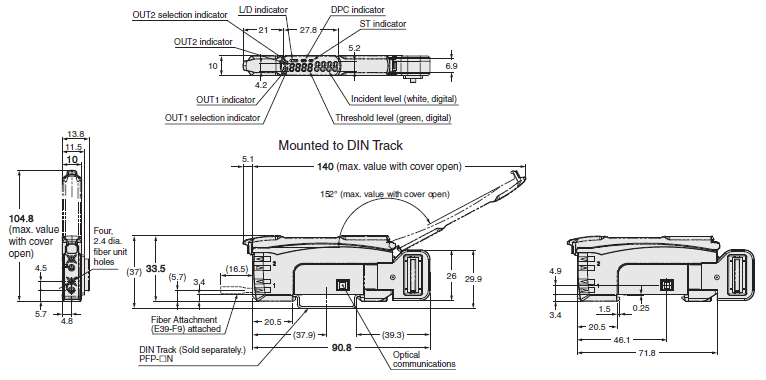

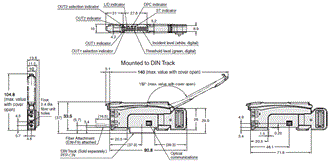

Amplifier Unit with Connector for
Sensor Communications Unit
E3NX-MA0

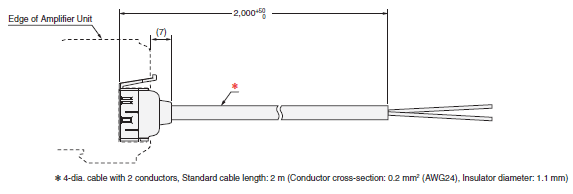

Master Connector
E3X-CN21

Slave Connector
E3X-CN22

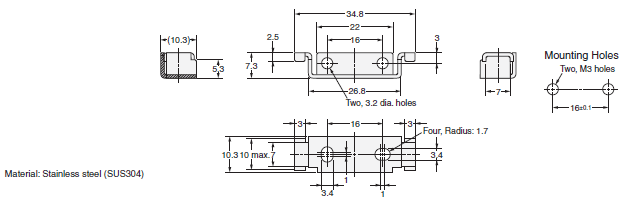

Mounting Bracket
E39-L143

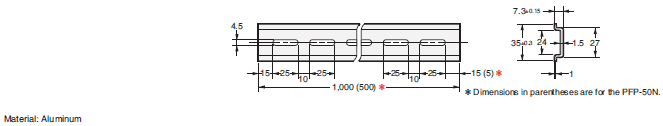

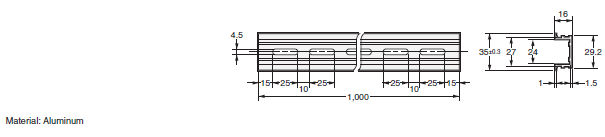

DIN Track
PFP-100N
PFP-50N

PFP-100N2

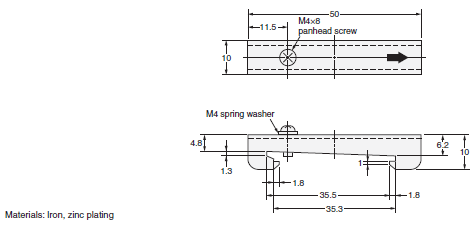

End Plate
PFP-M
